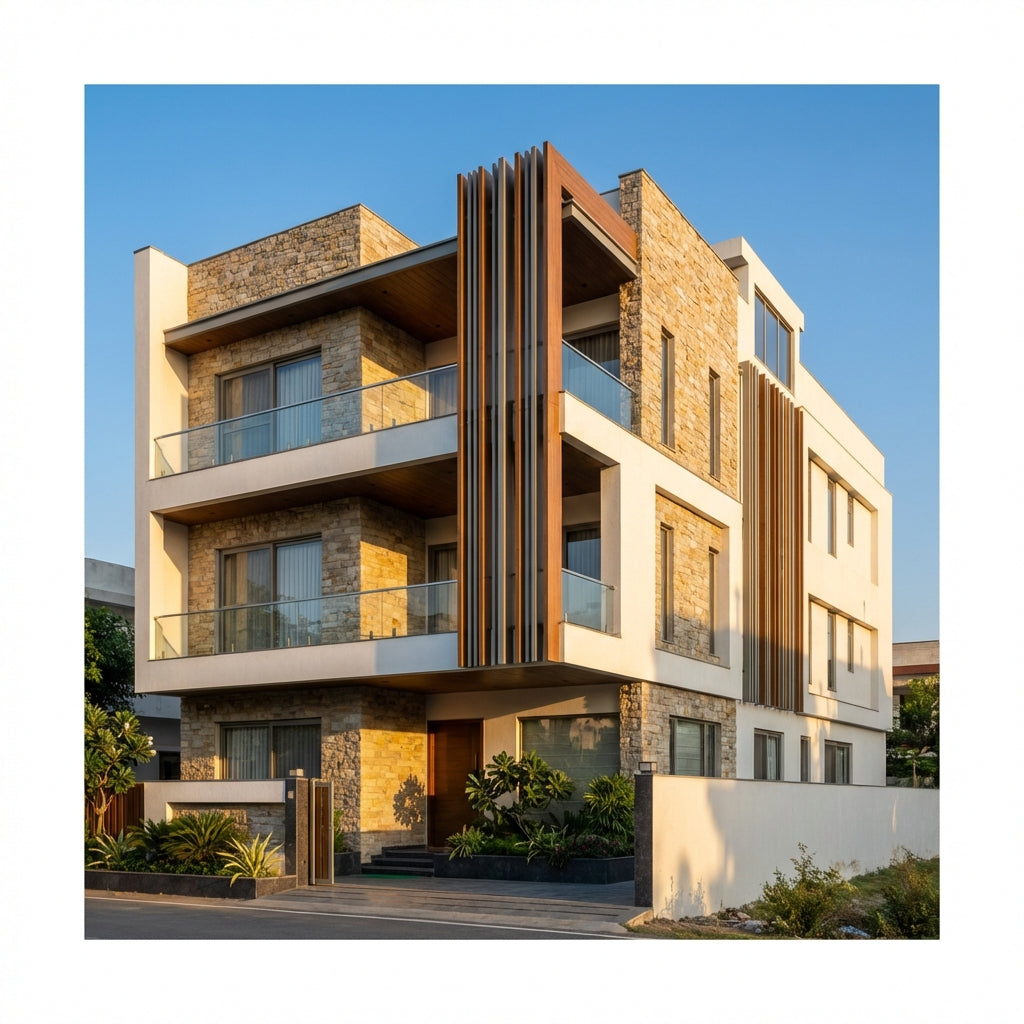

60x60 House Plan | 4 Floor East Facing Design
Ongrid's G+3 east facing design for a 3600 sq ft plot — structural precision meets thoughtful multi-floor living
Your 60x60 house plan is one of the most spacious residential configurations available in urban India. At 3600 sq ft of plot area, a G+3 (Ground + 3 Upper Floors) can accommodate three generations, two independent rental units, and a rooftop terrace — all under one address.
But a four-floor home is also one of the most technically demanding builds you will undertake. Every decision — from foundation depth to column sizing to staircase placement — carries consequences across all four levels. Get the engineering right, and your 60×60 G+3 stands for 100 years. Skip the technical groundwork, and you pay the price every monsoon season.
This article walks you through the structural logic, floor-by-floor layouts, vastu compliance, construction costs, and professional drawings that make a 60x60 house plan G+3 east facing perform as intended.
Why East Facing Is the Ideal Orientation for a G+3 Home
Morning sun penetrates east-facing living areas across all four floors — from ground floor porch to third floor terrace
East facing plots receive direct sunlight from sunrise until early afternoon. For a four-floor building, this means every east-side room — at every level — gets natural daylight during the most productive hours of the day.
Structural advantage: An east facing plan allows the main staircase to sit on the west or south side. This frees the entire east facade for balconies, full-height windows, and open living zones. The load-bearing spine runs north-south, which is structurally efficient on a 60-ft wide plot.
Thermal advantage: Morning sun warms the eastern face early. By afternoon, the structure has accumulated thermal mass. Prevailing westerly winds drive natural cross-ventilation from east to west across each floor. This reduces mechanical cooling dependency in transitional seasons — March, October, and November in most Indian cities.
Vastu advantage: East is governed by Indra, the deity of prosperity and new beginnings. A main door facing east or north-east on a G+3 home channels positive energy through the full vertical axis of the structure. Read more about vastu-aligned home layouts.
The Structural Blueprint: Engineering a 60×60 G+3 Home
A G+3 home is not four single-floor homes stacked on top of each other. It is a unified structural system — and designing it correctly requires thinking about all four floors simultaneously, from ground up.
Foundation and Soil Bearing Capacity
For a G+3 structure on a 3600 sq ft plot, a reinforced concrete isolated footing or raft foundation is standard practice. Foundation depth typically ranges from 1.2 to 1.8 metres below ground level, depending on soil bearing capacity.
A structural engineer's soil bore test is mandatory before you finalise the sub-structure design. With four floors of cumulative load, each column base transfers 3–4× more force than in a single-floor design. The bore test determines the exact depth and footing type your site requires.
Column and Beam Grid
A 60×60 plot allows a generous column grid. Columns are typically placed at 12–15 ft centres. That gives 4–5 columns along each axis, forming a 16–25 column network across the full plan.
Column dimensions at ground level are typically 12×18 inches or 12×24 inches, tapering to 9×12 inches by the third floor. Reinforcement steel ratios decrease with height, calculated per IS:456. Main beams span between columns at 12×18 inches deep. Secondary beams run at 9×12 inches. Reinforced concrete slabs are 125–150mm thick at every floor level.
Seismic Zone Compliance
Most Indian cities fall in Seismic Zone II, III, or IV. IS:1893 (Earthquake Resistant Design Criteria) applies to all G+3 residential structures. This influences column reinforcement detailing, beam-column joint design, and — in high-seismic zones — shear wall placement.
Ongrid prepares all structural drawings in compliance with current BIS codes. If your site is in Seismic Zone III or IV, ensure your structural engineer provides zone-specific detailing before drawings are finalised. Book a consultation with a COA-certified Ongrid architect to review your site requirements upfront.
Floor-by-Floor Layout for Your 60x60 House Plan
A well-designed 60x60 house plan allocates each floor a distinct function. Here is the room-by-room breakdown for a G+3 east facing home.
Ground Floor — Public Zone and Parking
Ground floor layout: double parking, living room, dining, kitchen, guest bedroom, and north-east puja room
The ground floor serves as the primary public and service level of the home.
Typical room programme:
- Double garage: 20×20 ft. Accommodates two cars with full manoeuvring space.
- Entrance porch and lobby: 8×10 ft, east facing. Morning light fills the entry zone naturally.
- Living room: 16×18 ft, east zone with full-height windows.
- Dining area: 12×14 ft, open to kitchen.
- Modular kitchen: 10×14 ft, south-east zone (vastu-compliant). Utility and washing area attached.
- Puja / prayer room: 8×8 ft, north-east corner. Elevated platform, east window for natural morning light.
- Guest bedroom: 12×14 ft with attached 5×8 ft bathroom.
- Main staircase + service staircase: Both positioned on the west side.
With a 60-ft wide east frontage, the main entrance door sits comfortably in the north-east quadrant — the most vastu-auspicious position. A 8×12 ft covered porch creates a transition zone between street and interior.
First Floor — Primary Family Living
First floor layout: master suite with walk-in wardrobe, east-facing family lounge, and two secondary bedrooms
The first floor is where the primary family unit lives day to day. It is the most-used level in the home.
Typical room programme:
- Master bedroom: 16×18 ft, south-west zone. Attached 8×10 ft bathroom. Walk-in wardrobe: 6×8 ft.
- Bedroom 2: 13×14 ft, north-east zone. Attached 5×8 ft bathroom.
- Bedroom 3: 12×13 ft. Shared 5×8 ft bathroom access.
- Family lounge / TV room: 14×16 ft, east facing. East balcony: 6×14 ft.
- Balcony off master: 5×12 ft, south-west facing for evening use.
- Dry balcony / utility: 5×8 ft near service area.
The east-facing family lounge is the heart of the first floor. Morning light enters from 6 AM onwards. The 6-ft deep balcony creates an indoor-outdoor zone that is genuinely irreplaceable in any east facing design.
Second Floor — Independent Unit or Senior Living
Second floor layout: fully independent unit — ideal for senior parents or as a premium rental floor
The second floor of a G+3 on a 60×60 plot is large enough to function as a completely self-contained home. Many families configure this level for senior parents who want independence while staying within the same address.
Typical room programme:
- Living-dining combined: 18×16 ft, east facing. East balcony: 5×14 ft.
- Kitchen: 9×12 ft, south-east zone.
- Bedroom 1: 14×15 ft, attached 5×8 ft bathroom.
- Bedroom 2: 12×13 ft, common bathroom access.
- Study / home office: 10×10 ft, north-facing for diffused, glare-free light.
- Common bathroom: 5×8 ft.
With a separate entrance from the staircase landing, this floor also functions well as a premium rental unit. See how Ongrid designs for multi-generational and rental income configurations.
Third Floor — Recreation, Rental, or Terrace Garden
Third floor layout: recreation suite, open terrace garden, and hybrid rental option — the most flexible level in the G+3
The third floor is the most flexible level in a G+3. With a full 60×60 footprint, there are three main configuration options.
Option A — Full recreation floor:
- Home theatre / recreation room: 18×20 ft.
- Open terrace garden: 20×30 ft with planters and seating.
- Gym / yoga room: 12×14 ft.
- Terrace pantry: 8×10 ft.
Option B — Additional rental suite:
- Living room: 14×16 ft.
- Bedroom with attached bathroom: 14×15 ft, 6×8 ft bathroom.
- Compact kitchen: 8×10 ft.
- Private terrace: 10×20 ft.
Option C — Hybrid (most popular): A compact 2-bedroom unit on the north half. Open terrace garden on the south half. The family gets leisure space. You also generate rental income from the unit. Most clients building a 60x60 house plan G+3 choose this configuration.
Vastu Shastra for Your 60×60 East Facing 4-Floor Home
Vastu zone grid for a 60×60 east facing plot — the same zone logic applies consistently across all four floors
East facing is the most auspicious orientation in Vedic architecture. Here is how vastu principles apply zone-by-zone across your home.
Main Entrance: East or north-east zone. On a 60-ft wide east face, the ideal main door position is in the third pada from north, or within the north-east quadrant. Avoid placing the door in the south-east portion of the east face — that zone belongs to Agni, not Indra.
Living Room: East or north-east zone on each floor. The primary gathering space receives the energy of the rising sun — positive, vibrant, and conducive to social activity in the mornings.
Kitchen: South-east zone on every floor where a kitchen exists. The cooking platform should face east so the cook faces east — aligning with the Agni (fire) element placed naturally in the south-east direction.
Master Bedroom: South-west zone, first floor. Bed head should point south or west. The south-west is the zone of stability and earth — appropriate for the primary sleeping space of the home's senior occupants.
Puja Room: North-east corner, ground floor only. Elevate the deity platform. East-facing windows provide natural morning light for prayer and meditation.
Staircase: South or west side of the plan. Never in the north-east. In a G+3, the staircase should climb in a clockwise direction when viewed from above.
Bathrooms: North-west or south-east zones. Never in the north-east or south-west corners of any floor.
Overhead Water Tank: South-west or west side of the terrace. Never directly above the kitchen or puja room below.
Elevation Design for a 60×60 G+3 East Facing Home
Contemporary east facing elevation: vertical fins, glass railings, and staggered balconies across four floors
A 60-ft wide east facade across four floors gives you approximately 960 sq ft of vertical architectural surface. This is a serious design opportunity — not just a functional wall.
Vertical fins and louvers: Stone or aluminium fins break up the wide facade and provide partial shade to east-facing windows during peak summer months (March–June). They also deliver a strong contemporary aesthetic without complex geometry or high maintenance.
Staggered balconies: On a 60-ft frontage, balconies offset floor-to-floor create a dynamic three-dimensional composition. Each balcony naturally shades the floor below — passive solar control at zero additional cost.
Material palette: Natural stone cladding (kota, sandstone, or granite) at the lower two floors grounds the building visually. Plaster-finish upper floors keep the upper mass light. White and off-white exteriors reflect morning light without harsh glare.
Fenestration: Large east-facing windows (minimum 4×5 ft) in all living areas allow morning light to penetrate 15–20 ft into each floor plate. Double-glazed units manage thermal gain in summer while maintaining interior light quality throughout the year.
For inspiration, browse Ongrid's 200 modern house elevation designs or explore stunning three-storey and four-storey home designs.
Construction Cost Breakdown for a 60×60 G+3 Home
Cost breakdown for a 60×60 G+3 home across construction tiers — civil, finishing, and services
Building a G+3 on a 60×60 plot is a significant investment. Here is a realistic cost guide based on 2025–26 construction rates.
| Component | Tier-1 City | Tier-2 City | Tier-3 City |
|---|---|---|---|
| Civil and structural | ₹1,400–2,200/sqft | ₹1,100–1,700/sqft | ₹850–1,400/sqft |
| Finishing (walls, floors, doors) | ₹400–700/sqft | ₹300–550/sqft | ₹250–450/sqft |
| Electrical and plumbing | ₹200–350/sqft | ₹150–280/sqft | ₹120–220/sqft |
| Total | ₹2,000–3,250/sqft | ₹1,550–2,530/sqft | ₹1,220–2,070/sqft |
What this means for your build:
With typical BBMP/GHMC setbacks, a 60×60 G+3 home has a built-up area of 8,000–9,500 sq ft across all four floors.
At Tier-1 rates:
- Economy finish: ₹2,000 × 8,500 sqft = ₹1.70 crore
- Mid-range finish: ₹2,600 × 9,000 sqft = ₹2.34 crore
- Premium finish: ₹3,250 × 9,500 sqft = ₹3.09 crore
These figures cover construction only. Plot cost, design fees, municipal approval charges, and interior design are additional. Use the Ongrid home construction cost calculator for a site-specific figure. View Ongrid's full service pricing.
What Ongrid Delivers for Your 60x60 4-Floor East Facing Design
Ongrid architects work with you from concept to municipality-ready drawings — fully online, fully professional
A 60×60 G+3 project requires a complete, professionally prepared drawing set. Here is exactly what Ongrid delivers:
Architecture set:
- Site plan with setback compliance
- Floor plans for all four floors (G, 1st, 2nd, 3rd)
- Roof plan
- All four elevations (east, west, north, south)
- Minimum two building sections
Structural set:
- Foundation layout and footing details
- Column schedule with reinforcement details
- Beam and slab layout for all four floors
- Staircase structural detail
Services drawings:
- Electrical layout per floor
- Plumbing schematic
- Drainage plan
3D visualisation:
- Minimum 3 exterior views
- Interior 3D views for key living spaces
All drawings are prepared by COA-registered architects and structural engineers. Drawings are municipality-submission ready for BBMP, GHMC, NMMC, and other urban local bodies across India.
Explore Ongrid's full architecture services | View custom home plan packages | Browse complete drawing sets
For a four-floor home, Ongrid recommends the HomeBlueprints Advance Plus service. It includes structural drawings, full elevation design, and municipality liaison support — everything a G+3 project needs in a single package. Read the Ongrid home building guide to understand the full project journey before you start.
Frequently Asked Questions
How many bedrooms can fit in a 60×60 G+3 east facing house plan?
A well-designed 60×60 G+3 house plan typically accommodates 8–10 bedrooms across four floors. A common layout is: 1 guest bedroom on the ground floor, 3 bedrooms on the first floor, 2 bedrooms on the second floor, and 1–2 bedrooms or a recreation room on the third floor. With a 3600 sq ft plot, rooms can be generously sized at 12×14 ft minimum across every level.
What is the total built-up area of a 60×60 G+3 home?
Total built-up area depends on the setbacks prescribed by your local planning authority. On a 60×60 plot with typical BBMP setbacks (front 6 ft, sides 3 ft, rear 3 ft), permissible ground coverage is approximately 2,000–2,200 sq ft per floor. Across four floors, total built-up area ranges from 8,000 to 9,500 sq ft. Your architect calculates the exact permissible FAR (Floor Area Ratio) for your specific zone and road width.
Is an east facing G+3 structurally different from a north or south facing one?
The core structural system — foundation, columns, beams, slabs — is identical regardless of facing direction. What changes is the fenestration strategy on the east facade and the placement of the staircase. East facing homes typically position the staircase on the west side, freeing the full east face for balconies and large windows. Vastu compliance for east facing also shapes internal room zoning floor by floor.
How long does it take to build a 60×60 G+3 home from start to finish?
A G+3 on a 60×60 plot typically takes 18–30 months from foundation dig to handover. Structural work alone (foundation, columns, slabs for all four floors) takes 10–14 months. Finishing and services installation add 8–16 months. Starting the municipal approval process early can save 3–6 months of avoidable project delays.
What are the most important vastu rules for an east facing G+3 home?
The three most critical vastu placements for an east facing G+3 are: (1) main entrance in the east or north-east zone, (2) kitchen in the south-east on every floor where cooking takes place, and (3) master bedroom in the south-west of the first floor. For a multi-floor structure, the clockwise direction of the staircase and south-west placement of the overhead water tank are equally important. East facing is vastu's most auspicious direction — your plot orientation already gives you a strong foundation.
Can a 60×60 G+3 home generate rental income to offset construction costs?
Yes. A G+3 on a 60×60 plot generates strong rental returns when the second and third floors are designed as independent units. In Tier-1 cities, a well-finished independent floor of this size rents for ₹35,000–₹65,000 per month. Two rental floors generate ₹70,000–₹1.30 lakh per month. Over 10 years, that offsets a significant portion of the original construction loan — making the G+3 a financially self-sustaining asset, not just a home.
What are the BBMP floor limits for a 60×60 plot in Bengaluru?
BBMP permits G+3 (four floors) on residential plots that meet FAR and road-width conditions. For a 3600 sq ft plot, G+3 is typically permissible in R1 and R2 residential zones. However, plots facing roads narrower than 9 metres may be restricted to G+2. Always confirm floor permissibility with the local planning authority before commissioning G+3 drawings. Ongrid's architects can verify your plot's eligibility before you commit to the design.
