Building or renovating a home in India presents unique challenges. From the humid coastal climate to the heavy monsoon rains, your electrical system must be resilient. A well-planned electrical layout is the invisible backbone of your home, ensuring that your gadgets, appliances, and lighting work without risk. Understanding the basics of Indian electrical standards, such as BIS certifications and the National Electrical Code (NEC) 2023, helps you make informed decisions that protect your family and your investment. This guide covers everything from FRLS wires to earthing and MCBs.
In India, nearly 42% of building fires are caused by electrical short circuits. Many of these accidents happen due to poor quality materials or outdated wiring. Whether you are a new homeowner in Bangalore’s tech corridor or renovating an ancestral property, this guide breaks down the technicalities of FRLS wires, earthing, and circuit breakers into simple, actionable steps. By the end of this guide, you will know exactly what to ask your electrician and how to spot potential hazards before they become emergencies. Integrating a robust Home Security System alongside your electrical planning can further enhance your family's safety.
Table of Contents
- What You’ll Need: The Essential Inventory
- Step 1: Understanding Wire Types, Colour Codes, and Wiring Systems
- Step 2: Setting Up the Distribution Board (MCBs and ELCBs)
- Step 3: Implementing a Reliable Earthing System
- Step 4: Planning Room-by-Room Layouts
- Step 5: Estimating Costs, Hiring Professionals, and Legal Compliance
- Common Questions (People Also Ask)
- Next Steps for Homeowners
What You’ll Need: The Essential Inventory
Before starting any electrical work or supervising a contractor, you should be familiar with the "ingredients" of a modern Indian home electrical system. High-quality materials may cost more upfront, but they prevent expensive repairs caused by voltage fluctuations, which are common across the Indian power grid.
- FRLS Wires: Flame Retardant Low Smoke wires are the industry standard for modern apartments.
- MCBs and RCCBs: Safety switches that cut off power during overloads or leakage.
- Modular Switches: Ergonomic and aesthetically pleasing switches (brands like Anchor, Havells, or Legrand are common).
- Conduit Pipes: PVC pipes hidden inside walls to protect the wiring.
- Earthing Kit: Usually involving a copper or GI pipe and charcoal/salt or chemical compounds.
Pro Tip: Always look for the ISI mark on wires and switches. This ensures the product complies with the Bureau of Indian Standards (BIS) for safety and performance.
Step 1: Understanding Wire Types, Colour Codes, and Wiring Systems
Wires are the "veins" of your home. In India, we use specific colour codes to ensure any electrician can safely maintain the system later. Standard residential wiring usually consists of three types of wires: Phase (Live), Neutral, and Earth. Using the wrong colour or size can lead to fatal errors during future repairs.
For modern Indian homes, FRLS (Flame Retardant Low Smoke) wires are highly recommended. During a fire, standard PVC wires emit thick black smoke and toxic fumes, which are often more dangerous than the flames themselves. FRLS wires are treated to resist catching fire and produce very little smoke, providing vital minutes for evacuation. This is especially important in high-rise buildings.
Wire thickness, measured in square millimetres (sq. mm), must match the power load. Using a thin wire for a heavy appliance like a 1.5-ton AC will cause the wire to melt, leading to a fire. Below is the standard wire size recommendation for Indian households:
| Application | Recommended Wire Size | Standard Colour (India) |
|---|---|---|
| Lighting and Fans | 1.0 sq. mm to 1.5 sq. mm | Red / Yellow / Blue (Phase) |
| Power Sockets (Fridge, TV) | 2.5 sq. mm | Blue or Black (Neutral) |
| Heavy Load (AC, Geyser) | 4.0 sq. mm to 6.0 sq. mm | Green or Green/Yellow (Earth) |
Important Note on Wire Colour Code: According to the Bureau of Indian Standards (BIS), the standard colour for the neutral wire in India is Light Blue. Black is also commonly used, but it's crucial to note that in older installations, black was used for the phase/live wire. Always verify the function of a wire with a tester before working on it. For a detailed guide, refer to the official wire colour code standards or this overview on housing.com.
Types of House Wiring Systems
Choosing the right wiring system depends on your home's structure and aesthetic preferences. The three main types are:
- Concealed Conduit Wiring: Wires run inside PVC conduits embedded within walls and plaster. This is the most common, neat, and safe method used in modern homes, protecting wires from damage and giving a clean look.
- Surface Conduit Wiring: Conduit pipes are mounted on the surface of walls or ceilings. It's easier to install and repair than concealed wiring and is often used in garages, basements, or where wall chasing isn't possible.
- Trunking Wiring: Wires are laid inside PVC trunking (rectangular ducts) mounted on walls. It's a modular system that allows easy addition of wires later, suitable for offices and commercial spaces.
For most Indian homes, concealed conduit wiring is recommended for safety and aesthetics, as outlined in guides like this one on house wiring types.
The Importance of a Wiring Diagram
A wiring diagram is a blueprint of your home's electrical system. It shows the exact path of every wire, the location of all switches, sockets, and fixtures, and the connection to the distribution board. Having a copy is invaluable for future renovations, troubleshooting, or when you need to drill into a wall. It helps prevent accidents and ensures any electrician can understand your system quickly. Always ask your contractor for a finalized wiring diagram. As noted by bricknbolt.com, an electrical engineer typically designs this diagram.

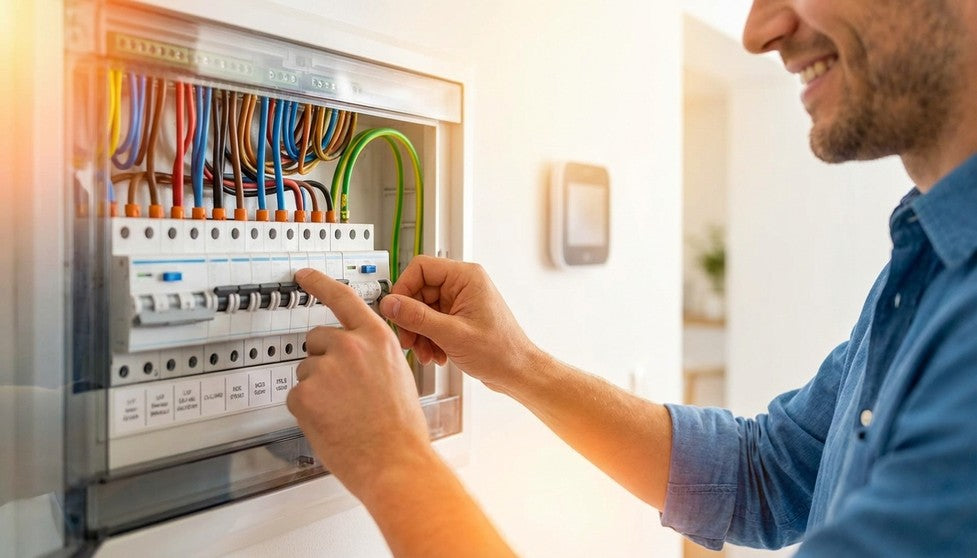

Step 2: Setting Up the Distribution Board (MCBs and ELCBs)
The Distribution Board (DB) is the "brain" of your home’s electricity. It receives power from the state electricity board and splits it into different circuits. The most critical components here are the Miniature Circuit Breakers (MCBs) and the Residual Current Circuit Breaker (RCCB), formerly known as an ELCB.
An MCB (Miniature Circuit Breaker) protects your appliances. If you plug too many devices into one socket, or if there is a short circuit, the MCB "trips" and cuts the power. This prevents the wires from overheating and catching fire. Common causes of MCB tripping include overloading, short circuits, and ground faults [smartshop.lk-ea.com]. On the other hand, an RCCB (Residual Current Circuit Breaker) protects people. It detects even a tiny leakage of current—the kind that happens if someone touches a live wire or a faulty appliance—and shuts off the power in milliseconds to prevent a fatal electric shock.
Warning: Many older homes only have a main fuse. A fuse is slow and unreliable compared to an MCB. If your home doesn't have an RCCB/ELCB, you are at risk of electric shock during the monsoon season when walls can become damp.
Step 3: Implementing a Reliable Earthing System
Earthing is the process of creating a safe path for "leakage" electricity to flow into the ground. In coastal regions, salt air can corrode electrical contacts, increasing the risk of leakage. Proper earthing ensures that if an appliance like a washing machine or geyser develops a fault, the current goes into the earth rather than through your body.
In India, we typically use Pipe Earthing or Plate Earthing. A copper or galvanised iron (GI) electrode is buried deep in the ground outside the house. This electrode is surrounded by layers of charcoal and salt to maintain moisture and low resistance. In modern apartments, "Chemical Earthing" is often used as it requires less maintenance and works better in rocky soil.
Key Takeaway
Earthing is non-negotiable. Ensure your electrician tests the "Earth-to-Neutral" voltage; it should ideally be less than 2 Volts. Anything higher indicates a faulty earthing system.
Step 4: Planning Room-by-Room Layouts
Convenience is just as important as safety. When planning your wiring layout, think about your lifestyle. In the modern Indian home, we have shifted from basic bulbs to multiple chargers, smart TVs, and heavy kitchen machinery. Avoid using "extension boxes" or "multi-plugs" as they are major fire hazards and can overload a single circuit.
- Kitchen: This is a high-load zone. You need separate 16-Ampere sockets for the microwave, mixer-grinder, and water purifier. Ensure these are away from the sink area.
- Living Room: Plan for a "Media Hub" with at least 4-5 sockets for the TV, Set-top box, Router, and Gaming console. Include a 2-way switch for the main light near the entrance.
- Bedroom: Place sockets on both sides of the bed for phone charging and bedside lamps. Ensure the AC switch is reachable from the bed.
- Bathroom: The geyser switch must be outside the bathroom or at a height of at least 1.5 metres to prevent water contact.
Pro Tip: During the planning stage, ask for a "Wiring Diagram." This is a map of where your wires run. Keep a copy of this; it is invaluable when you want to drill holes for wall decor later without hitting a live wire.
Step 5: Estimating Costs, Hiring Professionals, and Legal Compliance
Electrical wiring costs in India can vary significantly based on location, material brands, and labour rates. As a general estimate, costs can range from ₹100 to ₹250 per square foot , including labour and materials, but this can change [bricknbolt.com]. For a standard 1000 sq. ft. 2BHK flat, expect to spend between ₹1 Lakh to ₹2.5 Lakh for a complete, high-quality rewiring or new installation. This price varies based on the brand of switches and the thickness of the wires used.
While it is tempting to hire a local "handyman" to save money, electrical work should be done by a Licensed Electrical Contractor. They understand the local regulations and can provide necessary certifications. For major work, especially in new constructions, you may need permits from your local municipal corporation. Always ensure the contractor follows the latest National Electrical Code of India (NEC 2023) guidelines for safety. If you are considering renewable energy, you should also look into a professional solar rooftop design for homes to ensure your electrical system can handle the integration.
| Component | Approx. Price Range (Quality Brands) | Lifespan |
|---|---|---|
| FRLS Wire (90m coil) | ₹1,200 – ₹4,500 (depending on thickness) | 20+ Years |
| MCB (Single Pole) | ₹200 – ₹500 per unit | 10-15 Years |
| RCCB (Double Pole) | ₹2,500 – ₹4,000 per unit | Test monthly |
| Modular Switch | ₹40 – ₹150 per unit | 10+ Years |
Maintenance Schedule and Inspection Guidelines
Regular maintenance prevents major failures. Follow this simple schedule:
- Monthly: Press the "Test" button on your RCCB to ensure it trips.
- Every 6 Months: Visually inspect sockets and switches for cracks, discolouration, or warmth. Check for flickering lights.
- Annually (Before Monsoon): Hire a licensed electrician for a thorough inspection. They should check earthing resistance, tighten connections in the DB, and look for any wear and tear.
- Every 5-10 Years: Consider a complete professional audit, especially for older homes, to assess if the wiring needs an upgrade.
Identifying Common Wiring Issues
Knowing these signs can help you catch problems early:
- Short Circuit: A sudden spark, popping sound, or tripped MCB with a burning smell. Caused by live and neutral wires touching.
- Open Circuit: A switch or socket stops working, but others on the same circuit are fine. Often a broken wire or loose connection.
- Overloaded Circuit: MCB trips frequently when multiple appliances are used. Warm switches or plug points are a tell-tale sign.
- Poor Earthing: Mild shocks from appliances, especially metal-bodied ones like refrigerators or geysers.
Energy Efficiency and Power Quality
Good wiring also supports energy efficiency. Use separate circuits for high-load appliances to prevent voltage drops that can damage motors. Consider installing surge protectors to safeguard expensive electronics from voltage spikes common in Indian power supply. Using LED lights and energy-efficient appliances reduces the overall load on your wiring system.
Common Questions (People Also Ask)
Can I use normal PVC wires instead of FRLS?
Technically yes, but it is not recommended for residential use. Normal PVC wires catch fire easily and emit smoke that can cause suffocation. FRLS wires are a safety standard in modern Indian construction and are mandatory in many apartment complexes.
Why does my MCB trip when I turn on the AC?
This usually happens because the MCB rating is too low for the AC's starting current, or the circuit is overloaded with other appliances. A 1.5-ton AC usually requires a 20A or 25A MCB. Consult an electrician to check if the wire thickness (should be 4 sq. mm) is also adequate.
How often should I check my earthing?
You should check your earthing once a year, preferably before the monsoon season starts. Pouring salt water into the earthing pit can help maintain low resistance during dry summers.
What is the difference between MCB and RCCB?
An MCB (Miniature Circuit Breaker) protects against overcurrent and short circuits that can cause fires. An RCCB (Residual Current Circuit Breaker) protects against earth leakage currents that can cause electric shock. Both are essential for complete safety. For a detailed comparison of different breakers, you can refer to this guide on MCB, MCCB, RCCB, and ELCB.
Is concealed wiring better than surface wiring?
Concealed conduit wiring, embedded in walls, is generally safer and more aesthetically pleasing as it protects wires from physical damage and pests. Surface wiring is easier to install and repair, making it suitable for garages or where walls cannot be chased.
Do I need a permit for home electrical work?
For major rewiring, new construction, or adding new circuits, you typically need approval from a licensed electrical contractor and may require a permit from your local municipal authority. Always check local regulations and hire certified professionals.
Next Steps for Homeowners
Your Action Plan
- Audit your current DB: Check if you have an RCCB installed. If not, call an electrician today.
- Check for "warm" switches: If a switch feels hot to the touch, it indicates loose wiring or an overload. Replace it immediately.
- Test your RCCB: Press the "Test" button on the RCCB once a month. It should trip immediately. If it doesn't, the device is faulty.
- Always insist on a bill for electrical materials to ensure you aren't being sold counterfeit "first-copy" wires.
- Request and safely store your home's wiring diagram for future reference.
Safe wiring is not just about following rules; it is about peace of mind. By choosing the right FRLS wires, ensuring proper earthing, and installing modern circuit breakers, you protect your home from the unpredictable nature of electrical faults. Whether you are in the heart of Mumbai or a quiet suburb, safety should always be your first priority. For a comprehensive overview, you can refer to this detailed guide on house wiring in India.
