60x60 House Plan | 2 Floor South Facing Design
A 60x60 house plan 2 floor south facing configuration is one of the most rewarding residential briefs in Indian architecture. On a 3,600 sq ft south-facing plot, a G+1 home does something that single-floor and taller buildings cannot — it stacks two distinct solar environments vertically. Your ground floor receives reflected, diffused light. Your first floor receives direct southern sun. This difference in light quality, heat behaviour, and spatial character shapes how each level of your home lives and breathes.
This article gives you a detailed walkthrough of the design logic, room-by-room floor plans, Vastu guidelines specific to south-facing homes, construction costs across three city tiers, and the lifestyle picture of living well in this configuration.

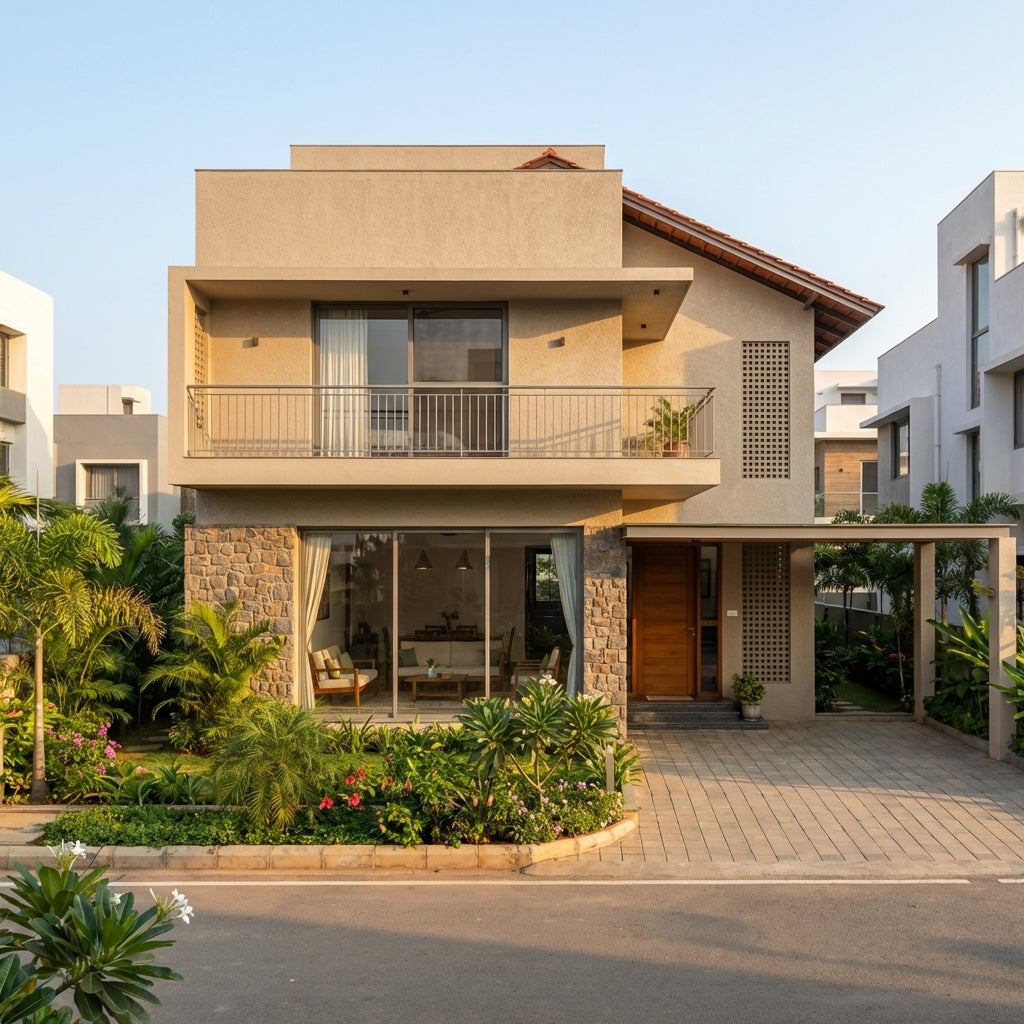

Front elevation — 60×60 south facing 2-floor home with double-height porch, 18-ft balcony, and large south-facing glass in the living room
Why South Facing Works Brilliantly for a G+1 Duplex on 3,600 Sq Ft
South-facing plots carry more anxiety than they deserve in Indian real estate conversations. The concern usually comes from a partial reading of Vastu, not from architectural evidence. In practice, a carefully designed south-facing home outperforms other orientations in specific ways — particularly when it rises to two floors.
In Indian latitudes between 12°N and 28°N, the sun's arc tilts toward the south sky for most of the year. A south-facing facade receives low-angle winter sun that penetrates deep into rooms. It receives high-angle summer sun that sits above a well-designed overhang. The building orientation itself is not the problem. The fenestration strategy and overhang depth are what determine comfort.
The Solar-Stack Advantage of a G+1
A two-floor south-facing home creates a vertical solar stack. Each floor receives and responds to sunlight differently.
Your ground floor benefits from reflected light — sun bouncing off the driveway paving, the garden, and the landscaped strip along the south boundary. This reflected light is softer, cooler, and steadier. It makes the ground floor naturally 3–5°C cooler than the first floor in summer afternoons. It is the ideal environment for a living room, dining area, and a work-from-home study.
Your first floor receives direct south sun from mid-morning through the early afternoon. This light is energising and bright. It makes the first floor bedrooms feel warm and positive in the morning and settle down after noon. With a 4-ft deep balcony slab as an overhang, the interiors stay shaded during the hottest part of the day.
This split-level thermal logic is what makes a 60x60 south facing 2-floor house plan distinctly liveable — not just bigger.
Sun path analysis — winter sun penetrates 8–10 ft into the ground floor living room; summer sun stays outside the 4-ft overhang line
60x60 South Facing 2 Floor House Plan — Room-by-Room Layout
A 60×60 plot with standard BBMP or municipal setbacks — typically 10 ft on the south, 5 ft on each side, and 3 ft on the north — leaves a buildable footprint of approximately 50×52 ft. Residential designs typically cover 65–70% of this, giving you 1,750–1,850 sq ft on the ground floor and a matching or slightly smaller first floor. Total built-up area (BUA) across both levels: 3,400–3,500 sq ft.
Ground Floor Layout
The ground floor organises the public and semi-private zones of your home. The south-facing entry sequence, the social living-dining area, and service spaces occupy this level.
Entry and Parking (South Side)
- Covered car parking: 22×18 ft — Two cars side by side, positioned at the south-west corner. The car porch sits under the first-floor balcony slab, keeping vehicles shaded without adding a separate roof structure.
- Entry porch: 10×8 ft — Recessed under the first-floor slab overhang. A 9-ft ceiling height makes the porch feel grand without any additional structural investment.
- Foyer: 8×7 ft — A transition zone before the living room. Keeps the interior visually private from the street when the main door is open.
Social Zones (Centre and South)
- Living room: 18×16 ft — South-facing, with a full-width glass panel (or large bay window) that draws in soft midday light. Furniture arrangement centres on this window. A 4-ft overhang outside protects from glare and summer heat.
- Dining area: 14×13 ft — Connects to the living room on one side and the kitchen through an open servery counter on the other. The dining space stays bright through the day via borrowed light from the living room window.
Kitchen and Service (South-East Corner)
- Kitchen: 14×12 ft — Located at the south-east corner, which is the Vastu fire zone and also the corner that receives morning light through an east-facing kitchen window. Counter run is 8 ft with an 18-inch deep breakfast counter along one wall.
- Utility area: 8×6 ft — Directly behind the kitchen. Houses a washing area, extra pantry shelving, and rear access to the service court.
Private Zone (North Side)
- Guest bedroom: 13×12 ft — The north side is quieter, shielded from street noise and the south sun. Ideal for elderly parents or guests who value privacy. Has an attached bathroom.
- Attached bathroom: 8×5 ft.
- Pooja room: 6×6 ft — Placed at the north-east corner of the ground floor. This is the Vastu-prescribed position for the prayer space — first to receive morning light, the most energised corner of any plot.
- Common toilet: 7×4 ft — Positioned near the guest bedroom on the north-west side.
Ground floor plan — 60×60 south facing G+1. Living room with south glazing, SE kitchen, NE pooja, north guest suite.
First Floor Layout
The first floor is your private level — bedrooms, a dedicated study, and the south-facing balcony that becomes the lifestyle centrepiece of this design.
Master Suite (South-West)
- Master bedroom: 16×14 ft — Positioned at the south-west corner, which is the strongest Vastu position for the master couple. The south-facing window of the master bedroom looks over the street and catches morning light from 9 AM. This room also benefits from a direct connection to the balcony.
- Walk-in wardrobe: 8×6 ft — Placed between the master bedroom and the bathroom as a light buffer. Keeps the bathroom from opening directly into the sleeping zone.
- Master bathroom: 11×7 ft — Double vanity, wall-hung WC, separate shower cubicle. A clerestory window on the west wall brings in afternoon light without sacrificing privacy.
Secondary Bedrooms (East and North)
- Bedroom 2: 14×12 ft — East-facing window. Catches morning sun directly, making this the ideal room for children or young working adults who need an energetic start to the day.
- Bedroom 3: 12×11 ft — North-east quadrant. Cool, consistent light, very little direct solar exposure. Best for an elderly family member or a child who sleeps late.
- Common bathroom: 8×5 ft — Shared between Bedrooms 2 and 3, accessible from the corridor.
Work and Transition Spaces
- Study / WFH room: 10×9 ft — Positioned off the landing near the stairhead. Acoustically separated from the bedrooms. A glass partition on the corridor side keeps it visually open while maintaining sound privacy during video calls.
- Lobby and corridor: 18×6 ft — Wide enough to feel like a landing gallery. Avoids the narrow, utilitarian feel of a standard residential corridor.
Outdoor Spaces
- South balcony: 18×7 ft — Full-width, spanning the entire south facade of the first floor. Running across the master bedroom and the corridor, this balcony is deep enough for outdoor furniture. Morning and midday sun make it the most-used outdoor space on the plot.
- North service balcony: 10×5 ft — Utility access, washing machine placement, and clothes drying. Separate from the social spaces so it stays out of sight.
First floor plan — SW master suite, three bedrooms, 18×7 south balcony, dedicated study, north service balcony
3D Elevation — Designing the South Facade of Your 60x60 Home
The south facade of a 60×60 G+1 home is your complete architectural canvas. It faces the street, carries the visual identity of your home, and must balance aesthetics with sun control.
Full-Width First Floor Balcony An 18-ft continuous balcony across the first floor creates a strong horizontal datum that anchors the elevation. Use a textured stone-cladding parapet (kota stone or sandstone-look tiles) and a thin RCC slab above. The shadow line this balcony casts changes through the day and gives the facade depth that flat surfaces cannot achieve.
Double-Height Entry Porch A porch with a 9–10 ft ceiling, supported by two square plinth-faced columns, signals architectural confidence at the entry. The porch is covered by the first-floor slab — no separate roof structure needed. This reduces cost while maximising visual impact.
Large Fixed Glass Panels in the Living Room South-facing living rooms benefit from a wide, high glazing unit (minimum 8 ft wide × 6 ft tall) set 4 ft back from the outer edge of the overhang. Use 5 mm tinted or low-e glass to control glare without sacrificing daylight. This single design move dramatically improves the quality of light in your living room throughout the year.
Elevation Material Strategy
- Base course: Stone cladding or face brick up to window sill level (0–3 ft) — adds weight and permanence
- Mid zone: Texture paint or sand-finish plaster in a warm off-white or beige tone
- Accent zones: Metal railings on balcony, ACP (aluminium composite panel) vertical fins at the entry pilasters, and a tile-cladding strip at the parapet
3D elevation — 60×60 south facing 2-floor home. Stone base, wide glazing, 18-ft balcony, and textured parapet
Browse more design references in the duplex elevation design collection and the 200 modern house elevation designs gallery.
Vastu Shastra for Your 60x60 South Facing Home
South facing homes require more deliberate Vastu planning than east or north facing plots — but the result is not a compromise. When done correctly, a south-facing home can be fully Vastu-compliant and considered auspicious. The critical variable is where on the south wall your main door sits.
Vastu grid for 60×60 south facing plot — 4th pada door on south wall, NE pooja, SE kitchen, SW master bedroom
Main Door Placement — The Deciding Factor
Vastu divides each wall of a plot into nine equal segments called padas. On a south wall of a 60-ft wide plot, each pada is approximately 6.7 ft wide. The 4th pada from the east (sometimes called Grihakshat or Vitatha in classical texts) is considered acceptable and even auspicious for a south-facing main door.
Do not place the main door in the 1st, 7th, 8th, or 9th pada on the south wall. These fall in Yama zones and are associated with health and financial disturbance in traditional Vastu texts.
On a 60-ft frontage, the 4th pada starts at approximately 20 ft from the east boundary and ends at approximately 26.7 ft. Plan your door opening and porch within this 6.7-ft zone.
Room Placement at a Glance
| Room | Position on Plot | Vastu Rationale |
|---|---|---|
| Main door | South wall, 4th pada | Grihakshat zone — auspicious entry |
| Kitchen | South-East corner | Fire element zone, strengthens cooking |
| Pooja room | North-East corner | Divine energy, maximum positive force |
| Master bedroom | South-West corner | Earth element — stability, deep sleep |
| Children's bedroom | East or North-West | Growth and movement energies |
| Guest bedroom | North-West | Air element — suitable for transient use |
| Study / WFH | East or North-East | Mercury zone — intellect and clarity |
| Water sump / tank | North-East | Water element — never at SE or SW |
| Staircase | South or South-West | Heavy structures belong in the south zone |
| Toilets | North-West or West | Away from sacred and social zones |
For a deeper Vastu walkthrough, explore our home building guide and the beginner's checklist.
Construction Cost Estimate for a 60x60 South Facing G+1 House
A 60×60 G+1 home — accounting for wall thickness, staircase, and standard balcony areas — delivers approximately 3,400–3,500 sq ft of built-up area (BUA) across both floors. Balconies, car porch, and open-to-sky areas are additional.
Cost breakdown — 60×60 south facing 2-floor home across three construction quality tiers
Tier-Wise Cost Range
Tier 1 — Premium (Mumbai, Bengaluru, Hyderabad, Delhi NCR)
- Rate: ₹2,000–3,500 per sq ft
- Total BUA of 3,450 sq ft: ₹69 lakh to ₹1.21 crore
- Includes: AAC block masonry, vitrified tiles, branded sanitary fittings, concealed wiring with MCB distribution, granite kitchen slab, modular kitchen unit
Tier 2 — Mid-Range (Pune, Ahmedabad, Kochi, Coimbatore)
- Rate: ₹1,500–2,500 per sq ft
- Total BUA of 3,450 sq ft: ₹52 lakh to ₹86 lakh
- Includes: Solid concrete blocks, ceramic floor tiles, standard plumbing fixtures, exterior texture paint, semi-modular kitchen
Tier 3 — Economy (Tier 3 cities, semi-urban)
- Rate: ₹1,200–2,000 per sq ft
- Total BUA of 3,450 sq ft: ₹41 lakh to ₹69 lakh
- Includes: Red brick or hollow block, kota stone or mosaic flooring, basic electrical and plumbing, lime-cement exterior finish
South Facing-Specific Cost Factors
Three design elements in a south-facing home carry a small cost premium but deliver long-term value:
- South glazing upgrade: Replacing standard 4 mm clear glass with 5 mm tinted or low-e glass on the south facade adds ₹80,000–1.5 lakh to your window budget. It significantly reduces summer heat gain.
- Deep overhangs: A 4-ft reinforced RCC overhang over the south living room window and first-floor balcony slab costs ₹30,000–50,000 extra in concrete and shuttering. It pays back in lower cooling bills every summer.
- Vastu door repositioning: If your initial layout placed the car porch centrally, shifting it to the south-west to free the 4th pada for the main door may involve ₹15,000–25,000 in adjusted foundation excavation.
Use our home construction cost calculator to get a city-specific estimate for your project.
The Lifestyle of a South Facing 60x60 Duplex — Day by Day
The design decisions in a 60x60 south facing 2 floor house plan play out in the texture of everyday life. Here is what living in this home actually looks like across a typical day.
Interior character — ground floor living room in cool diffused south light; first floor south balcony as the social heart of the home
Morning: Your kitchen is at the south-east. An east-facing kitchen window catches the first light of the day. Breakfast preparation happens in a naturally lit, oriented space — not under tube lights at 7 AM.
Mid-morning: The living room south window draws in a long band of warm light across the floor. The depth of the overhang keeps glare off the TV wall and the sitting zone. The ground floor ambient temperature is lower than the street outside.
Afternoon: The first floor master bedroom stays shaded behind the balcony slab. The balcony itself — 7 ft deep and 18 ft wide — becomes an outdoor extension. This is where afternoon tea and conversations happen in winter. In summer, a ceiling fan on the balcony makes even 38°C afternoons workable.
Evening: South-west breeze funnels onto the first floor balcony after 5 PM. The bedroom corridor behind it draws in cool air through natural cross-ventilation. No mechanical cooling required for the master bedroom on most days between November and February.
Night: Bedroom 3 at the north-east is completely quiet. No street-facing window, no direct thermal exposure from any direction. Ideal for elderly family members or for a child who wakes early.
For interior design ideas that complement this layout, explore our 200 modern interior design ideas.
How Ongrid Designs Your 60x60 South Facing House Plan
Ongrid is an online architecture studio with COA-certified architects across India. We design plot-specific residential homes — not generic templates.
For a 60×60 south facing G+1 project, our process covers:
- Site review: We examine your survey sketch, confirm true-south orientation (which differs from magnetic south by 2–5° in most Indian cities), and review local municipality setback rules.
- Vastu alignment: Our architects calculate the 4th pada position on your specific 60-ft frontage and lock all room placements before the structural grid is drawn.
- Floor plan development: Ground floor and first floor plans with dimensioned rooms, wall thicknesses, door and window schedules, and furniture layout.
- 3D elevation: Photorealistic renders of the south facade plus rear and side elevations. You see the home before a single brick is laid.
- Construction drawing set: Structural, plumbing, electrical, and finishing schedules ready for local contractor tendering.
Explore our services: Architecture Services | Custom Home Plans | Book a Consultation
If you are still exploring options, browse the complete set of home plans or the modern duplex home plan for reference designs. Our Ongrid pricing page has current service package details.
Frequently Asked Questions
Is a south facing 60x60 house plan considered bad according to Vastu?
No, south facing plots are not inherently inauspicious in Vastu. The direction of the plot is less important than where on the south wall your main door sits. A door in the 4th pada (Grihakshat zone) on the south wall is considered acceptable and auspicious. With the kitchen at the south-east, the pooja room at the north-east, and the master bedroom at the south-west, your 60×60 south facing G+1 home is fully Vastu-compliant.
How many bedrooms fit in a 60x60 south facing 2-floor house plan?
A well-designed 60×60 south facing G+1 typically accommodates four to five bedrooms. The standard layout places one guest bedroom on the ground floor (with attached bath) and three bedrooms on the first floor — a south-west master suite, one east-facing bedroom, and one north-east bedroom. The study or WFH room can double as a fifth bedroom when needed.
What is the total built-up area of a 60x60 G+1 home?
After standard municipal setbacks — approximately 10 ft south, 5 ft on each side, and 3 ft north — your buildable footprint is around 50×52 ft. Using 65–70% coverage per floor, the ground floor delivers 1,750–1,850 sq ft and the first floor a similar area. Total BUA across both levels is typically 3,400–3,500 sq ft, not counting open balconies, the car porch, or utility courts.
What does it cost to build a 60x60 south facing 2-floor house in Bangalore?
Bangalore falls in the Tier 1 construction bracket. At ₹2,000–3,500 per sq ft on a BUA of approximately 3,450 sq ft, your construction budget ranges from ₹69 lakh to ₹1.21 crore. This covers civil structure, basic finishes, and standard MEP (mechanical, electrical, plumbing). It excludes land cost, architect and engineer fees (typically 3–8% of project cost), and any premium interior fit-out above the base civil scope.
What design features are non-negotiable in a south facing 60x60 G+1 home?
Three elements are essential: First, a deep overhang of at least 3.5–4 ft over all south-facing windows and the first-floor balcony slab — this blocks the high summer sun while letting in low winter light. Second, high-quality fixed glazing (5 mm tinted or low-e glass) in the south living room. Third, a south balcony of at least 6 ft depth on the first floor, functioning as a thermal buffer between the south sun and the master bedroom interior.
Can a south facing 60x60 plot accommodate parking for two cars?
Yes. A 60-ft wide south-facing frontage easily handles a 22×18 ft covered parking bay for two cars. The car porch is positioned at the south-west, which keeps the south-east entry path clear for the main door at the Vastu-correct 4th pada position. The first-floor balcony slab naturally covers the car porch, providing shade without a separate structure.
How long does Ongrid take to deliver drawings for a 60x60 south facing G+1 home?
Ongrid's standard turnaround for a complete drawing set — floor plans, elevations, sections, structural notes, electrical and plumbing layouts — is 15–21 working days. For clients who need only architectural floor plans and a 3D elevation, a faster-track service is available in 7–10 working days. Book a consultation to confirm your timeline and service package.
