40x60 House Plan | 1 Floor North Facing Design
A 40×60 north-facing bungalow — wide frontage, all rooms on one level, and a Vastu layout that needs zero compromises.
A 40x60 house plan north facing is the single most sought-after residential configuration among Vastu-conscious Indian homeowners. Your 2,400 sq ft plot gives you 40 ft of road-facing frontage pointing due north — the direction Vastu Shastra associates with Kubera, the lord of wealth. On a single ground floor, every major room can land precisely in its ideal Vastu zone. No upper-floor trade-offs. No staircase forcing a compromise. No bathroom above the pooja room. This is why Vastu architects consistently call this combination the "grand slam" of Indian home planning.
This guide covers the complete picture for your 40x60 north-facing bungalow: floor plan layout with real dimensions, Vastu-specific room placements, 3D elevation ideas, accurate construction costs across city tiers, and garden design tips. All recommendations come from Ongrid's COA-certified architects, who have designed hundreds of north-facing homes across India.
Why a North-Facing 40x60 Plot Is Vastu's Most Coveted Configuration
In Vastu Shastra, the north direction is governed by Kubera — the deity of wealth and prosperity. A home entrance facing north is believed to attract financial growth, career stability, and family harmony. This is not just tradition; it shows up in real estate prices. North-facing plots in comparable localities across Indian cities command a 10–15% premium over south or west-facing equivalents at the time of both purchase and resale.
Sun path analysis: The north façade receives even, glare-free light all day. South and west walls absorb solar heat but are buffered by bedrooms and thick masonry.
The thermal advantage is equally real. Your main façade faces north — away from the scorching afternoon sun. The south and west walls, which absorb the most solar radiation, can be designed as bedroom or kitchen walls with adequate mass to moderate heat gain. This passive cooling benefit reduces your air-conditioning load without any extra technology or cost.
For a single-floor layout, the Vastu advantage doubles. With no upper floor, there is no bedroom above the kitchen, no bathroom above the pooja room, and no staircase eating into a key zone. Every room gets its correct position with complete structural freedom. No other floor count and orientation combination offers this level of Vastu compliance without some compromise.
Explore 200+ modern house elevation designs for north-facing façade treatment ideas.
Floor Plan for Your 40x60 North-Facing Single-Floor Home
A well-designed 40x60 single-floor plan typically covers 1,600–1,800 sq ft of built-up area. The remaining 600–800 sq ft accommodates setbacks, a car porch, and your north-facing front garden — all within the 2,400 sq ft plot boundary.
Ground floor plan: 3BHK + pooja room + utility on a 40×60 north-facing plot. All rooms positioned according to the Vastu Purush Mandala.
Here is a typical 3BHK room breakdown for this configuration:
| Room | Dimensions | Area |
|---|---|---|
| Car Porch (North frontage) | 10×20 ft | 200 sq ft |
| Living / Drawing Room | 16×18 ft | 288 sq ft |
| Dining Room | 12×14 ft | 168 sq ft |
| Kitchen | 10×13 ft | 130 sq ft |
| Utility / Wash Area | 6×8 ft | 48 sq ft |
| Master Bedroom (SW) | 14×16 ft | 224 sq ft |
| Attached Master Bathroom | 6×8 ft | 48 sq ft |
| Bedroom 2 (NW) | 12×13 ft | 156 sq ft |
| Bedroom 3 (South) | 12×12 ft | 144 sq ft |
| Common Bathroom | 5×8 ft | 40 sq ft |
| Pooja Room (NE) | 5×6 ft | 30 sq ft |
| Store Room | 5×8 ft | 40 sq ft |
| Passage / Circulation | — | ~90 sq ft |
| Total Built-up | ~1,606 sq ft |
The remaining area covers a 10×18 ft front garden and side setbacks. If you need 4 bedrooms, reduce the living room to 14×16 ft and add a compact 10×10 ft fourth bedroom along the south wall — still within the same footprint.
For a customised layout, explore Ongrid's complete set of home plans or start with the Home Design Lite service.
Vastu Layout Guide for a North-Facing 40x60 Ground Floor Home
The north-facing single floor makes Vastu implementation more straightforward than any other configuration. Every room maps cleanly to its prescribed direction. Here is the complete placement guide:
Vastu Purush Mandala overlay: all eight primary directions correctly assigned. North-facing plots achieve this alignment without structural compromise.
Main Entrance — North or North-East Place your main door in the north or north-east quadrant. North-east (Ishan kona) is the most auspicious entry point in Vastu. Keep the threshold wide, well-lit, and unobstructed. A slightly raised step at entry is traditionally preferred over a flush ground-level opening.
Pooja Room — North-East The north-east is the most sacred zone in the Vastu Mandala. On a north-facing plot, your main entrance and pooja room share this quadrant naturally — an advantage that south-facing homes can rarely achieve. Place the idol facing east; the worshipper prays facing east with their back to the west.
Living Room — North or East Side Your 16×18 ft living room in the north and north-east portion receives the best morning light and soft afternoon shade. This is the ideal room for where your family spends most of its time together. The north-facing glazing can be generous — no risk of afternoon glare or heat gain on this side of the house.
Kitchen — South-East (Agni Kona) South-east is the fire zone in Vastu — the mandatory position for cooking. Ideally, the cook faces east while cooking. Your 10×13 ft kitchen in the south-east is both practical (adjacent to the utility area) and fully Vastu-compliant. Avoid placing the kitchen in the north-east or north-west.
Master Bedroom — South-West (Nairitya) South-west is the most grounding, stable zone in the Mandala. It is the correct position for the head of the household. Sleep with your head pointing south for the best Vastu alignment. Never place the master bedroom in the north or north-east — these are active, expansive zones, not restful ones.
Bedrooms 2 and 3 — North-West and South North-west rooms suit working adults, children, or frequent guests — this zone promotes movement and social engagement. South-facing rooms are quieter and well-suited to restful sleep.
Bathrooms — South or West Zones Keep bathrooms strictly in the south or west. Never place a bathroom in the north-east; this is one of the most serious Vastu violations and is easy to avoid on a north-facing plot if the layout is planned correctly from the start.
Underground Water Sump — North or North-East Water storage belongs in the north on a north-facing plot — perfectly aligned with the water element's natural Vastu direction. The overhead tank, however, goes in the west or south-west, the heavier and more stable zones.
Learn more about Vastu-compliant design in the Ongrid Beginners' Guide.
Elevation Ideas for Your North-Facing 40x60 Bungalow
A 40 ft north-facing frontage is an architect's canvas. The single-floor silhouette is wide and horizontal — which calls for strong horizontal design elements, layered planes, and a confident treatment of the full-width façade.

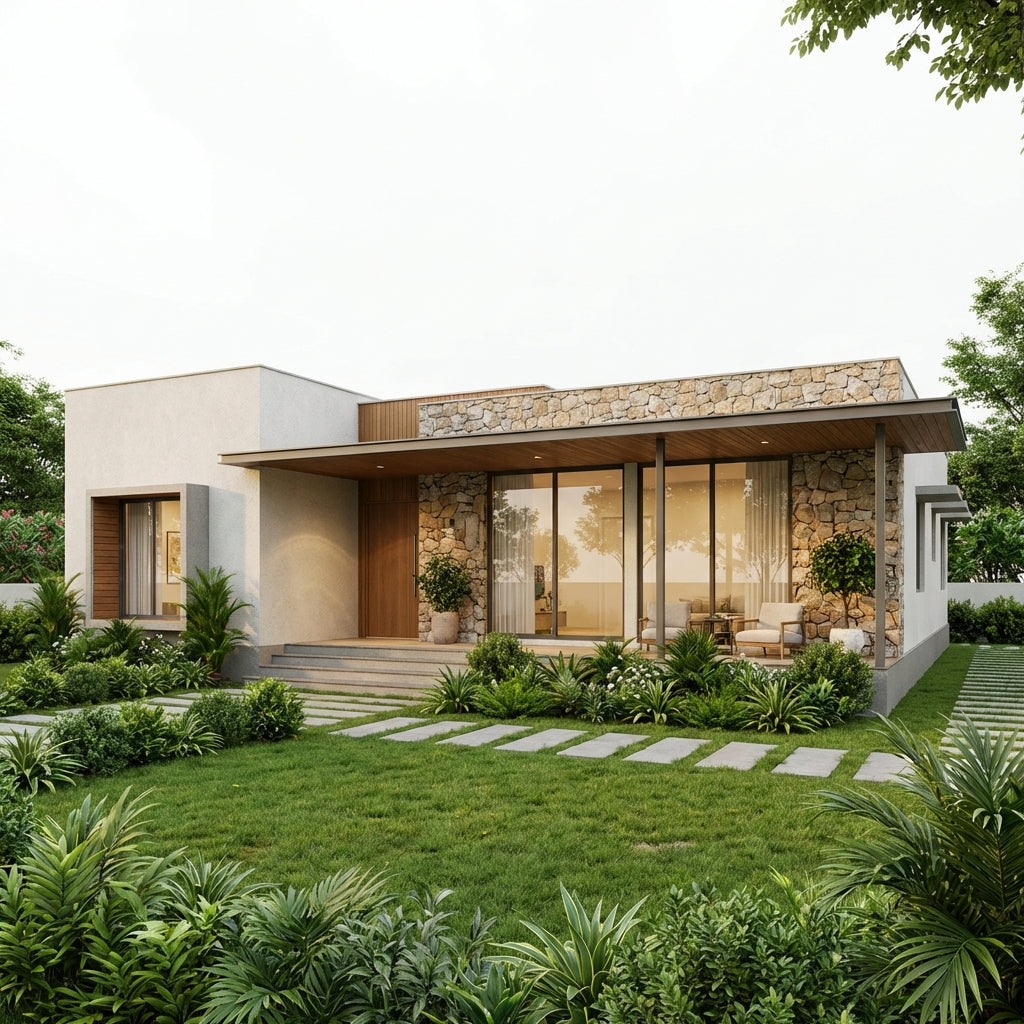

Design highlight: Natural stone cladding, wide overhang porch, and floor-to-ceiling north-facing glazing — a signature Ongrid bungalow look.
Contemporary Flat Roof A clean parapet with horizontal strip windows, a recessed entrance porch, and a contrast stone-cladding panel creates a sharp modern appearance. Textured cement plaster in off-white or warm grey is the standard base finish. This style photographs well and maintains its look for 15–20 years with minimal upkeep.
Traditional Sloped Roof A hip or gable roof in clay or Mangalore tiles adds height and warmth to the single-floor profile. Paired with a wide verandah and exposed brick detailing, this style suits both traditional and transitional Indian aesthetics. It also performs better in high-rainfall regions, keeping the walls and plinth dry.
Farmhouse or Villa Style Wooden column accents, a pergola with creeping plants, and a broad sit-out verandah create a resort-like quality. This works beautifully in suburban and semi-urban settings where setback distances allow generous landscaping. It pairs naturally with the north-facing garden.
Because the north elevation never receives direct harsh sunlight, you can use glass liberally on this façade — large fixed windows, glass-panelled entrance doors, and bay windows all work without heat gain concerns. Browse 50 unique simplex elevation ideas for more north-facing bungalow inspiration.
Book a consultation with an Ongrid architect to get a custom elevation designed for your plot.
What Does a 40x60 House Plan North Facing Cost to Build?
Construction cost depends on your city tier, material grade, and finish level. For approximately 1,600 sq ft of built-up area — the typical footprint for this layout — here are realistic estimates:
Cost breakdown: Structure, finishing, and fittings for a 40×60 single-floor north-facing bungalow across city tiers.
| City Tier | Rate per Sq Ft | Estimated Total (1,600 sq ft) |
|---|---|---|
| Tier-1 (Bengaluru, Mumbai, Hyderabad, Delhi) | ₹2,000–3,500 | ₹32–56 lakhs |
| Tier-2 (Pune, Ahmedabad, Jaipur, Kochi) | ₹1,500–2,500 | ₹24–40 lakhs |
| Tier-3 (Smaller cities and towns) | ₹1,200–2,000 | ₹19–32 lakhs |
Budget separately for these additional heads:
- Boundary wall and gate: ₹2–4 lakhs
- Car porch canopy structure: ₹1.5–3 lakhs
- Landscaping and garden: ₹1–2.5 lakhs
- Interior furnishing (mid-range): ₹8–18 lakhs
One important structural note: single-floor homes cost 8–12% more per sq ft than the equivalent area spread across two floors. Your foundation and roof slab both cover the full 40×60 footprint, whereas a G+1 home splits those costs across two levels. Factor this into your comparison if you are weighing single-floor versus G+1 options.
Use the Ongrid Construction Cost Calculator for a city-specific figure, or visit the Ongrid pricing page for detailed service packages.
Outdoor Living: Making the Most of Your North-Facing Garden
The north-facing front garden is this plot's most underappreciated asset. Because it faces north, it stays shaded and genuinely cool through Indian summers. This is the rare urban home where you can sit in the front garden at 4pm in May without harsh afternoon glare — something east, south, and west-facing plots cannot offer.
The north-facing garden: usable all year, shaded in summer, maintenance-friendly — a genuine outdoor living room for Indian families.
Garden design tips for a north-facing 40x60 home:
- Choose shade-tolerant plants. Ferns, peace lilies, snake plants, and money plants thrive without aggressive watering or direct sun. They create a lush, low-maintenance green border along the boundary wall.
- Design a 4–5 ft wide verandah or sit-out. Position it between the main entrance and the boundary gate. This doubles as an extension of your living room and is especially useful for morning tea and evening gatherings.
- Add a small water feature. A low-profile water body along the north boundary wall is Vastu-positive for this plot orientation and adds a calming focal point to the garden composition.
- Use low-level path lighting. LED strip lights along the garden path or uplighting on the boundary wall create an inviting, layered entrance after dark at minimal running cost.
For this plot size, keep the garden depth at least 10–12 ft from the boundary wall to the car porch edge. This gives comfortable space for one shade tree, a seating area, and a clean driveway approach. Explore more lifestyle and interior design ideas in the Ongrid interior design collection.
Frequently Asked Questions
Is a north-facing 40x60 plot the best choice for Vastu compliance?
Yes — north-facing is the most auspicious residential orientation in Vastu Shastra. The north is governed by Kubera, making it the ideal direction for the main entrance. On a 40×60 single-floor plan, this orientation allows every room — kitchen in the south-east, master bedroom in the south-west, pooja room in the north-east, living room in the north — to land in its prescribed Vastu zone. No other orientation achieves this level of alignment without structural trade-offs, particularly on a single floor.
How many bedrooms can I fit in a 40x60 single-floor home?
Three bedrooms comfortably — a 14×16 ft master bedroom with attached bath, a 12×13 ft second bedroom, and a 12×12 ft third bedroom. Four bedrooms are possible if you reduce the living room from 16×18 ft to 14×16 ft and add a compact 10×10 ft fourth bedroom along the south wall. Both configurations accommodate a full kitchen, dining room, two bathrooms, a pooja room, utility area, and circulation space within the plot boundaries.
What does it cost to build a 40x60 single-floor north-facing home?
For approximately 1,600 sq ft of built-up area, expect ₹19–32 lakhs in Tier-3 cities, ₹24–40 lakhs in Tier-2 cities, and ₹32–56 lakhs in Tier-1 metros like Bengaluru, Mumbai, or Hyderabad. These figures cover structure, finishing, and basic fittings. Boundary wall, car porch canopy, landscaping, and interior furnishing are additional. Use Ongrid's construction cost calculator for a precise, city-specific estimate.
Does a north-facing single-floor home stay cool in Indian summers?
Largely yes. The main façade faces north and never receives direct afternoon sun. South and west walls — which absorb the most solar radiation — function as thermal buffers when designed as bedroom and kitchen walls with adequate masonry mass. Adding a 4-inch cavity in the south wall or a lightweight insulated false ceiling can reduce indoor temperatures by 3–4°C in hot-dry and composite climates. This meaningfully lowers air-conditioning costs across the year.
Can I future-proof my 40x60 single-floor home for a second floor later?
Yes — and you should plan for it from day one. Ask your structural engineer to design the foundation and RCC columns for G+1 loads at the outset. The additional cost is modest: typically ₹1.5–2.5 lakhs more for the over-designed footing. That is far cheaper than retrofitting structural capacity later, which often requires breaking existing floors and walls. Ongrid's custom home plans service includes future-proof structural drawings as standard, so you are not locked in to a single-floor home permanently.
What exterior style works best for a north-facing 40x60 bungalow?
Three styles consistently perform well for this plot configuration. Contemporary flat-roof with large north-facing glazing and a horizontal stone-cladding accent panel works best in urban and peri-urban settings. Traditional sloped-roof in Mangalore or clay tiles with a wide verandah suits high-rainfall regions and traditional aesthetic preferences. A farmhouse style with wooden accents, a pergola, and lush landscaping works well where setbacks allow generous green space. Since the north façade never faces direct afternoon sun, glass can be used liberally on this elevation without heat-gain concerns.
How much parking space is practical on a 40x60 north-facing plot?
A standard two-car porch measuring 10×20 ft fits comfortably in the north frontage, leaving adequate space for the main entrance, a garden path, and a planted border. For three-car parking, a 15×22 ft covered porch is feasible but reduces garden depth to around 6–8 ft. Single-car parking in a compact 9×18 ft bay is popular where garden space is the priority. For families with four or more vehicles, an open driveway across the full frontage — without a canopy — keeps the façade visually open and maximises manoeuvring space.
Ready to design your 40x60 north-facing bungalow? Explore Ongrid's architecture services or book a consultation with a COA-certified architect to get started.
