20x40 House Plan | 4 Floor North Facing Design

A 20x40 north-facing plot presents a unique opportunity to build a tall, vertical home on a compact urban footprint. With only 800 square feet of land, this 4-floor (G+3) house plan maximizes living space through smart multi-level design while maintaining complete vastu compliance. If you're building on a narrow, deep plot in an Indian city and want every square foot to count, this north-facing configuration offers consistent natural light, excellent ventilation, and the potential to generate rental income from ground floor commercial or rental units.

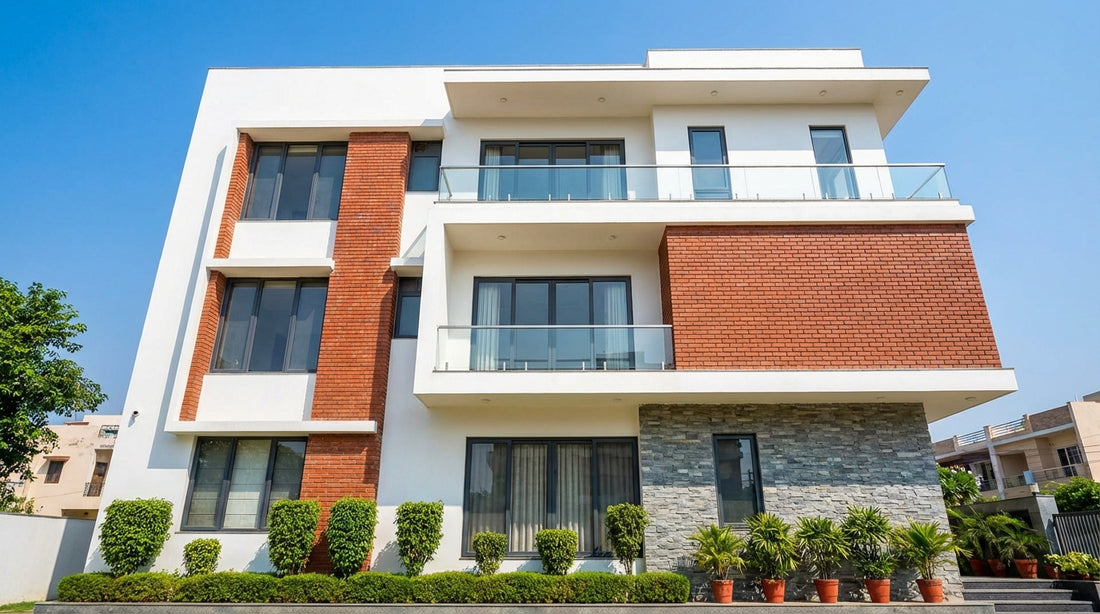

4-Floor North-Facing 20x40 Home - Modern Design by Ongrid

Why Choose a North-Facing 20x40 Plot?

North-facing homes have a distinct advantage: they receive indirect, soft light throughout the day without the harsh afternoon heat that plagues south and west-facing homes. For a compact 20x40 property, this is a major benefit. You won't need heavy air conditioning in living areas, which translates to lower electricity bills and greater comfort during Indian summers.

The north direction also aligns well with vastu principles. North is associated with wealth and prosperity, making it an auspicious choice. Combined with the vertical efficiency of a 4-floor design, a north-facing 20x40 plot can support a family of 4-6 across multiple generations, with potential to lease out the ground floor for commercial or residential income.

Unlike east or west-facing plots where you battle direct sunlight in specific rooms, a north-facing home diffuses light evenly across all floors. This means your living areas, bedrooms, kitchens, and studies all get consistent illumination without sun glare—ideal for work-from-home professionals.

North-facing house viewed from above, sun path labeled 6 AM to 6 PM, soft northern light all day, label showing "Indirect light prevents harsh shadows", "South side receives afternoon brightness", illustration style infographic. Design by Ongrid.

Floor Plan Overview

This 20x40 plot (20 feet wide × 40 feet deep) totals 800 square feet of land. When divided into 4 floors, each floor typically measures 200 square feet of built-up area (accounting for wall thickness and the staircase footprint). Here's how the design distributes the space:

Ground Floor (G)

The ground floor (12 ft wide × 32 ft deep usable area) contains the main entrance, reception area, and a multi-purpose space. This floor often features:

• Entrance Lobby: 6×8 ft — creates a formal entry from the north-facing street
• Reception/Living Area: 10×12 ft — bright northern light, serves as living/working zone
• Powder Room/WC: 4×6 ft — efficient bathroom design
• Kitchen Pantry: 5×8 ft — compact but functional, located for easy access to stairs
• Open-to-above/Staircase Area: 8×12 ft — visual volume, natural light through upper floors

This floor can also be designed as a commercial unit (shop/clinic), rental apartment, or service apartment for additional income.

20x40 ground floor technical diagram, north side labeled entrance, WC 4×6, kitchen 5×8, living area 10×12, staircase 8×12, room labels with bold text, architectural style, color-coded zones. Design by Ongrid.

First Floor (1st)

Moving up, the first floor mirrors the ground layout with more living space:

• Master Bedroom Suite: 10×12 ft — north-facing window ensures quiet, cool sleeping
• Secondary Bedroom/Study: 8×10 ft — flexible use (bedroom, office, or guest room)
• Bathroom: 5×6 ft — ensuite attached to master
• Common Area/Balcony: 8×8 ft — north-facing balcony for natural ventilation and outdoor space

The north aspect keeps these rooms cool and peaceful—ideal for rest and focus work.

20x40 first floor layout, master bedroom 10×12, secondary bedroom 8×10, bathroom 5×6, balcony 8×8, north side labeled, staircase shown, technical diagram. Design by Ongrid.

Second Floor (2nd)

• Master Bedroom Suite: 10×12 ft — repeat of first floor for rental/family independence
• Bedroom/Child's Room: 8×10 ft — smaller but versatile
• Bathroom: 5×6 ft — shared or ensuite option
• Passage/Staircase Void: 8×12 ft — allows light to filter down through the building

This floor is ideal for a separate unit (useful if parents live with you, or for rental income).

20x40 second floor layout with dimensions labeled, showing bedroom placement, bathroom, void space, architectural diagram style. Design by Ongrid.

Third Floor (3rd) / Top Floor

• Bedroom: 10×12 ft — can be master suite or guest bedroom
• Studio/Home Office: 8×10 ft — bright northern light for creative work
• Bathroom: 5×6 ft — efficient compact design
• Open Terrace/Balcony: 8×8 ft — north-facing terrace for gardens, drying, or evening gatherings

The terrace is a key feature—in Indian homes, this space is invaluable for plants, washing lines, summer cooling, or outdoor dining.

20x40 top floor layout with terrace, bedroom 10×12, studio 8×10, bathroom 5×6, terrace area labeled, architectural diagram. Design by Ongrid.

Total Built-up Area: Approximately 800 sq ft (across 4 floors, roughly 200 sq ft per floor after accounting for wall thickness and stairs).

Design Highlights

Staircase Placement & Circulation

For a 20×40 plot, the staircase is typically placed centrally or toward one side (often the north or south boundary) to maximize usable room area. A 4-foot-wide staircase requires only 4×12 ft of floor footprint, leaving the rest of the floor open for living spaces.

Natural Light & Ventilation

North-facing windows on all floors ensure:

• Consistent daylight without harsh UV exposure
• Cross-ventilation: North windows combined with south-side vents or small windows create natural air circulation
• Lower cooling load: Soft northern light means less air-conditioning dependency
• Reduced heat gain: Ideal for the Indian climate

Structural Efficiency

A 4-floor home on a 20×40 plot demands strong structural design. The plan typically features:

• Load-bearing walls or a reinforced concrete frame to carry 4 stories safely
• Deep foundation (pile or raft) appropriate for the soil type and building height
• Vertical reinforcement in columns at regular intervals
• Horizontal beams spanning the 20-foot width without intermediate support (important for open layouts)

All structural components comply with Indian Building Code (NBC) and municipal requirements for multi-story construction.

Interior view of first-floor living area, north-facing glass windows, natural light streaming in, open kitchen view, POP ceiling with cove lighting callouts labeled, vitrified tile flooring visible, modern Indian decor with brass accents. Design by Ongrid.

Vastu Compliance for North-Facing 20x40 Homes

North is one of the most auspicious directions in vastu shastra. Here's how the design aligns with vastu principles:

Entrance Placement

Main entrance on the north side (between 0° and 45°, closer to northeast if possible) invites prosperity and positive energy. North is ruled by Kuber (lord of wealth), making it ideal for business owners.

Room Placements by Direction

• Northeast (Ishanya): If there's space, position the pooja room or prayer corner here
• East side: Living room or dining area receives morning light
• Southeast (Agni): Kitchen is well-positioned here (element of fire)
• South & West: Bedroom and storage areas (cooler, private)
• Center (Brahmasthana): Keep the staircase void or central passage here — open and uncluttered

Kitchen Placement

In this 20×40 design, the kitchen is typically positioned in the south-east sector (kitchen ≈ fire element) or back of the ground floor. It has a window to the south or east for natural light and ventilation—important for removing cooking odors.

Master Bedroom Direction

The master bedroom is positioned on the southwest side (higher floors), which aligns with vastu—the southwest is the earth element and supports rest and stability.

Water Features

If your plot allows, place the water supply tank (sump/overhead tank) in the northeast sector and the drainage/wastewater exit toward the south or west—this follows vastu principles of purity and natural flow.

3×3 grid showing 20x40 north-facing vastu mandala, northeast pooja marked, east living, southeast kitchen with Agni symbol, south bedrooms, southwest master, center staircase void, compass rose in corner, labeled infographic style. Design by Ongrid.

Construction Cost Estimate

For a 20×40 north-facing 4-floor house in a Tier-2 Indian city (like Pune, Jaipur, or Lucknow), here's the estimated cost breakdown:

Overall Budget Range

Total Construction Cost: ₹16–24 Lakh (depending on city, finishes, and materials)

This breaks down as:

• ₹20/sq ft (basic finish): ₹16 Lakh total
• ₹30/sq ft (mid-range): ₹24 Lakh total
• ₹35/sq ft (premium): ₹28 Lakh+ total

Cost Breakdown by Component

Component	Percentage	Amount (Mid-Range)
Structure (Foundation + RCC Frame + Brickwork)	40–45%	₹6.4–7.2 L
Finishes (Flooring, Plastering, Painting, Doors)	25–30%	₹4–5.4 L
Fittings (Kitchen, Bathrooms, Windows, Hardware)	15–20%	₹2.4–3.6 L
MEP (Electrical, Plumbing, AC, Solar if any)	8–10%	₹1.3–1.8 L
Design & Planning Fees	3–5%	₹0.5–0.8 L

Per-Floor Cost Distribution

• Ground Floor: Higher cost due to foundation work — ₹4.5–5 L
• First Floor: Mid-range cost — ₹4–4.5 L
• Second Floor: Mid-range cost — ₹4–4.5 L
• Third Floor: Slightly lower (less load) — ₹3.5–4 L

City-Specific Variations

• Tier-1 cities (Delhi, Mumbai, Bangalore): ₹24–32 L
• Tier-2 cities (Pune, Ahmedabad, Jaipur): ₹16–24 L (baseline used above)
• Tier-3 cities (Smaller towns): ₹12–18 L

Horizontal stacked bar or pie chart, "Structure 40% ₹6.4L", "Finishes 27% ₹4.3L", "Fittings 18% ₹2.9L", "MEP 9% ₹1.4L", "Design 5% ₹0.8L", total ₹24L highlighted, Ongrid green color scheme. Design by Ongrid.

Cost-Saving Tips for 20×40 Homes

1. Simple roof design: Flat RCC slab is cheaper than pitched/sloped roofs
2. Standardized room sizes: Avoid irregular shapes that waste material
3. Bulk material ordering: Buy cement, steel, and bricks in bulk for better rates
4. Phase construction: Build ground + first floor, then second/third as finances allow
5. DIY finishing: You can handle painting, tiling, and basic carpentry to reduce labor costs

Frequently Asked Questions

Can I build a 4-floor home on a 20×40 plot legally?

Yes, in most Indian cities. However, zoning regulations and floor-space index (FSI) limits vary by location. In tier-2 cities, FSI is typically 1.5–2.5, allowing multi-story construction on small plots. Check with your local municipal corporation for plot-specific restrictions, setbacks, and height limits. Ongrid can help verify compliance for your city.

What's the advantage of north-facing for a 4-floor building?

North-facing ensures consistent, diffused light on all floors without the afternoon heat that south/west-facing homes experience. This reduces cooling costs significantly and improves comfort. Plus, north is vastu-auspicious for wealth and prosperity.

Is a 20×40 plot too narrow to build comfortably on?

Not at all. A 20-foot width allows for comfortable room sizes: a 10×12 ft master bedroom is standard, a 8×10 ft secondary room, bathrooms, and kitchen all fit within that footprint. The 40-foot depth provides the length. Thousands of Indian homes are built on similar plots.

Can I have a car parking space on a 20×40 plot?

Yes. Ground-floor parking (car parked inside, under a cantilever) is the standard for such plots. A typical car needs 8×10 ft; a 20×40 plot can accommodate one compact parking bay. Scooters/motorcycles fit easily. Larger vehicles may need an external parking arrangement.

What's the construction timeline for a 4-floor home?

Typically 14–18 months from foundation to move-in, depending on labor availability and material procurement. Ground floor alone takes 4–5 months. Each additional floor adds 3–4 months.

Can I use different finishes on different floors?

Absolutely. Many homeowners use basic finishes (simple paint, basic tiles) on rental floors and premium finishes (modular kitchen, granite, false ceiling) on their personal floors. This reduces overall cost while maintaining quality where you live.

Is a 20×40 plot suitable for a commercial use on ground floor?

Yes. The ground floor can be designed as a shop, clinic, salon, or small office, with separate entry to keep commercial and residential traffic separate. This generates rental income (₹15–25K/month in tier-2 cities) to offset home loan EMI.

What are the best materials for north-facing walls?

North-facing walls don't get direct sun, so heavy materials like brick/stone work well and age gracefully. Mix with white cement plaster on upper floors for brightness. Avoid dark colors on south/west walls—use light colors to reflect heat.

Can I renovate or extend this design later?

Yes. A well-planned foundation and structural system allows for vertical or horizontal extensions. However, municipal regulations may limit further construction once FSI is reached. Plan ahead with your architect.

How long does the north-facing light benefit last in winter?

North light is consistent year-round in India. Even in winter, northern windows provide steady illumination without harsh shadows. You'll rarely need to turn on lights during the day in north-facing rooms.

Design Your Dream Home with Ongrid

A 20×40 north-facing 4-floor home is an excellent choice for Indian families seeking maximum space on a compact plot while maintaining vastu alignment and comfort. Whether you're a first-time builder, investor, or growing family, this plan demonstrates how smart design can transform a narrow urban plot into a functional, beautiful multi-generational home.

At Ongrid, we specialize in precisely these situations. Our architects have designed 500+ homes on constrained plots across Indian cities. We understand local building codes, vastu principles, and how to maximize every square foot without sacrificing quality or livability.

Ready to transform your 20×40 plot?

• Get this plan customized for your exact plot, municipal rules, and budget — ₹4,999 for a ready plan, ₹22–25/sq ft for custom architecture
• Explore similar plots: Browse our 20×30 house plans, 25×40 designs, and 40×60 luxury homes
• Understand your site better: Use our construction cost calculator to estimate your exact budget
• Talk to an architect: Book a consultation to discuss vastu, FSI, and municipal compliance for your city — Start Design

Every home tells a story. Let's build yours.

---
