40x60 House Plan | 4 Floor East Facing Design
A 40x60 house plan 4 floor east facing is one of the most financially rewarding configurations you can build in urban India today. On a 2,400 sq ft plot, a G+3 east-facing design gives you four independent living levels. The ground floor becomes your private owner's suite. The three upper floors become fully rentable 2BHK units, each bathed in the morning sun that Vastu-conscious tenants actively seek. This article covers the complete design logic, floor-by-floor layouts, Vastu placements, 3D elevation details, and realistic construction costs for this configuration.

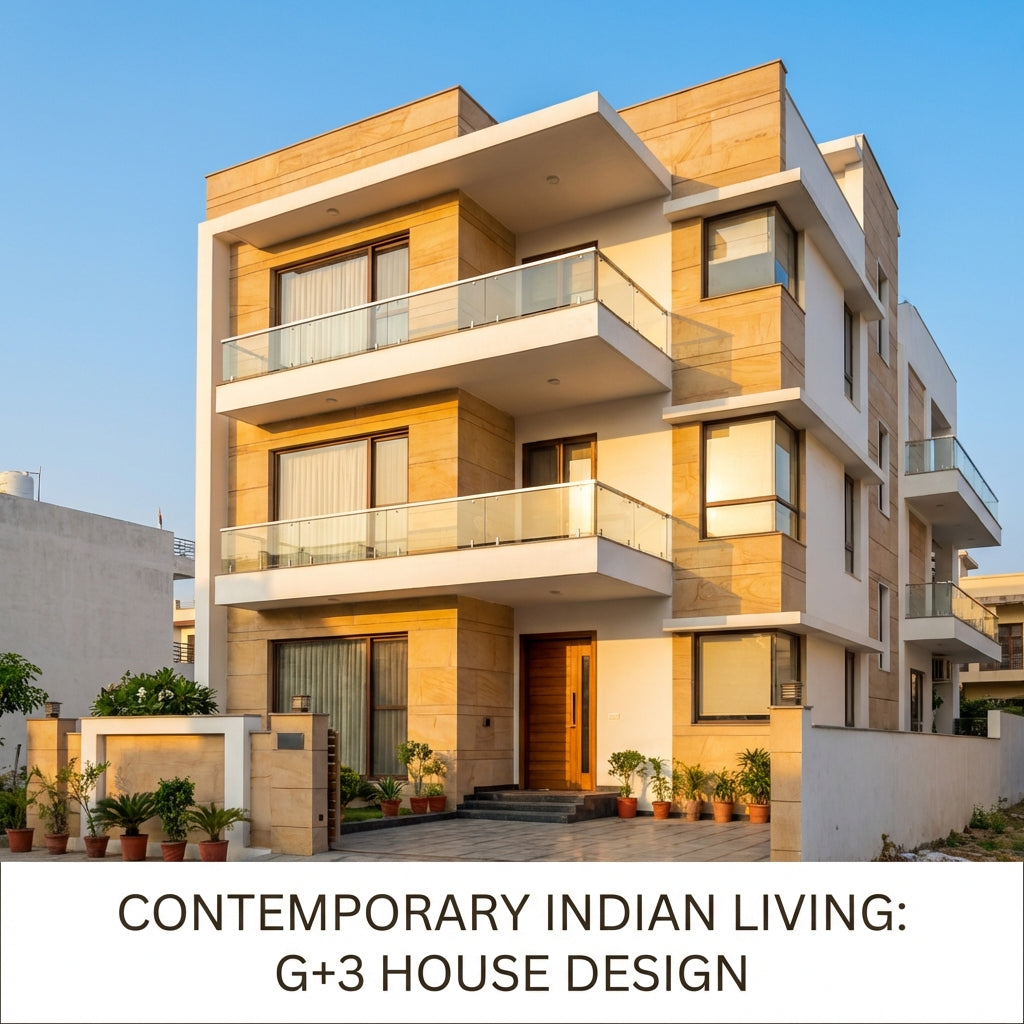

Contemporary G+3 east facing design on a 40×60 ft plot — staggered balconies on every floor capture morning light while adding facade depth
The East Sunrise Income Stack — Why This G+3 Configuration Works
Most people approach a four-floor house purely as space for a large family. On a 40x60 east-facing plot, the G+3 configuration does something more powerful. It creates what we call the East Sunrise Income Stack.
East-facing homes command a documented rental premium across Bangalore, Hyderabad, Chennai, and Pune. Rental listings consistently show east-facing 2BHK units renting 8–12% higher than identical west-facing units in the same locality. The driver is straightforward. Tenants from South Indian, North Indian, and pan-Indian backgrounds associate east-facing with Vastu compliance, morning light, and positive energy. They pay more for it.
On a 40x60 G+3 plot, every floor above ground is a potential independent 2BHK. Each has its own kitchen, two bedrooms, a bathroom, and an east-facing balcony. Three rental units, each earning a Vastu premium, compound into a substantial income stream over the years. Your ground floor stays as your private owner's suite — spacious, quiet, and completely separate from tenants.
This is not a niche investment idea. It is the most common goal Ongrid's architects hear from clients who own east-facing plots of this size. The G+3 east design simply makes financial sense here in a way that it does not on smaller plots or non-east-facing orientations.
East orientation means direct morning sunlight hits all four floors — no floor is shadowed by the building itself during the most valuable part of the day
40x60 House Plan Key Specifications
Before going floor-by-floor, here is the essential data for this 40x60 house plan 4 floor east facing:
| Parameter | Details |
|---|---|
| Plot dimensions | 40 ft × 60 ft |
| Plot area | 2,400 sq ft |
| Floors | Ground + 3 upper (G+3) |
| Facing | East |
| Built-up area (all floors) | 5,200–5,800 sq ft |
| Usable area per floor | ~1,380–1,440 sq ft |
| Typical setbacks | Front: 6 ft, Rear: 4 ft, Sides: 3 ft each |
| Built footprint per floor | ~31×52 ft gross |
| Parking | 2 cars + two-wheelers (north compound side) |
| Staircase | Internal RCC, with lockable landing per floor |
With standard municipal setbacks applied, your built footprint per floor is approximately 31×52 ft = 1,612 sq ft gross. After deducting walls and staircase area, usable space per floor is 1,380–1,440 sq ft. That is roughly 5,500 sq ft of usable area across all four floors.
Floor-by-Floor Layout Breakdown
Ground Floor — Owner's Private 3BHK Suite
The ground floor is designed as a self-contained 3BHK owner's suite. The east-facing entrance opens into a generous foyer. From there, the layout branches into a combined living-dining area and a private bedroom-utility wing.
Ground floor — 3BHK owner's suite with main entrance on the east, master bedroom in the south-west, and kitchen in the south-east Vastu zone
Key rooms and dimensions:
- Foyer/Entry: 7×6 ft — east-facing double-leaf teak door, natural light throughout the day
- Living room: 15×17 ft — faces east, direct morning light, connects to foyer and dining
- Dining area: 12×12 ft — north-east zone, connects to living room and kitchen
- Master bedroom: 14×15 ft — south-west per Vastu, 5×9 ft attached bathroom
- Bedroom 2: 12×13 ft — south side, attached bathroom
- Bedroom 3 / Pooja room combo: 10×11 ft bedroom with 5×5 ft dedicated pooja niche in the north-east corner
- Kitchen: 9×11 ft — south-east corner per Vastu, cook faces east
- Utility/Store: 7×9 ft — rear side, service access
- Common toilet: 5×8 ft — near entry for visitors
- Car parking: two vehicles in north compound, covered or open
The ground floor receives better finishes than upper rental floors. Marble or vitrified tile flooring, teak wood door frames, and private garden access mark it as the owner's home.
First Floor — Independent 2BHK Rental Unit
The first floor functions as a completely self-contained 2BHK. It shares no common areas with the ground floor except the staircase, which has a lockable door at each landing.
First floor — independent 2BHK rental unit with 5×8 ft east-facing balcony and Vastu-aligned kitchen in the south-east
Key rooms and dimensions:
- Living room: 14×15 ft — east-facing, connects to 5×8 ft balcony
- East balcony: 5×8 ft — key rental premium driver, overlooks the street
- Master bedroom: 13×14 ft — south-west placement, 5×8 ft attached bathroom
- Bedroom 2: 11×12 ft — south side, common bathroom access
- Kitchen: 9×10 ft — south-east corner
- Dining alcove: 10×11 ft — flows from living
- Common bathroom: 5×7 ft
- Staircase lobby: 4×8 ft — private entry with lockable door
The east-facing balcony is a consistent rental driver. Tenants rank outdoor morning sitting space among their top three preferences. A dedicated 5×8 ft balcony with sunrise views makes this unit significantly more attractive than comparable apartments.
Second Floor — Mirror 2BHK with Larger Balcony
The second floor mirrors the first floor layout with two strategic improvements. The balcony is extended to 6×9 ft. Ceiling height increases to 10 ft, improving both light on this floor and thermal performance on the third floor above.
Second floor — 2BHK rental unit with extended 6×9 ft east balcony and 10 ft ceilings for enhanced ventilation and natural light
Key rooms and dimensions:
- Living room: 14×15 ft — east-facing with 6×9 ft extended balcony
- Master bedroom: 13×14 ft — south-west, 5×8 ft attached bathroom
- Bedroom 2: 11×13 ft — slightly larger than first floor version
- Kitchen: 9×10 ft — south-east corner
- Dining space: 10×11 ft
- Common bathroom: 5×7 ft
Higher floors typically command slightly lower rent due to stair preference among older tenants. The larger balcony partially offsets this on the second floor. In most Indian localities, the second floor east-facing unit rents within 5% of the first floor rate.
Third Floor — Penthouse 2BHK with Private Terrace
The third floor is your premium rental unit. It has the best views, cleaner air, and exclusive access to a private terrace deck.
Third floor — 2BHK penthouse configuration with 8×10 ft private east-facing terrace deck — the unit that commands the highest rental premium in this stack
Key rooms and dimensions:
- Living room: 13×14 ft — east-facing, connects to 8×10 ft private terrace deck
- Private terrace deck: 8×10 ft — east-facing, open to sky
- Master bedroom: 13×14 ft — south-west, 5×8 ft attached bathroom
- Bedroom 2: 11×12 ft
- Kitchen: 9×10 ft — south-east corner
- Dining: 10×10 ft
- Common bathroom: 5×7 ft
In many rental markets, a third-floor east unit with a private terrace earns 10–15% more than the equivalent second-floor unit. Young professionals and small families specifically seek this configuration for morning outdoor time, remote work space, and weekend leisure.
The remaining roof area above the third floor bedrooms becomes a common terrace for clothesline, solar panels, and the overhead water tank.
East Facing Vastu Compliance for G+3
An east-facing G+3 house has inherent Vastu advantages. The main entrance is already in the most auspicious direction. Correct Vastu on a four-floor design requires consistent placement across all floors, not just the ground floor.
Vastu grid applied to the 40×60 east facing G+3 — east and north-east zones kept open and unobstructed on every floor
Here are the Vastu principles applied in this design:
Main entrance: East or NE sector, at or slightly north of centre. This is the Vastu default for east-facing plots. It is the primary reason clients specifically seek east-facing plots.
Kitchen: South-east corner (Agneya zone) on every floor. The cook faces east while working. This placement works on the ground floor owner suite and each rental unit above.
Master bedroom: South-west corner (Nairutya zone) on every floor. Head should point south or west during sleep. This is maintained consistently across all four floors.
Pooja room: North-east corner (Ishanya zone) on the ground floor. Upper floor rental units have a small altar niche in the NE corner of the living room.
Staircase: North-west internal zone. The staircase runs along the north-west wall, keeping the east and north-east zones fully open on every floor.
Balconies: East-facing on all floors. This is the single most important Vastu feature in this design. Open, unobstructed east space on every level.
Overhead tank: North portion of the terrace. Never south-east (fire zone conflict) or south-west (Vastu weight zone).
If your family's specific birth chart requires custom adjustments, Ongrid's architecture team can adapt placements while maintaining full structural and zoning compliance. Read more in the architects' guide to Vastu-compliant design.
3D Elevation and Exterior Design
The exterior of a 40x60 G+3 east-facing house carries significant visual presence. Four floors require a facade strategy that is both attractive and honest in its proportions.
Facade detail — staggered balconies create visual rhythm while self-shading each floor from harsh noon sun, stone cladding on lower floors reduces long-term maintenance
Staggered balconies: Each floor's balcony is offset 1–2 ft from the floor below. This creates rhythm on the facade, reduces perceived height, and provides partial afternoon shade on each balcony from the one above.
Textured lower two floors: The ground and first floor facades use exposed brick or stone cladding. Upper floors use lighter plaster finishes. This grounds the building visually and reduces scuff-mark maintenance on street-level surfaces.
Large east-facing windows: Living rooms on all four floors have 5×5 ft glazed windows with 18–24 inch chajja projections. Winter morning sun enters below the chajja angle. Summer sun above 60° elevation is blocked.
Third-floor setback: The penthouse floor is stepped back 2 ft on the east facade to create the terrace deck. This also reduces perceived building height from street level.
For more exterior inspiration, browse Ongrid's collection of three-storey and four-storey home elevation designs and the 200 modern house elevation designs gallery.
Construction Cost for 40x60 G+3 East Facing
Four complete floors on a 40x60 plot involves substantial construction. Here is a realistic breakdown.
Cost breakdown for 40×60 G+3 east facing construction — structure typically 45–50% of total budget, finishes 25–30%
Total built-up area: approximately 5,400–5,800 sq ft across all four floors.
Tier-wise construction cost (per sq ft of built-up area):
| Tier | Rate per sq ft | Total estimate at 5,600 sq ft |
|---|---|---|
| Tier 3 — Standard finishes | ₹1,200–2,000 | ₹67 lakh – ₹1.12 crore |
| Tier 2 — Mid-range finishes | ₹1,500–2,500 | ₹84 lakh – ₹1.40 crore |
| Tier 1 — Premium finishes | ₹2,000–3,500 | ₹1.12 crore – ₹1.96 crore |
Most clients building for rental income choose Tier 2 for the three upper rental floors and Tier 1 for the ground floor owner suite only. This hybrid approach typically brings the total construction budget to ₹95 lakh–₹1.30 crore, depending on city and material choices.
Approximate per-floor budget (Tier 2 rental floors, Tier 1 ground floor):
- Ground floor owner suite (Tier 1): ₹28–35 lakh
- First floor rental unit: ₹20–25 lakh
- Second floor rental unit: ₹20–25 lakh
- Third floor penthouse + terrace: ₹22–28 lakh
- Common areas, compound wall, services: ₹8–12 lakh
Use Ongrid's construction cost calculator for a city-specific estimate. Costs vary 20–30% between metros and Tier-2 cities. Review Ongrid's pricing page for design fee structures.
Rental Yield Advantage of the East Facing G+3
Let us look at the numbers that make the East Sunrise Income Stack compelling.
Morning light on the east-facing balcony — a feature that consistently drives both occupant wellbeing and measurable rental premium
In a mid-market Bangalore locality — Whitefield, Sarjapur, or Hebbal — a 2BHK east-facing apartment in an independent house rents for ₹20,000–28,000 per month. Your three upper floors therefore generate:
- First floor rental: ₹22,000/month
- Second floor rental: ₹20,000/month
- Third floor (penthouse with private terrace): ₹24,000/month
- Total monthly rental income: ₹66,000
- Annual rental income: ₹7.92 lakh
Against a construction cost of ₹1.10 crore (mid estimate), this represents a gross rental yield of approximately 7.2%. That exceeds most fixed-income instruments and compares favourably to commercial property yields, all while you occupy the ground floor rent-free.
In Hyderabad's HiTech City corridor or Chennai's OMR belt, similar calculations produce 6–9% gross yield depending on micro-location. The east-facing Vastu premium consistently adds 0.5–1% to effective yield compared to identical west-facing configurations.
This is why the 40x60 east facing 4 floor house plan is not just a family home. It is a structured asset-building strategy for urban landowners across India. For more context on building for long-term value, read Ongrid's home building guide and the beginners' guide to planning your home.
How Ongrid Can Help You Design This
A G+3 house is a multi-year investment commitment. Getting the design right at the briefing stage — particularly Vastu compliance, structural column grid, and floor-to-floor rental unit planning — determines whether your upper floors attract premium tenants or sit vacant.
Ongrid's COA-certified architects have designed over 800 residential projects across India. For a 40x60 G+3 east-facing design, the Ongrid process covers:
- Site assessment — Plot orientation, setback requirements, and local bylaws
- Conceptual floor plans — Ground floor owner suite plus three rental unit layouts
- 3D elevation design — Front, side, and rear views with material palette
- Structural drawings — RCC column grid, beam spans, slab thickness for four floors
- MEP drawings — Plumbing, electrical, drainage routing across all floors
- BOQ and cost estimate — Material quantities and city-specific rates
Explore the service options that match your needs:
- Home Design Lite — Floor plans and elevations starter package
- HomeBluePrints Advance Plus — Complete G+3 drawing set for construction and municipal approval
- Custom Home Plans — Fully bespoke design for unique site or family requirements
- Book an architect consultation — Speak directly with a COA-certified architect
Also browse: complete set home plans, duplex elevation ideas, and the home design hire service for a fully managed design experience.
Frequently Asked Questions
What is the total built-up area of a 40x60 G+3 house?
On a 40×60 ft (2,400 sq ft) plot, a G+3 design yields approximately 5,200–5,800 sq ft of total built-up area across all four floors. The exact figure depends on local municipal setback rules — typically 5–6 ft front, 3–4 ft rear, and 3 ft on each side. After applying these setbacks, each floor has roughly 1,380–1,440 sq ft of usable space. Multiply across four floors for the total. Your architect will calculate the precise permissible built-up area based on your municipality's Floor Space Index (FSI) limits.
How much does it cost to build a 40x60 G+3 east facing house?
Construction cost for this configuration ranges from ₹67 lakh to ₹1.96 crore depending on finish quality. Tier-3 (standard finishes) runs ₹1,200–2,000 per sq ft; Tier-2 (mid-range) runs ₹1,500–2,500; Tier-1 (premium) runs ₹2,000–3,500. Most clients building for rental income use a hybrid approach — Tier 1 for the ground floor owner suite, Tier 2 for upper rental floors. That hybrid budget typically lands between ₹95 lakh and ₹1.30 crore depending on your city. Use Ongrid's cost calculator for a location-specific estimate.
Is east facing better for a G+3 house from a Vastu perspective?
Yes, consistently. East is the most auspicious direction for the main entrance in Vastu Shastra. In a G+3 design, this advantage multiplies — every floor gets the Vastu-compliant east entrance, morning light enters living rooms directly, kitchens can be correctly placed in the south-east, and east-facing balconies on every floor remain open and unobstructed. From a practical standpoint, east-facing rooms are naturally lit during the work-from-home hours of 8 am–12 pm and avoid the harsh western afternoon heat — a real comfort advantage in South and Central India's climate.
Can each floor of a 40x60 G+3 house be rented independently?
Yes, provided the design includes a lockable door at each staircase landing, an independent kitchen, and at least one bathroom on every upper floor. This is exactly how Ongrid designs G+3 rental-intent houses. Municipal regulations in Bangalore, Hyderabad, Chennai, and most Tier-2 cities permit independent floor rentals in residential buildings. You will need an occupancy certificate for the full building and should confirm tenancy documentation requirements with your local authority before leasing floors separately.
How many parking spaces can a 40x60 plot accommodate?
A 40×60 plot comfortably accommodates two car parking spaces and dedicated two-wheeler parking within the compound. The north side of the plot — after the front setback — is typically used for covered or open parking. This leaves the full building footprint available for constructed space. In some municipal zones, a basement level is permitted, which can house 3–4 cars entirely underground and free up the compound completely for landscaping or additional built area.
What floor height is recommended for rental units in a G+3 house?
A minimum finished floor-to-ceiling height of 10 ft is the recommended standard for rental 2BHK units. Taller ceilings make rooms feel more spacious, aid cross-ventilation, and reduce perceived heat in South Indian summers — all factors that tenants notice and that support higher rent. The ground floor owner suite can go to 11–12 ft for a grander feel. Maintaining 10 ft consistently on upper floors does not significantly increase structural cost in a standard RCC-framed G+3 building.
What is the expected rental yield from a 40x60 G+3 east facing house?
In mid-market Bangalore localities, three independent 2BHK east-facing units on a G+3 plot typically generate ₹60,000–72,000 per month combined (₹20,000–24,000 per unit). Against a total construction cost of ₹1.00–1.30 crore, this represents a gross rental yield of 5.5–8.6% per year. The east-facing Vastu premium adds an estimated 0.5–1% to effective yield compared to equivalent west-facing units. Hyderabad and Pune corridors with strong IT tenant demand can achieve the upper end of this range.
