40x50 House Plan | 2 Floor North Facing Design

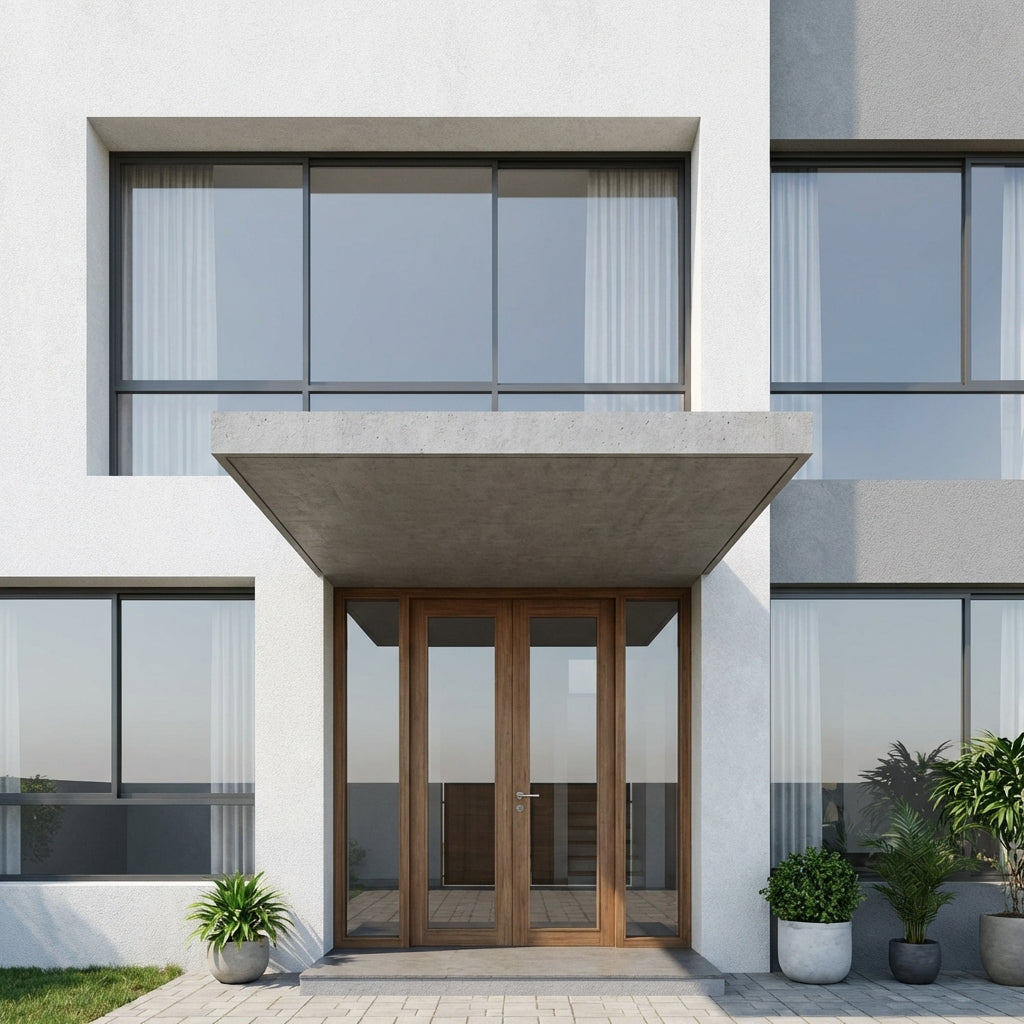

A contemporary G+1 designed for a north-facing 40×50 plot — clean lines, a north-lit facade, and Vastu-aligned layout
A 40x50 house plan 2 floor north facing is one of the most sought-after residential configurations in Indian cities today. North-facing plots carry Vastu compliance as a baseline — but there's a technical advantage most homeowners miss entirely. Because India sits in the northern hemisphere, the sun always arcs to the south. Your primary facade — the one that faces the street on a north-facing plot — never receives harsh direct sunlight. On a single floor, you benefit once. On a G+1 design, this advantage multiplies across every room on both levels. The result is a home that stays naturally cooler, glare-free, and more comfortable to live in without expensive sun-shading interventions.
This guide walks you through a complete 40×50 north facing 2-floor house plan: room-by-room layouts for both floors, Vastu placements, elevation design options, realistic construction cost estimates, and how Ongrid can take your plan from concept to approved working drawings.
The North Passive Comfort Advantage in a G+1 Design
Most conversations about north-facing plots start and end with Vastu. That's a good foundation — but it's only half the story.
The bigger advantage is thermal. In tropical Indian cities like Bengaluru, Hyderabad, Pune, and Chennai, summer months (April–June) push afternoon temperatures past 38–42°C. West-facing homes absorb four to five hours of direct afternoon sun on their primary wall, driving up indoor temperatures and cooling loads significantly.
A north-facing home doesn't have this problem. The north wall receives only diffuse skylight throughout the day, every day, year-round. On a single-floor home, your living room stays comfortable. On a G+1, every room on both floors — the living room below, the family lounge and bedrooms above — benefits from the same orientation. You don't need expensive double-glazed windows or sun-shading fins on the primary elevation.
Compared to a west-facing plot of the same size, a well-designed north-facing G+1 typically carries 20–30% lower cooling load during peak summer. Over a ten-year ownership horizon, that difference translates to ₹1.5–3 lakhs in electricity savings — a meaningful return that doesn't show up on most cost-benefit analyses.
Sun path diagram for a north-facing 40×50 plot in Bengaluru — the primary facade stays in soft, diffuse light throughout the year
Ground Floor Layout of the 40×50 North Facing 2-Floor House Plan
A well-designed ground floor on a north-facing 40×50 plot balances an open, welcoming north entry with functional service zones pushed toward the south. Here's how the rooms lay out:
Sit-out and Porch (8×10 ft)
The north-facing entry gets a wide, generous sit-out. Because this side of the home never faces direct sunlight, the sit-out stays naturally shaded and pleasant throughout the day. This is where your main door sits — ideally in the north or northeast zone per Vastu. A double door here creates a welcoming street presence.
Living Room (14×16 ft)
Just inside the entry, the living room faces north and benefits from bright, even daylight all day without glare. Large windows here — even floor-to-ceiling ones — bring in light without solar heat gain. No need for heavy curtains or blinds on the street-facing wall.
Dining Area (10×12 ft)
Positioned centrally between the living room and kitchen, the dining area connects both zones without being a pass-through. A 10×12 dining area comfortably seats six and allows space for a sideboard or bar unit.
Kitchen (10×12 ft) — Southeast Corner
Vastu places the kitchen in the southeast — away from the north entry and toward the back of the house. This also keeps cooking heat and odours at the south end, away from primary living and sleeping zones.
Puja Room (5×6 ft) — Northeast
The northeast corner, or Ishaan zone, is reserved for the puja room. On a north-facing plot, this corner sits at the intersection of the street and the east side — well-lit by morning sun, energetically auspicious, and separate from daily traffic.
Ground Floor Bedroom (12×13 ft) — Southwest
A ground floor bedroom in the southwest zone suits elderly parents, in-laws, or guests. It has an attached bathroom (5×8 ft), giving it full independence from the rest of the house. This room can also be designed as a lockable rental unit with a separate entry from the side.
Utility and Wash Area (6×8 ft)
The south-facing utility area handles laundry, storage, and back-entry access. Keeping it at the south rear keeps noise and clutter away from the living zones.
Ground floor layout — north entry porch, SE kitchen, NE puja room, SW bedroom, central living and dining
First Floor Layout — Bedrooms, Family Lounge & South Terrace
The first floor on a 40×50 north facing G+1 is your private floor. This is where the family retreats after hours — bedrooms, a shared family lounge, and a partially open terrace.
Master Bedroom (14×15 ft) — Southwest
Vastu strongly recommends the master bedroom in the southwest. On the first floor, the southwest corner is also the most private — away from street noise and removed from the staircase landing. An attached master bath (6×8 ft) with a window to the south or west completes this suite.
Bedroom 3 (12×13 ft) — East Side
A secondary bedroom on the east side benefits from morning light — natural for children's rooms or a home office. The 12×13 ft footprint allows a double bed plus study table without feeling cramped.
Bedroom 4 (11×12 ft) — North Side
A fourth bedroom facing north gets calm, diffuse light throughout the day. This makes it ideal for a work-from-home setup, study room, or guest bedroom — spaces where steady, glare-free light is a functional advantage.
Family Lounge (10×12 ft) — North
A semi-open family lounge on the north side of the first floor extends your living space upward. Morning tea here, overlooking the street, with no direct sun in your face. This space works as a TV lounge, reading area, or informal gathering spot for the family.
Common Bathroom (5×8 ft)
Serving bedrooms 3 and 4, positioned in the northwest zone — away from puja and kitchen directions.
South Terrace (partial open)
The south side of the first floor opens to a utility-cum-leisure terrace. You can use this for drying clothes, container gardening, or as a future covered extension if family needs grow.
First floor layout — master bedroom SW, bedrooms on east and north, family lounge north, south terrace
Vastu Guidelines for a North-Facing 40×50 G+1
North-facing plots are Vastu-preferred. The north direction is governed by Kubera, the deity of prosperity. A properly planned G+1 on a north-facing plot aligns major zones with this orientation and keeps energy flow unobstructed from north to south.
Here are the essential Vastu placements for your 40×50 north facing 2-floor plan:
| Zone | Placement |
|---|---|
| Main Door | North or Northeast |
| Living Room | North or Northeast zone |
| Kitchen | Southeast corner |
| Puja Room | Northeast (ground floor) |
| Master Bedroom | Southwest (first floor) |
| Children's Room | Northwest or North |
| Staircase | South or Southwest |
| Bathrooms | Northwest or South — never Northeast |
| Overhead Water Tank | Southwest |
| Balcony / Sit-out | North or East |
The staircase placement deserves emphasis. In a G+1 design, the instinct is often to place stairs centrally for access convenience. Vastu recommends south or southwest — this preserves the energetically important northeast corner for the puja room and keeps the open, auspicious north zone free for living spaces.
If you're working with a Vastu consultant alongside your architect, share these zone priorities early. It's far easier to align the design at layout stage than to retrofit placements later. Ongrid's architecture services include Vastu consultation built into the design brief.
Vastu energy grid for a north-facing 40×50 plot — zone-wise placement guide for a G+1 home
3D Elevation Design Options for Your 40×50 North Facing G+1
A north-facing elevation has a distinct visual quality. Because the main facade is permanently in soft, diffuse light — no harsh afternoon shadows, no glare washing out details — design elements like cladding textures, brick patterns, and window frames read cleanly at all times of day.
Contemporary Flat-Roof Style
Clean horizontal lines, large north-facing windows, a floating canopy above the entry, and a mix of exposed concrete and textured plaster. This works particularly well for urban plots in Bengaluru, Hyderabad, and Pune. The flat roof also provides usable terrace space on top.
Modern Traditional Blend
A sloped Mangalore-tile roof with contemporary detailing — warm tones in the facade, arched or rectangular window frames with moulding, and a decorated entry porch. This style suits semi-urban plots and tier-2 city buyers who prefer a traditional aesthetic without going fully vernacular.
Compact Minimalist
A budget-conscious but design-forward approach: smooth plaster in off-white or grey, bold geometric window shapes, and a single accent wall in a contrasting material — brick, stone cladding, or wood-finish aluminium. This is ideal if you're building in the ₹2,000–2,500/sqft tier and want a home that photographs well and ages gracefully.
For reference and inspiration, browse Ongrid's collection of 50+ duplex elevation designs or the broader 200+ modern house elevation gallery before finalising your elevation style with your architect.
Contemporary flat-roof elevation design for a 40×50 north-facing G+1 — floating canopy, large north windows, textured plaster facade
Construction Cost Estimate for a 40×50 Two-Floor North Facing Home
Your 40×50 plot gives you 2,000 sq ft of land. After accounting for mandatory setbacks (typically 5–8 ft front, 2–3 ft sides in most Indian municipalities), your built-up area per floor comes to approximately 1,100–1,300 sq ft. A G+1 design yields a total built-up area of 2,200–2,600 sq ft across both floors.
Here's a tier-wise construction cost estimate based on a 2,400 sq ft built-up area:
| Build Tier | Rate (₹/sq ft) | Estimated Total |
|---|---|---|
| Tier 3 — Basic | ₹1,200–2,000 | ₹29–48 lakhs |
| Tier 2 — Standard | ₹1,500–2,500 | ₹36–60 lakhs |
| Tier 1 — Premium | ₹2,000–3,500 | ₹48–84 lakhs |
These figures cover structural construction only. Budget an additional:
- 10–15% for interior finishes (flooring, joinery, fixtures, painting)
- 5–8% for external works (compound wall, paving, drainage, landscaping)
- 3–6% for architect and structural engineer fees
The north-facing passive comfort advantage adds a financial dimension to this cost picture: you're likely to spend ₹50,000–1.5 lakhs less on HVAC hardware (fewer or smaller AC units needed) and ₹15,000–25,000 less per year on electricity compared to a west-facing equivalent. Over ten years, that's a ₹2–3.5 lakh return on a design choice that costs nothing extra upfront.
Use Ongrid's home construction cost calculator to get a city-specific, specification-level estimate. For a full breakdown of Ongrid's design packages and pricing, visit the pricing page.
Construction cost breakdown for a 40×50 north facing G+1 — tier-wise estimate from basic to premium finish
Get Your 40×50 North Facing 2-Floor House Plan from Ongrid
Ongrid is a COA-certified online architecture firm that designs and delivers complete house plans for Indian plots. For a 40x50 house plan 2 floor north facing, you get everything you need to start construction: floor plans, elevations, sections, structural drawings, electrical layout, and plumbing — along with 3D visuals and a Vastu-compliant brief.
Here are the service options most relevant to a 40×50 G+1 project:
- Home Blueprints Advance Plus — Complete working drawing set including structural, electrical, and plumbing
- Custom Home Plans — Fully customised design for your specific plot, brief, and finish preferences
- Hire Top Architects Online — Dedicated architect for end-to-end design and project guidance
- Book a Consultation — 30-minute call with an Ongrid architect to scope your project and clarify requirements
Most clients with a 40×50 north-facing G+1 project choose the Custom Home Plans package. It allows you to specify exact room sizes, incorporate a rental unit, and get an elevation design that matches the style you've been visualising.
You can also explore Ongrid's complete set of ready home plans for inspiration, or start with the home building guide if you're at the early planning stage. The homeowner's checklist is also a useful starting point for understanding the full scope of decisions involved.
The north-facing family lounge on the first floor — diffuse daylight, cross-ventilation, and a comfortable year-round temperature without AC dependence
Frequently Asked Questions
Is a north-facing 40×50 plot the best choice for a G+1 home?
North-facing plots are among the most favoured in Indian Vastu, and they carry a genuine thermal advantage in tropical cities. The primary facade never receives direct harsh sunlight — India's sun always arcs south. On a G+1, this benefit extends to living spaces on both floors. Combined with a 2,000 sq ft plot, a north-facing 40×50 gives you a layout that's spacious, thermally efficient, and Vastu-compliant without compromise. For families of four to six members, it is one of the most versatile residential plot configurations available.
How many bedrooms can a 40×50 G+1 north facing plan accommodate?
A well-designed 40×50 G+1 north facing plan fits three to four bedrooms comfortably — typically one on the ground floor (for guests or elderly parents) and two to three on the first floor including the master bedroom. If you prefer larger room sizes or need a dedicated home office, three bedrooms across both floors with a study or work lounge is a popular alternative. Ongrid's custom home plans can be tailored to your exact bedroom count and size preferences.
What is the actual built-up area in a 40×50 two-floor home?
The plot area is 2,000 sq ft (40×50 ft). After mandatory setbacks — typically 5–8 ft front, 2–3 ft sides in most Indian municipalities — your net built-up area per floor is approximately 1,100–1,300 sq ft. A G+1 therefore delivers 2,200–2,600 sq ft of total usable space. The exact figure depends on your city's FAR (Floor Area Ratio) rules and local bylaws. Your architect will confirm the permitted coverage before designing the layout.
How much does it cost to build a 40×50 G+1 house in Bengaluru or Hyderabad?
In Bengaluru or Hyderabad, construction rates in 2026 range from ₹2,000 to ₹3,500 per sq ft depending on finish specification. For a 2,400 sq ft built-up G+1, expect ₹48–84 lakhs in core construction cost. Add 15–20% for interiors, compound wall, and professional fees. For a city-specific, finish-level estimate, use Ongrid's home construction cost calculator. Material prices in your city and contractor quality tier can push costs above or below these ranges.
What are the key Vastu rules for a north-facing 40×50 G+1?
Main door in the north or northeast; kitchen in the southeast corner; puja room in the northeast (ground floor); master bedroom in the southwest (first floor); staircase in the south or southwest; bathrooms in the northwest or south — never in the northeast; overhead water tank over the southwest zone. The most common Vastu error in G+1 designs is placing the staircase in the northeast for central access — this blocks the Ishaan corner and displaces the puja room. Your architect should finalise zone placements before drawing the layout.
Can I add an independent rental unit to a 40×50 G+1 design?
Yes — a 40×50 G+1 is ideal for a dual-use design. The ground floor can function as a fully independent 1BHK unit (living, kitchen, one bedroom, bathroom) with a separate side or rear entry, while the first floor serves as the primary 2–3BHK family residence. This configuration is popular in Bengaluru, Hyderabad, and Pune micro-markets. Independent G+1 homes with a rentable ground unit command 12–18% higher resale premiums in most tier-1 city localities, making this a strong investment decision at design stage.
How long does it take to get a complete 40×50 house plan from Ongrid?
Ongrid typically delivers a complete set of working drawings — floor plans, elevations, sections, structural, electrical, and plumbing — within 7–14 working days from brief finalisation. Custom designs that go through multiple revision rounds may take 3–4 weeks. You can book a consultation to discuss your specific 40×50 G+1 requirements and get a delivery timeline before committing to a package.
