40x50 House Plan | 2 Floor West Facing Design

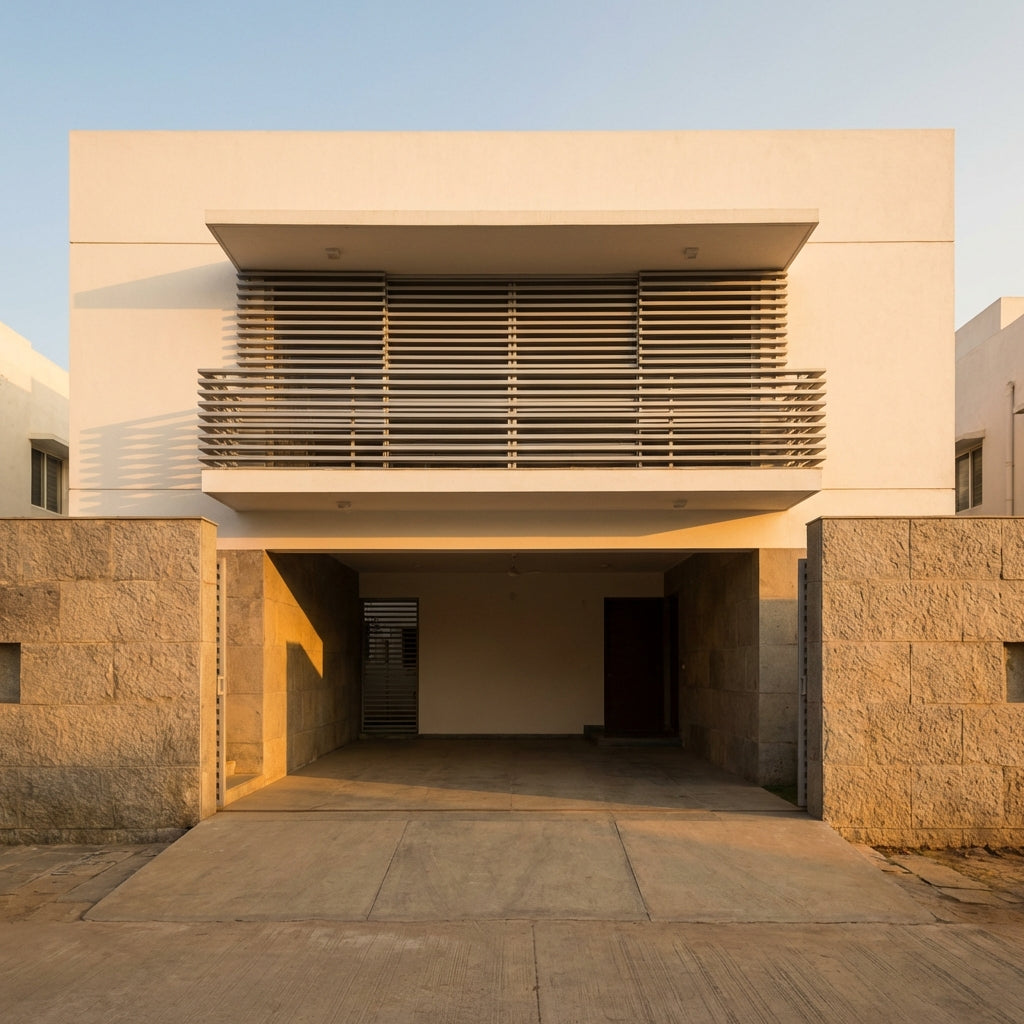

40×50 west facing G+1 elevation — West Buffer Stack design with shaded balcony, recessed entrance, and stone-clad plinth
Most homeowners avoid west-facing plots. That hesitation — driven by Vastu perception and afternoon heat — creates a quiet opportunity. A 40×50 west facing house plan built as a G+1 has a structural advantage that single-floor homes simply don't: thermal buffering.
The ground floor absorbs the afternoon sun. Your upper floor stays cool. Your west-facing balcony becomes the best evening spot in the house.
This guide covers everything your design decision needs — ground and first floor room layouts with real dimensions, Vastu placements specific to west-facing plots, sun path analysis, 3D elevation details, and construction costs by city tier. If you own a 40×50 west plot and are planning a G+1, start here.
Why a 40×50 West Facing Plot Works in G+1
The common complaint about west-facing homes is direct afternoon sun. From roughly 2 PM to sunset, the front face bakes. In a single-floor plan, that heat enters your living room directly. A G+1 configuration changes that equation.
Sun path analysis for a 40×50 west-facing plot — key driver of room placement strategy
On the ground floor, you push service spaces — parking, kitchen, utility, storeroom — toward the west wall. These rooms absorb the heat load. Your living room, dining, and staircase sit deeper in the plan, protected from direct west exposure.
On the first floor, bathrooms and the staircase landing occupy the west side. Bedrooms and the family lounge face north and northeast. Service zones take the afternoon sun on both levels so living zones don't have to.
This is the West Buffer Stack strategy. The 40×50 plot gives you 40 feet of east-to-west width — enough for two rows of rooms with a central corridor. That depth is exactly what makes this design approach work.
Understanding Your 40×50 Plot
Your plot is 40 ft wide (east-to-west) and 50 ft deep (north-to-south), totalling 2,000 sq ft of plot area.
With standard urban setbacks — 3 ft front (west), 2 ft each side, 2 ft rear (east) — your buildable footprint per floor is approximately 35×45 ft, or about 1,575 sq ft. After accounting for staircase, structural walls, and partial ground-floor parking, your typical built-up area (BUA) for a G+1 on this plot runs 2,600–2,800 sq ft across both floors.
This is a comfortable family home. Three bedrooms and two distinct living areas breathe naturally here, unlike the more constrained 30×40 plots common in Indian BDA layouts.
Ground Floor Plan — Functional, Welcoming, West-Smart
Ground floor plan — 40×50 west facing G+1. Service zones on the west wall act as the thermal buffer layer
The ground floor has two jobs: serve as your entertaining and utility level, and act as the thermal shield for the upper floor. Room placement reflects both.
West Zone — Buffer Layer
Covered parking: 10×18 ft (180 sq ft). Double-vehicle capacity, entered from the west. The slab and wall face west directly, absorbing afternoon radiation before it reaches occupied rooms.
Entrance foyer: 6×8 ft. Recessed behind the parking bay with a slim portico overhead. This inset entry reduces direct sun on the front door and creates a comfortable arrival transition.
Central Zone — Living and Dining
Living room: 15×18 ft (270 sq ft). Positioned in the center-north of the plan, away from direct west exposure. North and east-facing windows bring in consistent, glare-free light through the day.
Dining room: 11×12 ft (132 sq ft). Positioned between living and kitchen for natural flow, with a south-facing window for ventilation.
Pooja room: 5×6 ft in the NE corner — correct Vastu placement regardless of plot direction.
East and South Zone — Service and Guest
Kitchen: 10×11 ft (110 sq ft) in the SE corner. Vastu-correct fire zone. Cook faces east. An east-wall window brings in morning light and cross-ventilation throughout the day.
Utility room: 6×7 ft behind the kitchen on the east wall. Washing machine, drying provisions, and bulk storage.
Guest bedroom: 11×13 ft (143 sq ft) on the south side, with an attached 5×7 ft bathroom. Quiet and private — suitable for parents or extended-stay guests.
Common toilet: 4×5 ft near the foyer for visitors.
Staircase: Center-south zone, running north-south. Avoids the NE corner (Vastu-sacred) and SW corner (master bedroom zone on the floor above).
First Floor Plan — Private, Airy, and Buffered
First floor plan — 40×50 west facing G+1. Bathrooms along the west wall continue the thermal buffer strategy from the ground floor
The first floor is entirely private. Three bedrooms, a family lounge, a west-facing evening balcony, and three bathrooms sit comfortably within a 1,350–1,400 sq ft upper floor.
SW Zone — Master Bedroom Suite
Master bedroom: 14×16 ft (224 sq ft). SW corner per Vastu — the largest, most important room sits in the strongest zone. French doors open to the west balcony.
Master bathroom: 6×8 ft attached, positioned on the west wall. The bathroom acts as a secondary thermal buffer between the balcony and the sleeping area.
Walk-in wardrobe: 5×6 ft between the bathroom and the bedroom.
West Balcony — The Evening Payoff
Balcony: 6×10 ft, west-facing. This is the space that makes west orientation genuinely valuable. Once the sun drops below the horizon, this balcony catches the evening breeze and the last golden light. Horizontal aluminium louvers (18-inch fins) block direct afternoon rays from 3–6 PM while preserving the view and airflow.
South Side — Bedroom 2
Bedroom 2: 12×13 ft (156 sq ft). South-facing with north and south cross-ventilation. Ideal for parents — quiet, private, directly above the guest wing below.
Bathroom 2: 5×7 ft attached.
Northeast Zone — Bedroom 3
Bedroom 3: 11×12 ft (132 sq ft). Northeast corner — best position for children's rooms. Morning light, cooler afternoons, farthest from the busy west entrance.
Bathroom 3: 5×6 ft, common, adjacent to Bedroom 3.
Family Lounge
Family lounge / study: 10×12 ft (120 sq ft). Central to the first floor, connecting all three bedrooms. Functions as a TV lounge, homework space, or home library depending on your family's stage of life.
West-Facing Vastu Placement Guide
Vastu grid for 40×50 west facing home — direction-specific placements that differ from east and north-facing designs
West-facing homes follow specific Vastu rules. Generic Vastu advice — often written for east or north-facing plots — does not apply here.
Main entrance: Place the front door in the Sugriva pada (center-west) or Pushpadanta pada (NW portion of the west wall). Avoid the SW corner entry — this is the Pitru (ancestral) zone and is considered inauspicious for the main door on a west-facing plot.
Pooja room: NE corner, ground floor. This placement is universal regardless of plot direction.
Kitchen: SE corner of the ground floor. The cook should face east while working. SE is the Agni (fire) zone in Vastu. A common mistake on west-facing plots is placing the kitchen near the west entry — this violates both the fire-zone rule and exposes the kitchen to maximum afternoon heat.
Master bedroom: SW corner, first floor. The heaviest room with the heaviest furniture belongs in the most stable Vastu zone. On west plots, this corner is also the farthest from the main entrance — combining Vastu correctness with natural privacy.
Staircase: South or SW zone. Never in the NE corner or at the geometric center of the home.
Overhead water tank: SW quadrant of the roof. Adds structural load to the strongest Vastu zone and keeps the NE roof free of heavy elements.
Garage and parking: NW zone of the ground floor front. Aligns with the west entry, keeps vehicular access out of the SE fire zone and the sacred NE zone.
For a broader introduction to Indian home design principles, explore Ongrid's architects guide and the home building guide.
3D Elevation and Design Highlights
Design highlight: louvre screen, deep sun overhangs, stone cladding, and vertical garden — the four signature elements of a well-executed west-facing facade
The west elevation is your home's public face. It faces the street every day. Invest in this elevation and it pays back in kerb appeal, comfort, and resale value.
Deep chajjas (sun overhangs): Minimum 18-inch projection over all west-facing windows and the entrance canopy. A correctly sized chajja blocks direct sun from 11 AM to 3 PM when the sun is highest, while allowing diffuse afternoon light in winter.
Horizontal louvre screen on the balcony: Aluminium or stainless steel fins, 4–6 inches wide, set at a 20–30° downward angle. Blocks direct rays from 2–6 PM while maintaining airflow and preserving the evening street view from the balcony.
Textured stone cladding on the plinth: Rough-cut Kota stone or exposed brick on the lower 3–4 feet of the west facade reduces surface temperature compared to smooth paint, adds visual weight, and ages well in Indian climates.
Recessed entrance with portico: Use the front setback to create a small covered entry alcove. A slim canopy above handles both rain protection and afternoon shade.
Vertical planter strip: A 12-inch-wide climbing plant strip along the west boundary wall or parking bay wall. Even a single layer of greenery can reduce the wall surface temperature by 4–6°C. It also dramatically improves the visual quality of the frontage at low cost.
For elevation design inspiration, browse 50 unique duplex elevation ideas or explore the 200 modern house elevation designs collection from Ongrid.
Construction Cost Estimate for 40×50 G+1
Construction cost breakdown — 40×50 G+1 across city tiers. Total BUA approximately 2,700 sq ft
Total built-up area for your 40×50 G+1 is approximately 2,700 sq ft across both floors. Here is how construction cost varies by city tier:
| Tier | Rate per Sq Ft | Total Construction Cost |
|---|---|---|
| Tier 3 — Basic (smaller cities) | ₹1,200–2,000 | ₹32–54 lakh |
| Tier 2 — Standard (Hyderabad, Pune, Coimbatore) | ₹1,500–2,500 | ₹40–67 lakh |
| Tier 1 — Premium (Bangalore, Mumbai, Chennai) | ₹2,000–3,500 | ₹54–95 lakh |
What Is Typically Included
- Foundation, RCC frame, brickwork, and plastering
- Internal flooring (Tier 3: standard vitrified tile; Tier 1: marble or engineered wood)
- Doors and windows (Tier 3: hardwood frame; Tier 1: UPVC or aluminium sections)
- Electrical conduit, plumbing lines, and sanitary fixtures
- Internal paint (Tier 3: economy emulsion; Tier 1: premium finish with wall putty)
What Is Typically Excluded
- Compound wall, gate, and external site development
- Interior design, modular kitchen, and wardrobes (add ₹5–12 lakh)
- Solar panels, rainwater harvesting, smart home systems
- Architect, structural engineer, and municipal approval fees (typically ₹1.5–4 lakh)
Use Ongrid's home construction cost calculator to refine your estimate based on your specific city, finish specification, and contractor type.
If you're in the early stages, the beginners guide to home building walks through budgeting, contractor selection, and the full timeline from plot purchase to possession.
The West-Facing G+1 Lifestyle Advantage
The west-facing upper balcony — the best evening spot in a thoughtfully planned G+1
There is an aspect of west-facing homes that Vastu guides rarely mention: they are better evening homes.
Indian families live their home life in the evenings. Mornings are rushed — people are showering, eating, leaving. The home gets its real use between 6 PM and 11 PM. On a west-facing G+1, that is precisely when your upper balcony becomes the most pleasant spot in the house.
The afternoon heat has largely dissipated by 5:30–6 PM. What remains is warm golden light, a west breeze, and the street coming alive in the evening. That west balcony, filtered through horizontal louvres, is where your family will choose to spend time.
Compare this with an east-facing home. The east balcony catches beautiful morning sun — pleasant for those who are home and awake at 7 AM. Most families are not. The west-facing 40×50 G+1 is built for the way Indian households actually live. That is not a compromise. That is good design.
Plan Your 40×50 Home with Ongrid
A successful 40×50 west facing house plan requires careful calibration — room sequencing, structural spans, sun shading geometry, and Vastu alignment — all within a real budget and timeline.
Ongrid's architecture services are built for urban Indian residential clients planning homes on plots exactly like yours. Our COA-certified architects have designed G+1 homes on west-facing plots across Bangalore, Hyderabad, Chennai, Pune, and dozens of tier-2 cities. We understand local setback rules, FSI regulations, and soil conditions alongside the aesthetic and Vastu requirements.
Design packages available:
- Home Design Lite — 2D floor plans and basic elevation for early-stage planning
- HomeBluePrints Advance Plus — Full construction drawing set with structural layout, 3D views, and detail drawings
- Custom Home Plans — Fully site-specific design for unique plots or specific family requirements
Ready-made duplex designs are available in the complete set of home plans and the duplex elevation collection.
Book a consultation with an architect to discuss your plot dimensions, family requirements, and budget. The first session includes a 45-minute call and a written design brief summary.
Frequently Asked Questions
Is a 40×50 west facing house plan Vastu-compliant?
Yes. A 40×50 west-facing house is fully Vastu-compliant when designed with the correct placements. The main door goes in the Sugriva or Pushpadanta pada on the west wall — not the SW corner. Pooja in the NE, kitchen in the SE, master bedroom in the SW upper-floor corner, and staircase in the south zone satisfy all core Vastu principles. West-facing is the third most preferred direction in Vastu after north and east. It is not inauspicious — it is simply direction-specific in its requirements.
How many bedrooms fit in a 40×50 G+1 home?
A 40×50 G+1 comfortably holds 3 bedrooms — one guest bedroom on the ground floor and master plus one or two bedrooms on the first floor. With 2,600–2,800 sq ft of built-up area, you can include a 14×16 ft master bedroom, two additional bedrooms of 11–13 ft each, three full bathrooms, a family lounge, covered parking, and a west balcony without the home feeling compact. Four bedrooms are possible with slightly smaller individual room sizes.
What is the construction cost of a 40×50 G+1 in Bangalore?
In Bangalore (Tier 1), construction rates range from ₹2,000 to ₹3,500 per sq ft depending on finish level and structural design. With approximately 2,700 sq ft of built-up area, your total construction cost typically falls between ₹54 lakh and ₹95 lakh. This excludes plot cost, interior design, compound wall, and landscaping. Use Ongrid's home construction cost calculator for a location-specific and specification-adjusted estimate.
How do I reduce afternoon heat in a west-facing house?
The most effective combination: deep projected chajjas (18-inch minimum overhang) over west-facing windows; a double-row room plan placing parking, utility, and bathrooms on the west wall to absorb heat before it reaches living areas; horizontal louvre screens on west-facing balconies; light-coloured or rough stone-clad west facade to reduce surface temperature; and cross-ventilation design using east-facing windows on both floors. In G+1 specifically, the ground floor concrete slab and ceiling also act as a secondary thermal buffer for the first floor.
What is the ideal room placement for a 40×50 west facing house?
Ground floor: covered parking in the NW front, kitchen in the SE corner, living room in the center-north, guest bedroom in the south, pooja room in the NE corner. First floor: master bedroom in SW, bathrooms along the west wall, Bedroom 2 in the south, Bedroom 3 in the NE corner, family lounge in the center. This creates a consistent west-wall service buffer on both floors and places all main living spaces in naturally cooler east and north-facing zones.
What is the FSI for a 40×50 plot in Bangalore or Hyderabad?
FSI for a 40×50 residential plot is typically 1.75–2.25 in Bangalore (varies by BBMP zone) and 1.5–2.0 in GHMC-regulated Hyderabad areas. For a 2,000 sq ft plot, this permits 3,500–4,500 sq ft of built-up area — considerably more than the 2,700 sq ft you would typically build in a G+1. Your actual permissible area depends on your plot's specific zone, setback rules, and any overlay restrictions. Check with your local planning authority or book a consultation for a plot-specific assessment.
Should I buy a west-facing plot if east-facing plots are available nearby?
West-facing plots often trade at a 5–8% discount to comparable east or north-facing plots due to Vastu preference patterns in the Indian resale market. If you are building to live in the home, a well-designed west-facing G+1 with proper thermal buffering is practically as comfortable as an east-facing home — and gives you a better evening outdoor space. If you are buying primarily as a rental or resale investment, east and north-facing plots typically command higher exit prices. The decision depends on your primary use case and your confidence in executing a good thermal buffer design.
