20x40 House Plan | 3 Floor West Facing Design

Imagine stepping into your west-facing home at 5 PM, warm golden light flooding through floor-to-ceiling windows as the day winds down. On a compact 20×40 plot (800 sq ft), this three-story house plan transforms limited ground space into a vertical living solution—perfect for young families, small households, or investment properties. This west-facing design maximizes afternoon and evening natural light while maintaining vastu compliance, delivering practical living at every level.

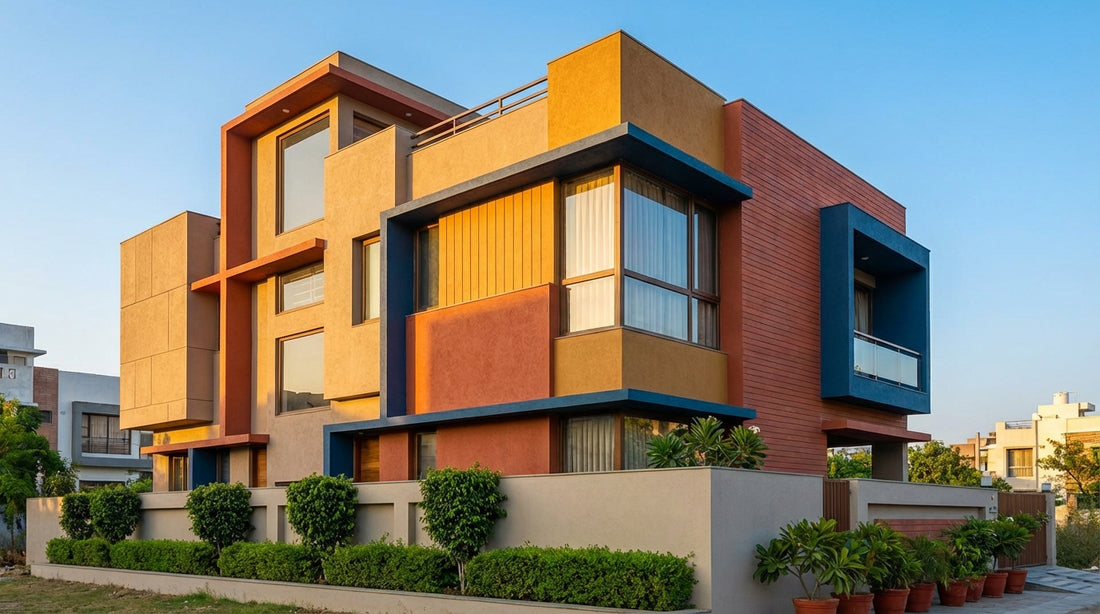

3-story west-facing house on 20x40 plot with afternoon golden light and efficient space design. Design by Ongrid.

What You'll Find in This Guide

• Why Choose a West-Facing 20x40 Plot?
• Floor Plan Overview
• Design Highlights
• Vastu Compliance for West-Facing Homes
• Construction Cost Estimate
• Frequently Asked Questions

Why Choose a West-Facing 20x40 Plot?

A west-facing orientation offers unique advantages for small plots. Unlike east-facing homes that require heavy shading in afternoons, west-facing designs embrace the golden-hour light, creating warm, inviting interiors during peak living hours (4 PM–7 PM). This is ideal for working professionals who spend their mornings away and enjoy their homes from late afternoon onward.

For a 20×40 plot, west-facing brings another benefit: afternoon light naturally illuminates secondary spaces (dining, kitchens, bedrooms) that are often placed on the western half. Proper window placement and shading with jali screens or roller blinds prevent excessive summer heat, keeping interiors comfortable without over-reliance on air conditioning. If you're exploring other directions, check our north-facing and east-facing house plans collections.

The 3-floor format maximizes usable area—delivering three independent functional zones stacked vertically, reducing travel time between daily activities and creating distinct zones for sleeping, living, and working.

Sun path diagram for west-facing homes: afternoon light (3-6 PM) on living areas, minimal morning glare. Design by Ongrid.

Floor Plan Overview

A 20×40 plot provides 800 sq ft of total area. Distributed across three floors, this creates approximately 267 sq ft per floor—highly efficient vertical planning. Each floor serves a distinct purpose while maintaining structural and vastu alignment.

Ground Floor (G)

The ground floor houses the primary entry, kitchen, and main living area—the social spine of the home.

Main Entry & Foyer: 5×8 ft entrance area with a small entry foyer on the western side (main vastu entry direction for west-facing plots). Simple concrete steps with 1:2 slope for accessibility.

Kitchen: 8×10 ft modular kitchen placed in the southeastern corner (SE = fire element in vastu, ideal for cooking). Includes space for a small dining counter and open connection to living room. Adjacent to a 4×6 ft utility area with washing machine and storage for groceries and household supplies.

Living Room: 10×15 ft west-facing living area with large 4×6 ft windows on the western elevation capturing evening light. 9 ft clear height ceiling makes the space feel spacious and airy despite the compact footprint.

Toilet & Washbasin: 5×6 ft attached toilet on the eastern side with natural ventilation through high-level window.

Staircase: Central 4×5 ft staircase with 3-ft clear width, leading to upper floors. Spiral or straight staircase depending on builder preference.

Parking/Entrance Setback: West-facing 5-meter front setback allows compact car parking area (10×18 ft) or garden/landscaping space, meeting municipal regulations.

Ground Floor Total: ~350 sq ft built-up, ~285 sq ft carpet area

Technical ground floor plan: 20x40 ft footprint with entrance, kitchen (SE), living room (west), toilet, and central staircase. Design by Ongrid.

First Floor (1st)

The first floor mirrors the ground floor footprint while adding privacy and additional sleeping spaces—essential for family living.

Master Bedroom: 10×12 ft, southwest-facing (vastu-compliant placement for master bedroom). Large 4×5 ft window on the western elevation captures afternoon and evening light without morning glare. High ceiling (8.5 ft) for comfort.

Attached En-Suite Bathroom: 5×6 ft bathroom within the master bedroom suite, providing privacy and convenience for the primary occupants.

Secondary Bedroom/Study: 8×10 ft bedroom on the eastern half, interior-facing or with small eastern window. Versatile for guest room, second bedroom, or home office setup. Excellent for children's room or work-from-home space.

Common Toilet & Washbasin: 5×6 ft shared toilet for guests or secondary family use, strategically placed near secondary bedroom.

Corridor & Landing: Connecting staircase landing (3×4 ft) with landing window for natural light.

First Floor Total: ~350 sq ft built-up, ~280 sq ft carpet area

First floor plan: master bedroom (10x12 ft, SW), secondary bedroom (8x10 ft, E), with en-suite and common toilets. Design by Ongrid.

Second Floor (2nd)

The top floor creates an additional independent space—third bedroom, guest accommodation, or flexible multipurpose area.

Third Bedroom/Guest Room: 10×12 ft bedroom with access to west-facing small balcony (3×6 ft) for evening breeze and sunset views. Excellent for guest accommodation or rental income potential in investment scenarios.

Toilet & Washbasin: Compact 5×6 ft bathroom serving the second floor, can be upgraded to include a small bathtub if budget permits.

Open Terrace & Future Expansion Space: Remaining area (~120 sq ft) accessible via staircase for future expansion, drying clothes, roof gardening—common and essential in Indian households for outdoor space.

Second Floor Total: ~300 sq ft built-up, ~250 sq ft carpet area

Second floor plan: guest bedroom (10x12 ft, W), toilet, and open terrace (~120 sq ft) for expansion or roof garden. Design by Ongrid.

Total Home Summary:

• Plot Size: 20 ft × 40 ft (800 sq ft)
• Built-up Area: ~800 sq ft (3 floors × ~267 sq ft avg)
• Carpet Area: ~650–700 sq ft (85% utilization—excellent efficiency)
• Bedrooms: 3 (master + 2 secondary/guest rooms)
• Bathrooms: 2.5 (master en-suite + common + guest floor toilet)
• Parking: 1 car (compact space in front setback)

Design Highlights

This 20×40 west-facing plan incorporates smart design decisions that maximize comfort and functionality in constrained space.

Vertical Stacking for Compact Footprints: Three floors on a compact plot mean no wasted hallway space. Every square foot serves a purpose—bedrooms, bathrooms, living, and dining are all stacked efficiently. No large central lobby or unnecessary corridors reduce usable area below 70%.

Double-Height Living Room: The G-floor living area extends 9 ft in height (vs. standard 8.5 ft), preventing the compact footprint from feeling cramped or claustrophobic. This visual height makes 150 sq ft feel like 200 sq ft.

Jali Screens on West Side: Traditional wooden jali screens on the western elevation filter afternoon heat while maintaining aesthetic appeal and passive ventilation. More cost-effective than roller blinds or expensive automated shading systems. Adds cultural character to modern design.

Cross-Ventilation Strategy: Windows and openings placed on opposite walls (east and west) ensure natural airflow—critical for 800 sq ft homes that can feel stuffy without active ventilation. Reduces AC running hours and energy bills.

Modular Kitchen with Open Dining: Open-plan kitchen with dining counter facing the living room maximizes perceived space, enables supervision of children while cooking, and creates a social hub rather than isolated work zone.

Open Terrace on Top Floor: Valuable for future vertical expansion (illegal in some cities, but a revenue option in others), drying laundry, and growing kitchen herbs. In Indian context, this outdoor space is non-negotiable.

Living room with west-facing windows, 9-ft double-height ceiling, open kitchen, and POP false ceiling design details. Design by Ongrid.

Vastu Compliance for West-Facing Homes

West-facing homes have specific vastu recommendations, and this plan follows them—balancing traditional principles with modern compact living.

Main Entrance Direction: Positioned on the western side with a slight northern sub-direction (W or WNW). Vastu considers the main door as the "mouth" of the home where energy enters. West-facing entrance aligns with the direction of the plot.

Kitchen Placement: Southeastern corner (SE = Agni, fire element). This placement follows vastu's original logic—fire appliances (stove) belong in the SE direction. Kitchen is well-lit by afternoon light and isolated from sleeping areas, preventing cooking odors in bedrooms.

Master Bedroom Orientation: Southwestern (SW) placement aligns with vastu's principle that the heaviest/primary space should be in the southwest. The SW corner also ensures the master bedroom gets afternoon/evening light without early morning glare—practical for working professionals.

Pooja/Prayer Room: Small 3×4 ft dedicated space in the northeastern corner (NE = Ishanya, knowledge and spirituality). This is optional but highly valued by traditional Indian families. Can function as a meditation room or prayer closet.

Central Staircase: Positioned in the center-west area, avoiding the inauspicious southwest corner placement. Clockwise staircase orientation (when ascending) is preferred per vastu standards.

Open Space (Brahmasthana): The central courtyard area and open terrace maintain the "brahmasthana" (center) principle—keeping the heart of the home open, light-filled, and spiritually balanced. This prevents feeling "hemmed in" despite compact footprint.

Vastu directional grid for west-facing homes: NE pooja, SE kitchen, SW master bedroom, center open. Design by Ongrid.

For detailed information on designing homes across other directions, explore our 3-floor house plans collection.

Construction Cost Estimate

For a 20×40 west-facing 3-floor home (800 sq ft built-up area) in India (2025-26 rates):

Tier-2 Cities (Pune, Jaipur, Indore, Surat)

Rate: ₹1,500–₹2,200/sq ft

• Total estimated cost: ₹12–17.6 L
• Structure (foundation, columns, beams, masonry): ₹5.5–7.5 L (42–45%)
• Finishes (flooring, paint, doors, windows): ₹3.2–5 L (25–30%)
• Fittings (kitchen, bathrooms, hardware): ₹1.6–2.7 L (12–16%)
• MEP (electrical, plumbing, AC): ₹1–1.5 L (8–10%)
• Design & contingency: ₹0.7–1 L (5%)

Tier-1 Cities (Mumbai, Bangalore, Delhi)

Rate: ₹2,500–₹3,500/sq ft

• Total estimated cost: ₹20–28 L (Same percentage breakdowns apply; higher rates due to labor costs and material prices)

Cost Assumptions

• Basic structural design (no specialized engineers for seismic zones)
• Standard materials: cement block, vitrified tiles (600×600 mm), POP false ceiling, aluminum windows, wooden doors
• Local skilled labor rates (mason, carpenter, electrician, plumber)
• No premium finishes (no imported tiles, no smart home automation, no luxury fittings)
• Includes basic interior design (no high-end interior finishing)
• Contingency buffer for site-specific issues

Ongrid's Architecture Services

For this exact 20×40 west-facing plan:

• Basic Package: ₹22/sq ft = ₹17,600 total

  • Includes 2D floor plans, elevation drawings, 1 set of 3D visuals, basic structural outline
  • Turnaround: 5-7 business days

• Advanced Package: ₹25/sq ft = ₹20,000 total

  • Includes detailed specifications, material schedules, MEP coordination drawings, multiple 3D angles
  • Turnaround: 10-12 business days
  • Better for handing over to structural engineer

Timeline Expectations

• Foundation & Structure: 4–5 months
• Finishing & MEP Installation: 4–6 months
• Final Finishing & Handover: 2–4 months
• Total: 12–18 months with consistent labor and material supply

Hiring a good site engineer and securing municipal approvals upfront reduces delays significantly. Use our cost calculator to estimate your project-specific expenses.

Construction cost breakdown: Structure 42-45% (₹5.5-7.5L), Finishes 25-30% (₹3.2-5L), Fittings 12-16% (₹1.6-2.7L), MEP 8-10% (₹1-1.5L). Total: ₹12-17.6L. Design by Ongrid.

Frequently Asked Questions

What is the carpet area of a 20×40 house with 3 floors?

The plot area is 800 sq ft (20×40 ft). Built-up area across three floors is approximately 800 sq ft. Carpet area (usable space, excluding walls, staircases, and common areas) is approximately 650–700 sq ft. This means about 85% of built-up area is livable space—exceptionally efficient for compact homes. In contrast, many apartment buildings achieve only 70–75% carpet area due to shared lobbies and corridors.

Can a 20×40 plot accommodate 3 bedrooms and 2 bathrooms?

Yes, absolutely. This plan delivers exactly that: ground floor has living/kitchen zone; first floor houses the master bedroom with attached en-suite bathroom; second floor adds a guest bedroom with its own toilet. That's 3 independent bedrooms, 2.5 bathrooms (including ground floor visitor toilet), and complete functional zones. If you prefer only 2 bedrooms, the second floor can convert to a study, yoga studio, or home office—the 10×12 ft space is versatile. Browse our 2-floor house plans for duplex alternatives.

Is west-facing really better than east-facing for small 20×40 plots?

It's different, not inherently "better." Each direction has trade-offs:

• East-facing: Gets morning sun (cooling, energizing), but requires aggressive afternoon shading in summer; better for early risers
• West-facing: Gets afternoon/evening warmth (excellent for evenings), less AC dependency, better for working professionals home after 4 PM; requires summer shading
• North-facing: Soft diffused light all day, minimal shading needed, but can feel dark in winter; requires good artificial lighting
• South-facing: Bright overhead light (hot), deep shadows; often avoided in Indian homes

For a 20×40 plot in a Tier-2 city where working professionals are the primary buyers, west-facing is practical because afternoon light suits actual usage patterns.

How much should I realistically budget for a 20×40 house construction?

Construction cost: ₹12–17.6 L in Tier-2 cities (₹1,500–2,200/sq ft), or ₹20–28 L in Tier-1 cities (₹2,500–3,500/sq ft).

Land acquisition: Varies by city; a 20×40 plot in Tier-2 city might cost ₹8–15 L depending on location.

Design & approvals: ₹17,600–20,000 for Ongrid ready plan; ₹2–5 L if hiring local architect + municipal approvals.

Miscellaneous: ₹2–3 L for site facilities, labor welfare, contingency.

Total project cost: ₹23–36 L in Tier-2 cities. Ongrid's ready plans (₹4,999–9,999) eliminate design rework and accelerate construction timelines by 4–6 weeks.

Can I modify this plan for a south-facing or north-facing 20×40 plot?

Absolutely. The 20×40 footprint works for all directions; what changes are:

• Window and door placements optimized for that direction's sun path
• Room orientations to ensure bedrooms don't face harsh south light (if south-facing)
• Entrance location per that direction's vastu guidelines
• Shading requirements (north-facing needs less shading; south-facing needs aggressive shade structures)

Ongrid's custom architecture services (₹22–25/sq ft) adapts this plan for your specific plot direction, local building codes (FSI, setback rules), and municipal requirements. Turnaround: 10–12 business days.

How long does construction typically take for a 3-floor 20×40 house?

Typical timeline: 12–18 months with steady labor and material supply:

• Foundation & structure: 4–5 months (excavation, concrete, columns, beams, masonry)
• Finishing & MEP: 4–6 months (electrical wiring, plumbing, AC runs, flooring, painting)
• Detailed finishing & handover: 2–4 months (final carpentry, kitchen fittings, bathroom tiles, waterproofing)

Factors affecting timeline:

• Hiring a good site engineer (accelerates decision-making)
• Securing municipal approvals upfront (prevents mid-project stoppages)
• Regular material supply and skilled labor availability
• Weather (monsoon can delay concrete work)
• Budget availability (payment delays extend timeline)

Proper project management can compress 18 months to 12 months; poor management can stretch to 24 months.

Design Your Dream Home with Ongrid

A 20×40 west-facing 3-floor home delivers practical, efficient living without compromise. Whether you're a first-time homebuilder breaking ground on your first investment or a savvy investor planning a rental property, this design maximizes every square foot while respecting Indian vastu principles and modern comfort standards.

Ongrid is an online architecture firm by Utopian Fold, with 20+ years of experience designing homes for Indian plots of every size and orientation. Our COA-certified architects hold IGBC and IIID credentials—the same standards as top architecture firms, but delivered online at 10% of traditional costs.

Our Services:

• Ready-made plans: ₹4,999 (basic 20×40 plans), ₹9,999 (premium with 3D visuals)—instant PDFs, 2D drawings, and structural specifications to share with your contractor
• Custom architecture: ₹22/sq ft (basic) or ₹25/sq ft (advanced)—complete customization, local compliance adjustments, material specifications, MEP coordination

Ready to build? Browse our 20×40 house plans collection for this specific plot size across all directions and floor configurations. Or book a free 20-minute consultation to discuss your west-facing plot with our architects in detail—no sales pressure, just expert guidance.
