40x50 House Plan | 4 Floor West Facing Design

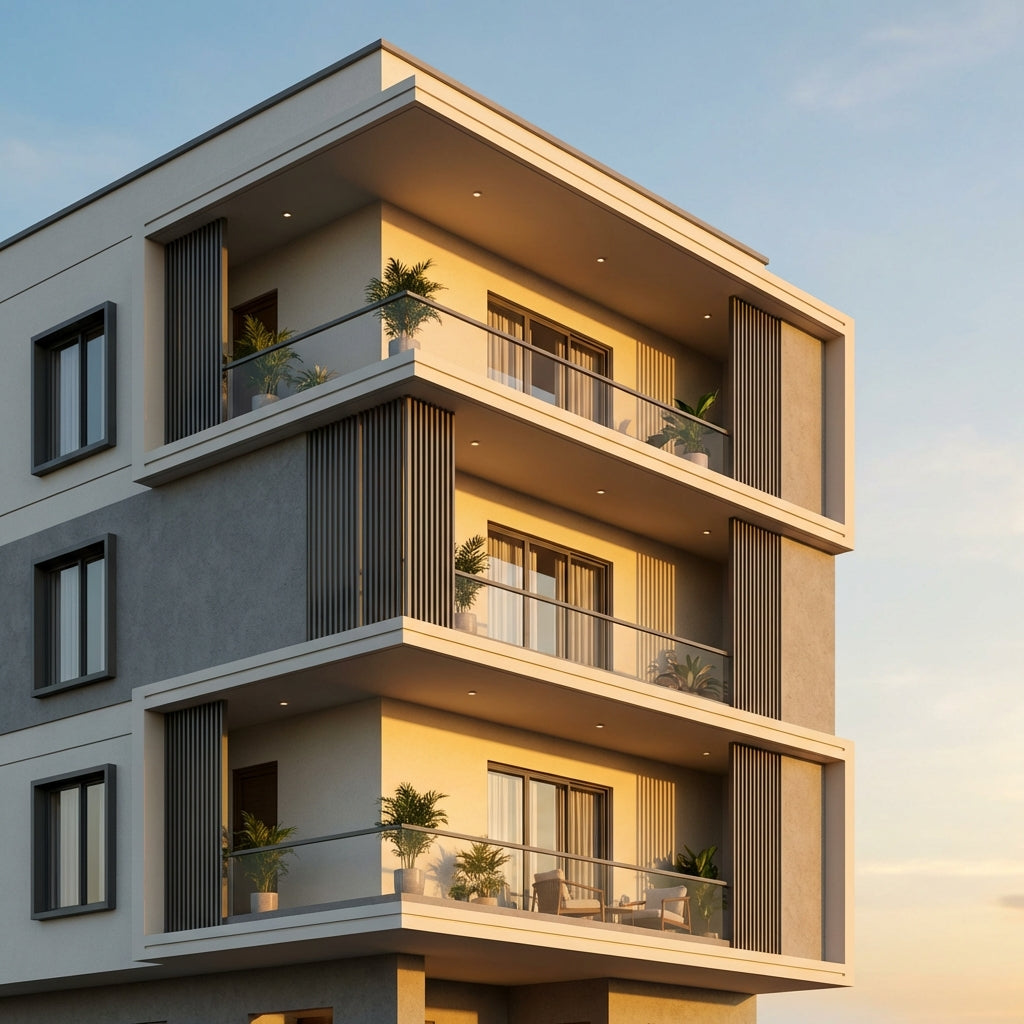

A four-floor west-facing home on a 40×50 plot — each floor commands better evening light and a higher rental premium than the one below it
If you are planning a 40x50 house plan 4 floor west facing and have been told that west orientation is a Vastu concern or a thermal liability, here is the number that reframes the conversation: in Bengaluru's and Hyderabad's rental markets, a well-designed third-floor west-facing unit consistently rents 35–50% above an equivalent ground-floor unit in the same building. Working professionals leave before sunrise and return after 6 PM. They are not home to enjoy east-facing morning light. They want a cool evening breeze, a golden-hour living room, and a covered west terrace where summer evenings are genuinely livable. A G+3 on a 40×50 west-facing plot creates precisely this gradient. The ground floor anchors the investment with parking and a rental unit. Each floor above collects progressively more rent — or progressively more lifestyle value — as height separates it from street heat and opens it to evening sky. Ongrid's COA-certified architecture team has designed this plan around that single, measurable insight.
Why a West-Facing 40×50 G+3 Is a Rental Income Machine
The conventional concern about west-facing plots is afternoon heat. On a G+3 building, that concern is both smaller than it sounds and offset by a structural advantage that east-facing buildings cannot replicate.
The land price head start. West-facing plots of equivalent size and layout trade at a 5–12% discount versus north or east-facing plots in most Indian cities — Bengaluru, Hyderabad, Pune, Nagpur, and Chennai included. On a ₹70–90 lakh plot, that is ₹3.5–10 lakh in savings before a single brick is laid. Against a G+3 construction budget of ₹1.0–1.8 crore, that cushion is meaningful — it funds better finishes, a deeper foundation, or a more confident landscaping budget.
The evening economy of urban India. India's urban workforce is evening-oriented. Offices close between 6 and 8 PM. Social life, meals, and family time happen in the late-afternoon and evening hours. West-facing living rooms and balconies receive exactly this quality of light — warm, directional, and beautiful between 4 and 7 PM. A ground-floor east-facing tenant watches morning light flood in before they leave for work. A third-floor west-facing tenant comes home to a sunlit room and a breeze-cooled balcony. Rental demand reflects this preference directly.
Sun path analysis for the 40×50 west-facing G+3 — 2-ft overhangs block the 1–4 PM heat angle; the 4–7 PM golden light window becomes the building's primary lifestyle and rental asset
The inverted rental gradient. This is the central insight of this design. East-facing buildings generate their highest rental at the ground floor — garden access, morning sit-out, easy parking. West-facing G+3 buildings invert this premium curve. The ground floor is the least desirable rental unit: it absorbs the most street heat, has no views, and sits below the elevation where the evening breeze is strongest. Each floor upward removes these constraints one by one. By the third floor, you have unobstructed sunset views, prevailing south-westerly breezes at 40 feet elevation, and no street noise. The building's highest value is at its top, not its base — which is exactly what the layout below exploits.
Thermal performance at G+3 scale. Radiant heat from roads and compound walls concentrates near ground level. At 30–40 feet elevation, upper floors of west-facing buildings are often cooler in absolute terms than equivalent east-facing upper floors during peak summer. Add 2-foot deep overhangs above each west-facing window and balcony, and the afternoon heat problem is architecturally solved. For more on passive cooling strategies in Indian homes, see Ongrid's sustainable design guides.
Your 40×50 4-Floor West Facing Floor Plans — Floor by Floor
These layouts use realistic post-setback dimensions. A 40×50 plot with standard urban setbacks — 8 ft front, 5 ft rear, 2.5 ft on each side — delivers a buildable footprint of approximately 35×37 ft per floor. After staircase and wall thickness, usable area per floor is around 1,150–1,250 sq ft. Total built-up area across four floors is approximately 5,000–5,200 sq ft, including the ground-floor car porch.
Ground Floor Plan
Ground floor layout — wide car porch along the west boundary, independent 1BHK rental unit accessible from the north side, utility core at the rear
The ground floor of this 40×50 west-facing G+3 is designed for utility and rental income, not primary family living. Keeping the family's living spaces elevated is a deliberate thermal and privacy decision on a west-facing plot.
| Space | Dimensions |
|---|---|
| Covered Car Porch (2 cars) | 20×10 ft |
| Entrance Lobby / Foyer | 8×7 ft |
| Rental 1BHK — Bedroom | 14×12 ft |
| Rental 1BHK — Living Area | 10×9 ft |
| Rental 1BHK — Attached Toilet | 7×5 ft |
| Utility / Service Room | 10×8 ft |
| Staircase + Passage | 10×4 ft |
The 1BHK rental unit has its own entrance from the north side of the plot, completely independent of the main staircase. This allows a separate tenant — or parents, domestic help, or a home office — to occupy the ground floor without compromising the privacy of the floors above. The 20×10 ft covered car porch fits two vehicles side by side. A louvre screen or pergola along the western boundary wall reduces afternoon glare at driveway level without limiting street visibility.
First Floor Plan
First floor layout — the primary family floor with Vastu-compliant room placements, a 16×14 ft combined living-dining, and a 12×5 ft west-facing evening balcony
The first floor is the primary family living floor. It sits high enough above the ground to avoid peak street heat and noise, while remaining close enough for everyday convenience. All Vastu-critical placements are anchored here.
| Space | Dimensions |
|---|---|
| Living Room + Dining | 16×14 ft |
| Modular Kitchen (SE) | 10×11 ft |
| Pooja Room (NE) | 6×5 ft |
| Master Bedroom (SW) | 13×12 ft |
| Master Attached Toilet | 8×5 ft |
| Bedroom 2 | 11×11 ft |
| Common Toilet | 7×4 ft |
| West-Facing Balcony | 12×5 ft |
The 16×14 ft combined living and dining is the home's social core. Its west-facing balcony — 12×5 ft, deep enough for a 4-seater outdoor arrangement — is shaded by a fixed overhead overhang that blocks the 1–4 PM sun angle while allowing golden light in after 4 PM. The kitchen anchors the southeast corner per Vastu, and the 6×5 ft pooja room occupies the northeast. The 13×12 ft master bedroom sits in the southwest corner — the Vastu-prescribed position for the head of household — with a dedicated 8×5 ft attached toilet.
Second Floor Plan
Second floor layout — three complete bedrooms, a family lounge, and an elevated west balcony where the rental gradient begins to be clearly measurable
The second floor is designed to function as a complete, independent family unit. It mirrors the structural grid of the first floor, keeping construction costs predictable. At approximately 25–28 feet above ground, the west balcony here captures a noticeably different quality of evening light and breeze than the floor below.
| Space | Dimensions |
|---|---|
| Family Sitting / Lounge | 14×12 ft |
| Master Bedroom (SW) | 13×12 ft |
| Master Attached Toilet | 8×5 ft |
| Bedroom 2 | 11×11 ft |
| Bedroom 3 | 10×10 ft |
| Common Toilet | 7×4 ft |
| West-Facing Balcony | 12×5 ft |
Three bedrooms on one floor make this the most family-capable level of the building. The 14×12 ft family lounge replaces the formal living-dining of the first floor — it is an informal evening space for television, conversation, and balcony overflow. This is the floor most sought by young families in the rental market: enough bedrooms for parents and two children, with a balcony that works in the evenings.
Third Floor Plan (G+3 Top Level)
Third floor (G+3) layout — the building's premium floor, anchored by a 16×10 ft covered sunset terrace that becomes the home's defining lifestyle space
The third floor is this building's single most valuable asset. At approximately 38–42 feet above ground, the west-facing terrace and balconies are above street heat, above the canopy of most urban street trees, and directly in the path of the prevailing south-westerly evening breeze. If you rent any floor in this building, this is the floor that commands the highest price.
| Space | Dimensions |
|---|---|
| Studio Suite / Bedroom 1 | 14×13 ft |
| Studio Attached Toilet | 8×5 ft |
| Bedroom 2 | 11×11 ft |
| Family Lounge / Sitting | 14×12 ft |
| Dry Kitchen / Kitchenette | 10×8 ft |
| Covered Sunset Terrace (W) | 16×10 ft |
| Staircase + Passage | 10×4 ft |
The 16×10 ft covered sunset terrace is the floor's centrepiece. Oriented due west, covered by a flat RCC or metal-and-polycarbonate pergola, it opens directly from the family lounge. Deep enough for a full outdoor living arrangement — dining table, lounger chairs, planter walls — it converts every evening into a usable outdoor experience. The dry kitchen means the third floor functions as a fully self-contained 2BHK rental unit, or as the family's weekend entertaining floor depending on how you occupy the building.
Vastu for Your West-Facing 40×50 4-Floor Home
West-facing homes have a specific Vastu reputation. Some consultants flag them as inauspicious; most experienced Vastu practitioners take a more measured position. On a G+3, the entrance direction is only one element of the overall Vastu calculation. When the interior placements are correct, a west-facing home is fully compliant.
Vastu grid for the 40×50 west-facing G+3 — entrance in the Sugriva pada north of centre, kitchen and fire zone in the SE, master bedroom in the SW Nairutya zone, pooja in the NE Ishanya
Main entrance. For a west-facing home, the entrance door must not be placed at the exact centre of the west wall — the Shula position in the Vastu Purush Mandala, which is considered inauspicious regardless of plot direction. Shift the door slightly north of centre, toward the Sugriva or Pushpadanta pada, and the placement is auspicious. This is the rule that makes west-entry homes acceptable in Vastu — and it is precisely what this plan follows on both the ground floor foyer and the first-floor main entry.
Kitchen. Southeast corner on every floor — the Agni (fire) direction — regardless of the plot's street-facing orientation. The modular kitchens and dry kitchens in this plan all sit in the southeast portion of their respective floors.
Master bedroom. Southwest corner on every floor — the Nairutya direction. This is the Vastu-prescribed zone for the senior occupant or couple on that level. All master bedrooms in this plan occupy the southwest corner.
Pooja room. Northeast corner, first floor only. The northeast is the Ishanya zone — the most spiritually receptive direction in Vastu. A dedicated 6×5 ft pooja room anchors the northeast of the first floor.
Staircase. Positioned on the south side of the building, climbing upward from south to north. This places the heavy structural load of the stair in the south portion of the plot, consistent with Vastu's preference for heavier elements in the south and southwest.
Toilets. Northwest or south side of each floor — never northeast (which would corrupt the Ishanya zone) and never in the southwest Nairutya zone reserved for the master bedroom. All toilet blocks in this plan are in the northwest or north portion of their floors.
Before construction begins, review Ongrid's complete homeowner's planning checklist for a full list of approvals, documentation, and pre-construction tasks.
40×50 House Plan 4 Floor West Facing — Construction Cost Breakdown
A G+3 on a 40×50 plot delivers approximately 5,000–5,400 sq ft of total built-up area, depending on setback bye-laws in your city. Use 5,200 sq ft as a realistic planning estimate. Construction costs vary by city, contractor quality, and finish specification. Ongrid uses three standard tiers.
Tier-wise cost breakdown for a 40×50 G+3 on approximately 5,200 sq ft built-up area — from Tier-1 metro specifications down to Tier-3 self-managed builds
| Tier | Reference Cities | Rate per Sq Ft | Total Estimate (5,200 sq ft) |
|---|---|---|---|
| Tier 1 | Bengaluru, Mumbai, Pune, NCR | ₹2,000–3,500 | ₹1.04 Cr – ₹1.82 Cr |
| Tier 2 | Mysore, Coimbatore, Nagpur, Indore | ₹1,500–2,500 | ₹78 L – ₹1.30 Cr |
| Tier 3 | Smaller towns, owner-managed builds | ₹1,200–2,000 | ₹62 L – ₹1.04 Cr |
What these rates include. RCC frame structure, brick walls, roof slabs, basic internal plastering, standard floor tiles, electrical wiring, plumbing, standard doors and windows. They exclude architect and structural engineer fees, approval costs, compound wall, landscaping, modular kitchen, false ceilings, and premium finishes. Add 15–20% for these.
What drives cost on a G+3 specifically. Four floors require a deeper column foundation and higher-grade structural steel than a G+1 or G+2. In Bengaluru's BBMP jurisdiction, a G+3 also requires a structural stability certificate, enhanced staircase width, and fire safety provisions. Factor an extra 4–6 weeks into your approval timeline. Use Ongrid's home construction cost calculator for a site-specific estimate. For architect fees and service packages, visit Ongrid's pricing page.
3D Elevation Design for a West-Facing G+3
The west-facing facade is your building's primary street face — it must block afternoon heat without compromising curb appeal. Ongrid's design team resolves this through four architectural moves applied consistently across the four-floor west elevation.
West facade elevation detail — stacked balconies with deep overhangs that block 1–4 PM sun, vertical louvre fins for ventilation and visual rhythm, and a textured feature wall that reads well under evening light
Deep overhangs. Every west-facing balcony has a 2-foot projected RCC slab or aluminium pergola above it. This removes direct sun exposure between 1 and 4 PM while leaving the balcony fully usable from 4 PM onward.
Vertical louvre fins. Lightweight aluminium louvre fins on the western facade break horizontal glare, improve cross-ventilation, and give the building a contemporary visual rhythm from the street. They are low-maintenance and cost-efficient compared to double-glazed curtain walls.
Textured feature wall panel. The third-floor terrace parapet and first-floor facade band use a textured finish — exposed aggregate, fluted concrete cladding, or high-durability textured paint — to give the building layered visual character that reads especially well under the changing quality of evening light.
Street-level screening. A low boundary hedge or louvre panel along the western plot boundary breaks afternoon glare at car porch level without blocking the building's street presence.
Browse Ongrid's three-storey home designs or the 200 modern house elevation design collection for elevation references before your first architect discussion.
The Rental Income Model — What Each Floor Can Earn
This is the financial case for a 40x50 west facing G+3. The figures below are Bengaluru and Hyderabad reference ranges for 2025–2026. Actual rents will vary by micromarket, building quality, and interior fit-out level.
The third-floor covered sunset terrace in use — the premium space in the building and the primary driver of the top-floor rental advantage
| Floor | Unit Type | Monthly Rent Range | Key Driver |
|---|---|---|---|
| Ground | 1BHK rental unit | ₹10,000–18,000 | Street-level convenience; good for parking users |
| First | 3BHK (if rented) | ₹18,000–28,000 | Primary family floor; usually owner-occupied |
| Second | 3BHK | ₹20,000–32,000 | Elevated light and ventilation; strong family demand |
| Third | 2BHK + terrace | ₹22,000–38,000 | Sunset terrace premium; top rental value in the building |
Scenario A — Owner on first floor, three floors rented. Ground (₹14,000) + Second (₹26,000) + Third (₹30,000) = ₹70,000 per month. Against a construction loan EMI of ₹65,000–85,000 per month (for ₹1.2–1.5 crore at 9% over 20 years), this configuration makes the building close to EMI-neutral from the day tenants move in.
Scenario B — Joint family across three floors. Parents on the first floor. Elder child's family on the second floor. Younger child's family on the third floor. The ground floor rental unit generates ₹12,000–18,000 per month as supplementary income — or converts to a home office, study, or domestic help quarters as the family's needs evolve.
Scenario C — Full investment build. All four floors rented. Ground (₹14,000) + First (₹24,000) + Second (₹26,000) + Third (₹30,000) = ₹94,000 per month. At a Tier-1 all-in project cost of ₹1.5 crore, this delivers a gross rental yield of approximately 7.5% — above the residential property average in most Indian cities. For help modelling your specific scenario, book a consultation with an Ongrid architect.
Frequently Asked Questions
Is a west-facing G+3 home Vastu-compliant?
Yes, when the interior placements are correct. The main rule for west-facing homes in Vastu is avoiding the Shula position — the exact centre of the west wall — for the main entrance. Place the door slightly north of centre, toward the Sugriva or Pushpadanta pada. With the kitchen in the southeast, master bedroom in the southwest, pooja room in the northeast, and staircase on the south side, a west-facing G+3 is fully Vastu-compliant. Plot direction is one input in Vastu, not the only one.
What is the total built-up area in a 40×50 4-floor house?
On a 40×50 plot with standard urban setbacks — 8 ft front, 5 ft rear, 2.5 ft on each side — the buildable footprint per floor is approximately 35×37 ft (1,295 sq ft). Across four floors with stairwells and wall thickness, total built-up area is typically 5,000–5,400 sq ft. Confirm exact setbacks with your local municipality or planning authority before finalising the design, as BBMP, GHMC, PMC, and other jurisdictions have different rules.
How much does it cost to build a G+3 on a 40×50 plot?
In Tier-1 cities like Bengaluru, total construction cost for a G+3 on a 40×50 plot (approximately 5,200 sq ft built-up) ranges from ₹1.04 crore to ₹1.82 crore at ₹2,000–3,500 per sq ft. In Tier-2 cities, the range is ₹78 lakh to ₹1.30 crore. These figures cover structure and basic finishes. Add 15–20% for architect fees, municipal approvals, and premium specifications. Use Ongrid's home construction cost calculator for a project-specific estimate.
Can each floor of a 40×50 G+3 function as an independent apartment?
Yes, and this plan is specifically designed to support it. Each floor above the ground has a complete bedroom-toilet-kitchen or kitchenette layout. To make them legally and practically independent, plan separate electrical meter boards and water connections for each floor during the structural stage — this is far easier and less costly to do during construction than to retrofit later. The ground floor already has a separate entrance. A structural engineer can advise on the additional provisions needed for individual unit certification in your city.
Why do upper floors of west-facing buildings command higher rent than lower floors?
West-facing buildings invert the rental premium curve compared to east-facing buildings. On an east-facing building, the ground floor (garden, morning light, parking) is most desirable. On a west-facing G+3, the primary lifestyle asset — evening light, elevated ventilation, unobstructed sunset views — improves with height. Working professionals who return home after 6 PM consistently prefer upper-floor west-facing units in cities like Bengaluru and Hyderabad. Rental listing data from these markets shows third-floor west-facing units renting 35–50% above ground-floor equivalents in the same building.
How do I protect a G+3 from west afternoon sun?
The most effective solution is permanent architecture. Use 2-foot deep RCC or aluminium overhangs above every west-facing window and balcony — these block the 1–4 PM sun angle (below 60°) while allowing diffuse morning light and the evening golden light after 4 PM. Supplement with vertical louvre fins on the west facade for ventilation and glare control, heat-reflective exterior paint (Solar Reflectance Index above 40), double-glazed windows on west-facing openings, and a boundary hedge or screen wall along the western plot edge. With all four measures, upper floors of west-facing G+3 homes can be cooler than equivalent east-facing floors during peak summer.
Start Your 40×50 West Facing G+3 Project
The 40x50 house plan 4 floor west facing is one of the most capable residential configurations available in urban India — a 2,000 sq ft plot that, built to four floors, delivers more than 5,000 sq ft of living space, a measurable rental income gradient, and a building that improves in value and liveability the higher you go. Whether you are building for a joint family, targeting rental yield, or want the flexibility to do both over time, this plan gives you a sound framework to start with confidence.
Ongrid's team of COA-certified architects has designed hundreds of G+3 homes across India's major cities and layout housing markets. We offer complete design packages — architectural drawings, structural drawings, electrical and plumbing plans, 3D renders, and approval documentation — at a single transparent fee. Here is where to begin:
