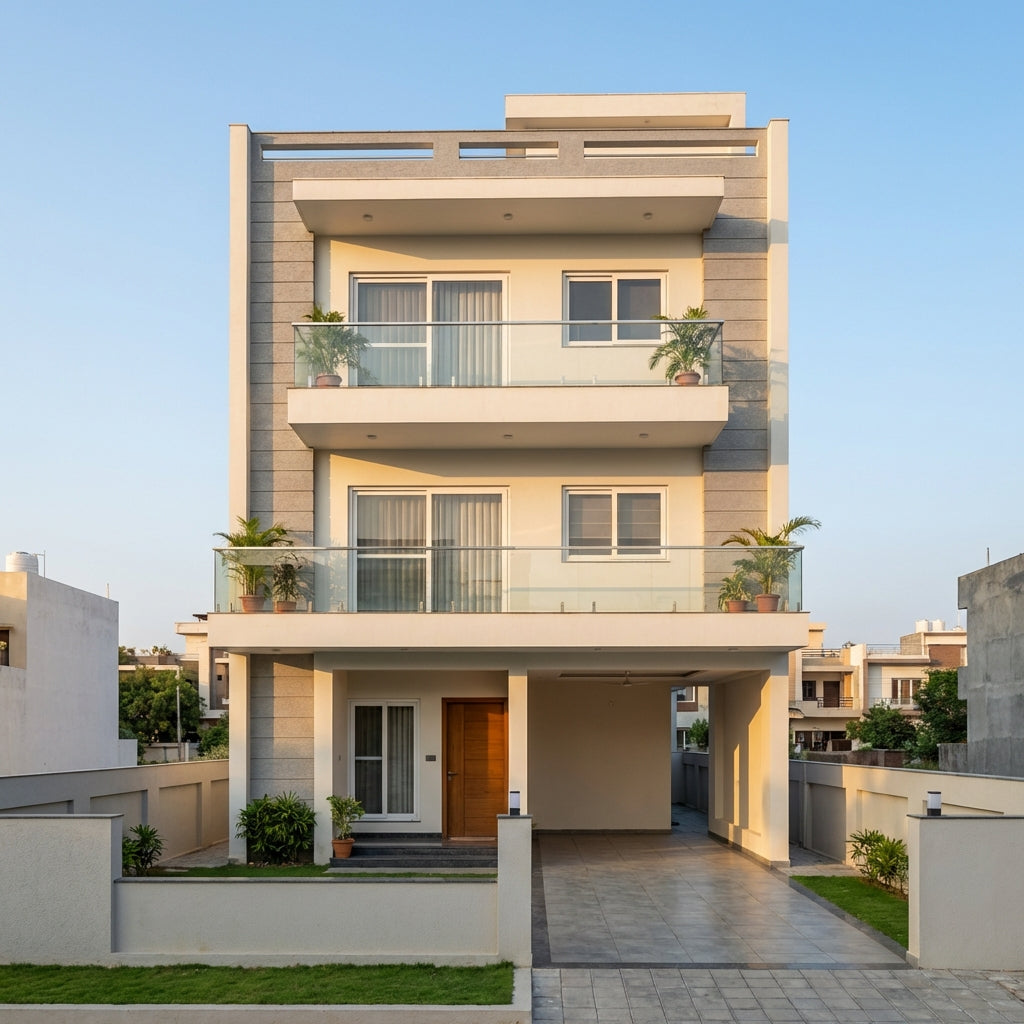

40x50 House Plan | 4 Floor South Facing Design
A south-facing G+3 elevation that turns every floor into a working asset — from street-level presence to rooftop terrace suite.
A 40x50 house plan 4 floor south facing is one of the most versatile residential investments possible on an urban plot today. With a 2,000 sq ft footprint and four floors, you are not just building a home — you are building a compound. Each floor has a distinct role, and the south orientation works in your favour from the street to the summit.
South-facing homes carry an undeserved vastu reputation. When designed correctly, they deliver maximum street visibility and a wide, photogenic facade. On a 40×50 footprint rising to G+3, you get approximately 5,800–6,000 sq ft of built-up space. That is enough to house a joint family, designate a rental floor, and crown the structure with a sun-drenched rooftop terrace.
This guide covers everything: floor-by-floor room layouts, vastu placements, construction costs, and the South Summit Compound strategy — building upward with intention, floor by floor.
Why the 40x50 South Facing 4-Floor Design Works
The 40-foot frontage on the south side is a genuine advantage. Wide frontages allow larger windows, a grander entrance, and better street presence. A 50-foot depth going northward means light can travel deep into each floor plate.
A G+3 structure on this plot delivers structural and lifestyle advantages that a 2- or 3-floor build simply cannot match:
- Total built-up area: ~5,800–6,000 sq ft across four floors (accounting for standard setbacks)
- Floor footprint per level: approximately 1,450–1,500 sq ft usable
- Parking + ground level: covered parking for 1–2 vehicles with a full residential unit
- Vertical zoning: ground floor for elders, upper floors for the nuclear family, third floor as an independent income or lifestyle suite
This four-layer approach — giving every floor a purpose — is what separates strategic G+3 homes from houses that simply go tall.
For elevation ideas suited to this scale, browse Ongrid's three-storey home designs and duplex elevation collection for facade inspiration.
Floor-by-Floor Layout: Room Dimensions and Zoning
Ground Floor — The Anchor Level
Ground floor plan: covered parking, generous living-dining zone, vastu-correct SE kitchen, and an elder-suite bedroom.
The ground floor handles arrivals, daily movement, and elder comfort. It sits at street level and must be both practical and welcoming.
- Covered parking: 10×20 ft (fits 1–2 compact cars)
- Entrance porch/lobby: 8×6 ft with a south-facing main door (3rd pada from east — see vastu section)
- Living/Drawing Room: 14×16 ft opening onto a south-facing sit-out
- Dining: 12×12 ft connected directly to the kitchen
- Kitchen: 11×12 ft placed in the southeast corner
- Utility/Wash area: 8×6 ft on the north side
- Elder/Guest Bedroom: 12×12 ft with attached bath in the southwest corner
Usable area: approximately 1,470 sq ft.
First Floor — The Family Core
First floor plan: a complete 3BHK family core with a large master suite, family lounge, and double-aspect balconies.
This is the primary residential floor — designed for a family of four to five with generous bedroom sizes.
- Master Bedroom: 14×16 ft with attached bath (8×8 ft) and walk-in wardrobe (6×5 ft) in the southwest corner
- Bedroom 2: 13×12 ft with attached bath in the southeast corner
- Bedroom 3: 12×12 ft with common bath access in the northeast zone
- Family Lounge / Study Alcove: 12×10 ft — flexible for TV, homework, or a reading corner
- South balcony: 10×5 ft with morning light and street views
- North balcony: 8×4 ft for cross-ventilation
Usable area: approximately 1,490 sq ft.
Second Floor — The Flexible Unit
Second floor plan: semi-independent 2BHK with its own hall-kitchen — ideal for extended family or a rental income stream.
The second floor is designed with semi-independence in mind. It functions as an extension of the family home or as a standalone rental unit.
- Hall/Living: 14×14 ft
- Kitchenette: 10×10 ft in the southeast zone
- Bedroom 1: 13×14 ft with attached bath
- Bedroom 2: 12×12 ft with attached bath
- Work-from-home nook: 10×8 ft with a north-light window
- Balcony: 10×5 ft on the south side
A separate staircase access at ground level converts this floor into a 2BHK rental unit. In most Tier-1 cities, that yields ₹18,000–₹28,000/month — actively reducing your construction loan burden.
Third Floor — The Summit Suite
Third floor (summit) plan: studio suite, 700+ sq ft south terrace with dedicated solar zone, outdoor kitchen corner, and utility room.
This is the design idea at the heart of the South Summit Compound approach. On a south-facing G+3, the third floor gets maximum unobstructed sky exposure — usable as a lifestyle amenity or an active energy asset.
- Studio Suite: 14×18 ft (open-plan bedroom and sitting area) with attached bath
- Attached Bath: 8×8 ft
- Open Terrace: ~700–800 sq ft with south and east exposure
- Solar Panel Zone: 200 sq ft dedicated to a 3 kW rooftop array
- Utility Room: 8×8 ft (water tank access, inverter bank, storage)
- Outdoor Kitchen / BBQ Corner: 10×8 ft at the terrace edge
The summit studio earns ₹12,000–₹20,000/month as a furnished rental — or becomes your personal sky retreat.
South Facing Design: Light, Ventilation, and Sun Path
Sun path analysis: south-facing homes benefit from warm winter light penetration and natural chajja shading in summer — a passive thermal advantage.
South-facing plots in India receive direct sun on the front facade during winter months, when the sun sits lower in the sky. In summer, the sun rises higher and reduces heat gain on the south wall naturally.
This creates a thermal rhythm that works in your favour:
- Winter (Nov–Feb): Low-angle sun streams into south-facing living rooms and balconies. Morning and afternoon light enter with warmth.
- Summer (Apr–Jun): High-angle sun means south windows are partially shaded by their own lintels and chajjas. Heat gain on the primary facade drops.
- Monsoon (Jul–Sep): Prevailing south-to-southwest winds in most Indian cities enter easily through south-facing openings. Cross-ventilation improves with north-side windows open simultaneously.
Design moves to maximise this advantage:
- Deep chajjas (1.5–2 ft projections) on all south windows shade summer sun while letting winter light in
- Full-height south glazing in the living room — a double-height window at ground and first floor levels brings dramatic light into the social core
- North-facing utility and bath zones — low natural-light demand there, so that placement reduces heat gain in the interior core
- Rooftop solar on south and west exposure — third-floor arrays at this orientation achieve 15–20% higher generation than east-facing arrays in most cities
Vastu Shastra for a South Facing 40×50 Home
Vastu zone map: key placements for a south-facing G+3, with the correct pada for the main entrance marked on the south wall.
South-facing homes have specific vastu rules — and when followed, they are entirely auspicious. The pada system for the south wall is the critical starting point.
Main Entrance Door: The south wall is divided into nine padas running from east to west. The centre pada (5th) is governed by Yama and is inauspicious for the entrance. The 3rd pada from the east (Grihakshat) is the preferred placement. On a 40-ft frontage, this falls roughly 12–16 ft from the eastern edge of the plot — well towards the east half of the facade.
Zone-by-zone vastu placements:
| Room | Placement | Reason |
|---|---|---|
| Main door | 3rd pada from east (south wall) | Grihakshat — welcoming energy |
| Kitchen | Southeast corner | Agni kona — fire element |
| Master Bedroom | Southwest corner | Stability and grounding |
| Pooja Room | Northeast corner | Ishan kona — highest spiritual zone |
| Living Room | North or east zone | Active, social energy |
| Staircase | South or southwest | Minimises disruption to energy zones |
| Overhead Tank | Southwest or west | Weight in SW is acceptable |
| Toilets | Northwest or southeast | Keeps sacred corners clear |
Practical vastu remedies for south-facing homes:
- Keep the north and east setbacks slightly more open than south and west — even 1 ft extra helps balance the energy flow
- Use a copper threshold strip or a small Vastu yantra at the main entrance
- Never place a pump room or toilet in the northeast corner
- Keep northeast corners of every floor open, uncluttered, and well-lit
For a deeper dive into vastu integration with modern plans, the Ongrid beginner's guide covers this across plot types.
Construction Cost Estimate for a 40×50 Four-Floor Home
Cost breakdown: civil structure dominates at 65–70% of total project cost. MEP, finishes, and design fees make up the rest.
A 40x50 house plan 4 floor south facing is a significant investment. Here is a realistic estimate based on 2025–26 construction rates across tiers.
Assumed built-up area: ~5,800–6,000 sq ft (G+3, post-setback)
| Construction Tier | Rate per Sq Ft | Total Civil Cost |
|---|---|---|
| Tier-3 (economy finish) | ₹1,200–₹2,000 | ₹70L–₹1.20Cr |
| Tier-2 (standard mid-range) | ₹1,500–₹2,500 | ₹87L–₹1.50Cr |
| Tier-1 (premium high-end) | ₹2,000–₹3,500 | ₹1.16Cr–₹2.10Cr |
Additional cost heads:
- Architect design fees (COA-certified): ₹2–5 lakh (full drawing set + structural)
- Electrical and plumbing (MEP): ₹6–12 lakh
- Interior — basic to mid-range: ₹10–20 lakh
- Compound wall, gate, landscaping: ₹2–4 lakh
- 3 kW rooftop solar system: ₹1.5–2.2 lakh (eligible for 30% central subsidy)
- Approval and permit fees: ₹50,000–₹1.5 lakh (varies by corporation)
Total project budget (Tier-2 mid-range): ₹1.05–₹1.80 Cr inclusive of design, MEP, basic interior, and approvals.
Income offset to factor in: Second floor rented at ₹22,000/month returns ₹26.4 lakh over 10 years. Third-floor studio at ₹15,000/month adds another ₹18 lakh. Together, these two floors offset 25–35% of a typical construction loan at current rates.
Estimate your city-specific cost using the Ongrid home construction cost calculator.
3D Elevation and Exterior Design: The South Facade Advantage
South facade elevation: double-height glazing at ground-plus-one, staggered balconies on upper floors, and a clean rooftop parapet with green trellis accent.
A 40-foot south-facing frontage is a wide canvas. It is one of the best plot widths for modern residential elevation design in Indian cities — and a G+3 height gives you the vertical scale to make it memorable.
What makes the south facade work visually:
- Staggered balconies: Offset balconies on floors 1, 2, and 3 slightly left-to-right — this creates depth and a visual rhythm that reads well from the street
- Double-height feature window: A continuous glazed panel running across the living room at ground and first floor levels adds drama and draws winter light deep into both floors
- Mixed texture cladding: Combine exposed brick at lower levels, textured plaster at mid-levels, and light-coloured paint at the top — this grounds the elevation and prevents it from looking top-heavy
- Planted trellis panel: A vertical green element on one side of the south facade softens the elevation and provides partial afternoon shade in summer
- Rooftop parapet detail: A slightly taller south parapet at the summit level creates privacy on the terrace without blocking the sky view from inside the studio suite
For more facade ideas, see 200+ modern house elevation designs and Ongrid's external home design service.
The South Summit Compound: A Strategic Build Philosophy
The summit terrace: a south-facing rooftop with solar canopy, outdoor dining, and the kind of unobstructed sky views that urban plots rarely offer.
Most families approach a G+3 build as one large home spread across four floors. The South Summit Compound model reframes the entire exercise: each floor is a distinct asset with its own value proposition.
The four-layer compound:
Layer 1 — Ground Floor (The Welcome Layer): Street-level presence, elder-friendly bedroom, covered parking. This floor absorbs daily arrivals, provides accessible living for ageing parents, and anchors the structure's security and curb appeal.
Layer 2 — First Floor (The Family Core): Your nuclear family's primary residence. Full 3BHK with a family lounge and double-aspect balconies. Designed for daily living — not for renting.
Layer 3 — Second Floor (The Yield Floor): Semi-independent 2BHK. Rented out, it generates ₹18,000–₹28,000/month in most Tier-1 cities. Occupied by extended family, it provides genuine privacy for both generations under the same roof.
Layer 4 — Third Floor (The Summit): Your highest-value asset. A furnished studio for guests or premium rental. A solar-ready roof. A private terrace garden. This floor pays dividends in lifestyle and, with a tenant, in income.
This approach turns your construction investment into a compounding asset. By year 5, rental income from floors 2 and 3 will have offset 20–35% of your construction loan principal — depending on your city's rental market.
The south-facing orientation makes the summit floor especially powerful. South and west exposure on the rooftop terrace delivers 250+ days of peak solar panel production annually. The terrace stays warm and usable through North Indian winters when north-facing rooftops remain cold and damp. In South Indian cities, the elevation catches sea or inland breezes that move from the south-southwest during summer months.
This is the core insight behind the South Summit Compound: the direction most people worry about becomes the direction that works hardest for you when you build to four floors and design each level with intention.
Who Is This 40×50 South Facing 4-Floor Plan For?
This 40x50 house plan 4 floor south facing suits a specific kind of owner-builder:
- Growing joint families who want independent units within one compound — each generation with its own floor, privacy, and kitchen
- Urban investors who want rental income from one or two floors while occupying the rest — effectively building a self-funding home
- Professionals with work-from-home requirements who need a dedicated study floor separate from daily family activity
- Sustainability-first homeowners who want to maximise solar generation, reduce electricity bills, and future-proof against grid costs
- Plot owners in dense localities where vertical construction is the only path to adequate space — and where G+3 is the maximum permissible height
If you are deciding between floor configurations or want to customise room sizes for your family's needs, Ongrid's architect consultation service can tailor this layout before you begin construction.
You can also explore the complete home plans collection, the custom home plans service, or the HomeBlueprints Advance Plus service for permit-ready drawing sets.
Frequently Asked Questions
Is a south facing house good according to vastu?
Yes — a south-facing house is fully vastu-compatible when designed correctly. The main entrance must be placed in the 3rd pada (Grihakshat) from the east on the south wall — not in the centre 5th pada, which is inauspicious. With the kitchen in the southeast, master bedroom in the southwest, and pooja room in the northeast, a south-facing G+3 meets all major vastu requirements. The direction itself is not the problem — incorrect room placement is.
How many rooms can fit in a 40x50 4-floor house?
A 40×50 G+3 typically accommodates 7–9 bedrooms across four floors. A standard configuration: 1 bedroom on the ground floor, 3 bedrooms on the first floor, 2 bedrooms on the second, and 1 studio suite on the third. That is 7 bedrooms, plus multiple living rooms, dining areas, kitchens, and a rooftop terrace — sufficient for a large joint family or a mixed owner-rental arrangement.
What is the construction cost of a 40x50 4-floor house in India?
Total built-up area for a G+3 on a 40×50 plot is approximately 5,800–6,000 sq ft after setbacks. At Tier-2 mid-range rates of ₹1,500–₹2,500/sqft, civil construction costs ₹87 lakh to ₹1.50 crore. Add ₹15–25 lakh for MEP, basic interior, approvals, and design fees. A complete project budget for a quality mid-range build in a Tier-1 city typically falls between ₹1.05–₹1.80 crore.
Can I create an independent rental unit in a 40x50 4-floor house?
Absolutely. The second floor in this plan is configured as a semi-independent 2BHK with its own hall-kitchen layout. A separate entrance at ground level converts it into a standalone rental unit yielding ₹18,000–₹28,000/month in most Indian Tier-1 cities. The third-floor studio suite adds another ₹12,000–₹20,000/month rental potential. Together, these two units can meaningfully offset your monthly home loan EMI.
What are the setback requirements for a G+3 on a 40x50 plot?
Requirements vary by city and local planning authority. Most Tier-1 cities require a front setback of 3 ft, rear setback of 3 ft, and side setbacks of 2–3 ft each side for a G+3 residential structure on a 2,000 sq ft plot. Some municipal bodies require larger setbacks for buildings above G+2. Always verify with your local authority (BBMP, GHMC, BDA, CMDA, etc.) before finalising the floor plan. Ongrid's legal paperwork guide explains permit requirements by city.
How do I maximise natural light in a south facing 4-floor home?
Use large south-facing windows in living rooms on each floor — these capture warm winter light from morning to afternoon. Install deep chajjas (1.5–2 ft projections) to shade the high summer sun while letting lower winter sun in. Include north-facing windows in bedrooms for cool, indirect light throughout the day. A double-height glazed panel at ground and first floor levels maximises light penetration deep into the social core of the home.
How long does it take to build a G+3 on a 40x50 plot?
A G+3 on a 40×50 plot typically takes 18–30 months from foundation to finishing. RCC framed construction progresses at roughly one floor every 3–4 months. Finishing work — tiling, painting, woodwork, MEP, and fixtures — adds another 4–6 months. Building in phases, completing and making lower floors liveable before starting upper floors, is a practical option when budget constraints exist and is very common in urban India.
