40x60 House Plan | 1 Floor West Facing Design

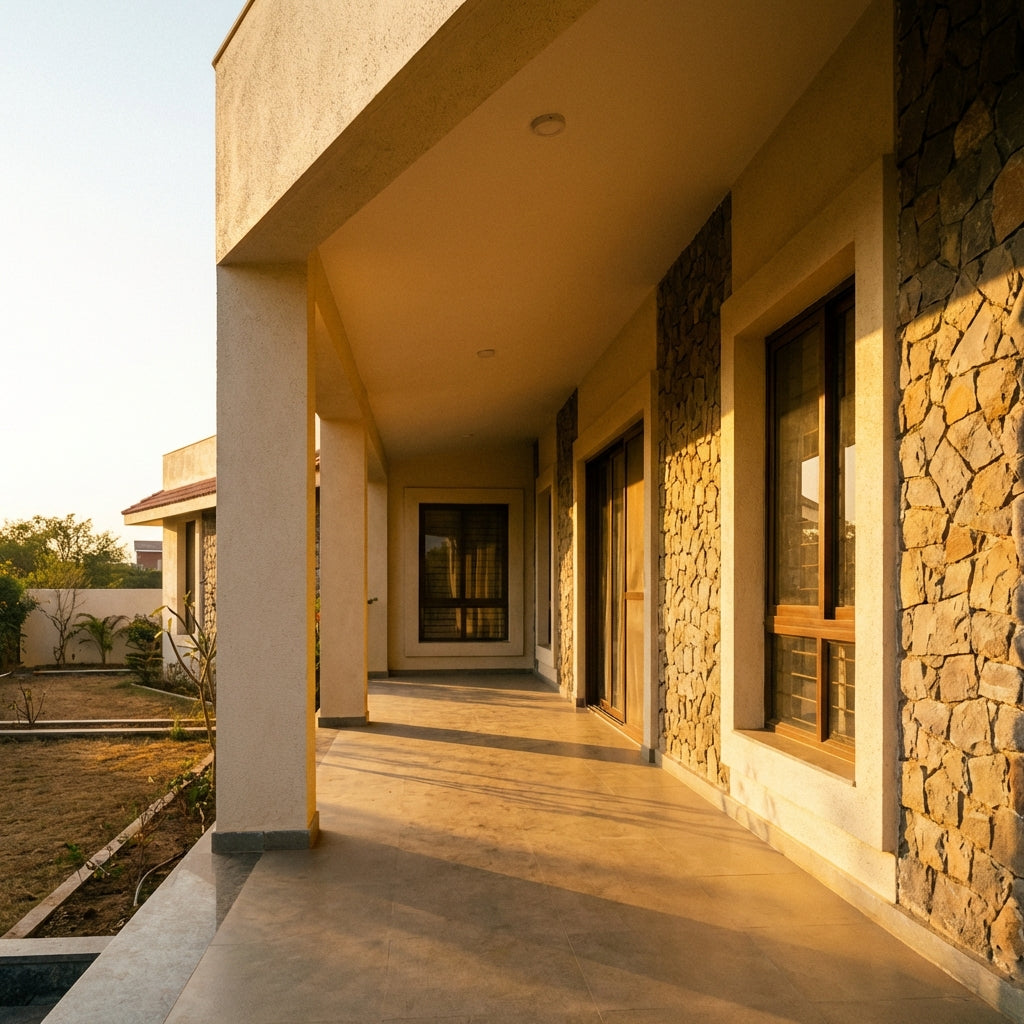

A west-facing 40×60 single-floor bungalow at golden hour — the veranda becomes the home's best room after 4 PM
Most families cross a west-facing plot off their shortlist before the architect even opens their folder. The concerns are predictable: afternoon heat, vastu hesitation, and a nagging sense that "north or east is always better." But step onto the wide front veranda of a well-designed 40x60 house plan on a west-facing plot at 5 PM, feel the breeze come in, watch the golden light fill the living room — and you will understand why this orientation, done right, is genuinely special.
This guide from Ongrid covers everything you need: room-by-room layout, vastu placements, sun-path strategy, 3D elevation options, and a realistic construction cost breakdown — all specific to a 40×60 ft (2,400 sq ft) west-facing single-floor plot.
The West-Facing Advantage: Why This Plot Works Better Than You Think
Sun path for a west-facing plot: morning light at rear rooms, evening golden light at the veranda — manageable with a 4 ft overhang
West-facing plots get a reputation they do not deserve. The afternoon sun is real — but so is the solution. A 7–8 ft deep front veranda, a 4 ft projecting sunshade (chajja), and light-coloured exterior paint together neutralise almost all the afternoon heat load on the facade. What you gain in return is significant.
Evening social space. From October to March, the light on a west-facing facade from 4–7 PM is warm, soft, and beautiful. Your veranda and living room become the most pleasant spaces in the house after work hours.
Cross-ventilation advantage. In most of peninsular India, prevailing evening winds blow from the south-west or west. A west-facing opening catches them directly. Pair this with high-level louvre windows at the rear and you get natural stack-effect ventilation without a fan running.
Plot cost saving. West-facing plots in many BDA, HMDA, and CMDA layouts are priced 5–10% below equivalent north or east-facing plots. On a ₹50L land budget, that gap is ₹2.5–5L — enough to fund your entire kitchen fit-out.
Full-width street presence. On a 40 ft wide plot, your west face spans the entire road frontage. That makes a continuous 40 ft veranda possible — a design asset that interior plots or corner plots rarely achieve.
For a single-floor 40x60 house plan specifically, this orientation is particularly effective. No staircase cuts into your floor area. Every square foot serves as living space, and the bungalow silhouette with a wide shaded veranda reads as gracious and well-considered from the street.
40x60 Ground Floor Layout — Room by Room
Ground floor plan: 1,450 sq ft built-up area with west veranda, NW kitchen, SW master, and NE pooja room
On a 40×60 ft plot with standard setbacks (10 ft front, 5 ft rear, 3 ft each side), the buildable footprint is approximately 34×45 ft — roughly 1,530 sq ft of permissible covered area. A typical Ongrid layout for this configuration uses ~1,450 sq ft of built-up area, leaving open space for a rear kitchen yard and side ventilation passages.
West Veranda and Entry Zone
The 40 ft wide west face opens to a 7×40 ft covered veranda — the signature outdoor room of this design. Stone-clad columns, a 4 ft projecting chajja above, and a 5 ft planted buffer between the gate and the veranda edge handle the afternoon sun. The main entrance door sits in the NW quadrant of the west wall. This is the most vastu-auspicious position for a west-facing home (the Sugriva pada — more on that in the vastu section).
Living and Dining Space
Immediately inside the entry is a combined 18×14 ft living and dining area (252 sq ft). Large sliding or casement windows open to the veranda — the veranda acts as a thermal buffer, so the living room stays 3–4°C cooler than open-to-sky alternatives. The dining area connects directly to the kitchen on the north side, supporting easy meal service and supervision of the kitchen from the living area.
Kitchen and Utility
The 12×10 ft modular kitchen occupies the NW corner — the correct vastu placement for cooking in a west-facing home (wind/Vayu element in the northwest aligns with the fire element). The cook faces east while working, satisfying the "agni faces east" principle without any compromise to the floor plan logic. A 6×5 ft utility and wash area sits behind the kitchen with direct access to the rear yard, keeping wet work separate from living zones.
Master Bedroom (SW Corner)
The 14×12 ft master bedroom is placed in the SW corner — the heaviest, most stable vastu zone (Nairritya direction, earth element). An attached 5×8 ft bathroom and a 3×6 ft wardrobe passage create a self-contained primary suite. A south-facing window provides natural light and ventilation through the day. Ideal bed orientation: head to south or west, feet to north or east.
Secondary Bedroom
A 12×10 ft secondary bedroom is placed in the SE zone, adjacent to the master. It shares a 5×6 ft common bathroom or has its own attached toilet depending on budget. This room suits parents, a guest suite, or an older child. SE placement receives morning sun via an east-facing window, making it bright and fresh through the first half of the day.
Pooja Room (NE Corner)
The 6×6 ft pooja room is fixed in the NE corner — the Ishanya zone, the most spiritually charged direction in vastu shastra. The idol faces east, catching the first morning light. Even on a west-facing plot, the interior NE corner receives indirect morning light through east-facing side windows. A small overhead skylight enhances the sacred ambiance further.
A lobby, internal corridor, and bathrooms complete the layout. The rear 5 ft setback becomes a kitchen garden or utility yard. Total built-up area: approximately 1,450 sq ft on a 2,400 sq ft plot.
Vastu Guidelines for West Facing 1-Floor Homes
Vastu zone map for a west-facing 40x60 plot: NW entry and kitchen, SW master, NE pooja — all fully compliant
West-facing homes are fully vastu-compliant when designed correctly. The most common anxiety — that a west-facing door is inauspicious — comes from a misreading of vastu texts. What vastu actually says is that the door should not be placed in the central Pitru pada (2nd or 3rd quarter of the west wall). Placing it in the NW quadrant (Sugriva or Pushpadanta pada) is explicitly permitted and considered auspicious.
| Space | Placement | Vastu Reasoning |
|---|---|---|
| Main door | West face, NW quadrant | Sugriva/Vayu element; auspicious entry for west plots |
| Living room | West/NW zone | Near entry; catches evening breeze |
| Kitchen | NW corner | Vayu element supports fire; cook faces east |
| Master bedroom | SW corner | Nairritya/Earth element; stability for homeowners |
| Guest/secondary room | SE or NW | Both acceptable; SE for guests preferred |
| Pooja room | NE corner | Ishanya/divine energy; mandatory sacred zone |
| Bathrooms | NW or SE | Away from NE and SW corners |
| Underground sump | NE or N | Water element aligns with Ishanya direction |
| Overhead water tank | SW | Heaviest fixture in the most stable zone |
| Future staircase | SE or SW | Avoids NE; SE preferred for future expansion |
One common vastu concern with west-facing homes is placement of the main entrance in the "Pitru pada" — roughly the centre-west zone. Ongrid's architects handle this by offsetting the door to the NW quadrant (Sugriva or Pushpadanta pada), both considered auspicious in classical vastu texts.
For a detailed vastu review specific to your plot dimensions and shape, Ongrid's architecture services include a vastu overlay as part of the concept design stage.
Sun Path Strategy and Climate Design
Understanding how the sun moves across your west-facing plot lets you make smarter design decisions at no extra cost.
Morning (7–11 AM): The sun rises from the east — the rear of your plot. East-facing rooms (master bedroom, secondary bedroom) receive direct morning sun. This is why placing bedrooms at the rear of a west-facing plan is a climate-smart choice, not a compromise.
Afternoon (12–4 PM): The western facade takes direct sun. Three passive design moves manage this completely. First, a 4 ft projecting chajja above the veranda beam blocks the high-angle midday sun. Second, a deciduous tree planted 15 ft from the west facade provides shade from April to October, then drops leaves in winter to let in warming light. Third, light exterior paint (white, cream, or light yellow) reduces surface heat absorption by 15–20% compared to dark tones.
Evening (4–7 PM): The sun drops lower and turns golden. With the veranda shaded, the direct western light now enters the living room at a pleasant low angle — warm, not harsh. This is the lifestyle payoff of a west-facing plot: the home's most-used spaces are at their best when the family is actually home.
Ventilation: Install louvred ventilators at high wall level in the west wall. Hot air rising from the veranda finds an exit point, drawing cooler air in through east-facing rear windows. This stack-effect ventilation requires no mechanical assistance and works year-round.
For more on climate-responsive design, Ongrid's sustainable design blog covers passive cooling and daylighting strategies for Indian homes.
Elevation and 3D Design Ideas
Contemporary west-facing bungalow elevation: flat RCC roof, stone-clad columns, and fixed glazing behind the veranda
The wide west-facing facade of a 40x60 single-floor house plan gives you one of the best design canvases in residential architecture — fully visible from the road, with depth added by the veranda layer. Three elevation styles suit this plot particularly well.
Contemporary Bungalow: Flat or low-slope Mangalore tile roof, stone cladding on veranda columns, warm cream or terracotta plaster on main walls. Large fixed glazing in the living room, visible behind the veranda, adds depth and openness. This style suits Bangalore, Mysuru, Pune, and most tier-2 Deccan towns.
Modern Minimal: Flat RCC roof with a thin parapet, grey textured plaster, and frameless glass railings along the veranda edge. Clean horizontal lines emphasise the full 40 ft width. Works well in Hyderabad, Chennai, and urban plotted developments where neighbours have contemporary homes.
Kerala / Coastal Vernacular: A sloping Mangalore tile roof with deep overhangs, wooden columns on the veranda, and lime-washed plaster. Climatically ideal for high-rainfall and coastal regions — the deep overhang is both functional and beautiful.
Browse Ongrid's simplex elevation collection or explore 200 modern elevation designs for specific design references before your brief. The home elevations blog also covers current trends in Indian residential facades.
Construction Cost for a 40x60 Single-Floor West Facing Home
Construction cost tiers for a ~1,450 sq ft single-floor home on a 40×60 plot (2026 estimates)
With approximately 1,450 sq ft of built-up area, here is a realistic cost range for your 40x60 house plan across city tiers:
| City Tier | Rate (₹/sq ft) | Total Estimate |
|---|---|---|
| Tier 1 (Bengaluru, Mumbai, Delhi, Pune) | ₹2,000 – ₹3,500 | ₹29L – ₹51L |
| Tier 2 (Mysuru, Coimbatore, Nagpur, Vizag) | ₹1,500 – ₹2,500 | ₹22L – ₹36L |
| Tier 3 (smaller towns, rural areas) | ₹1,200 – ₹2,000 | ₹17L – ₹29L |
What affects cost most on a single-floor home:
Veranda and exterior finish: The wide west veranda adds roughly 100–150 sq ft of covered outdoor area. Natural stone flooring and decorative columns for this zone cost ₹800–₹1,200/sq ft. Budget ₹1–1.5L specifically for the veranda finish.
Roof type: A Mangalore tile roof saves ₹80,000–₹1,20,000 compared to a flat RCC slab on a 1,450 sq ft footprint. The tile roof requires periodic maintenance; the flat roof has higher upfront cost but is maintenance-light.
Future floor provision: Designing the foundation and columns for two floors now adds ₹1.5–3L to current cost but saves ₹8–15L versus retrofitting a new structural system later. Request this explicitly if you might build upward within 10 years.
Use Ongrid's home construction cost calculator for a location-specific estimate. For design drawings and approvals, the HomeBlueprints Advance Plus service covers concept through working drawings for a fixed fee. If you prefer a ready-to-use plan set, explore Ongrid's complete home plan collection.
The west veranda becomes the family's evening gathering space — the lifestyle payoff of getting this orientation right
Ready to start? Book a consultation with an Ongrid architect or explore custom home plan options tailored to your specific 40×60 west-facing plot.
Is a west facing 40x60 plot good for a house?
Yes, absolutely. A west-facing 40×60 plot is excellent for a single-floor home when designed with a proper front veranda, sunshades, and correct vastu placement. The concerns about afternoon heat and vastu are both fully managed through design. West-facing plots also often cost 5–8% less than north or east-facing plots of the same size in the same layout — a direct saving on land acquisition that can fund better finishes or a larger veranda.
What is the ideal room layout for a 40x60 west facing house plan?
Place the main entrance in the NW quadrant of the west wall. The living room sits behind the veranda on the west side. Kitchen goes in the NW corner (vastu and ventilation both favour this). Master bedroom in the SW corner (earth element, stability). Pooja room in the NE corner. This layout keeps morning sun reaching rear bedrooms and reserves the evening-lit west face for social and living spaces — both climatically and vastu-correctly aligned.
How many rooms can fit in a 40x60 single floor house plan?
With standard setbacks, a 40×60 plot yields about 1,400–1,550 sq ft of covered area on the ground floor. That comfortably accommodates: 2 full bedrooms with attached bathrooms, a combined living-dining area (18×14 ft), a 12×10 ft kitchen, a pooja room, a utility area, and a 7 ft deep front veranda. A third bedroom is possible by reducing veranda depth to 5 ft or using compact bathroom layouts.
What does it cost to build a 40x60 single floor house in India?
Construction cost for a 40×60 single-floor home (approximately 1,450 sq ft built-up) ranges from ₹17L to ₹51L depending on city tier and finish quality. Tier 1 cities (Bengaluru, Mumbai): ₹29L–₹51L. Tier 2 cities (Mysuru, Coimbatore): ₹22L–₹36L. Tier 3 and smaller towns: ₹17L–₹29L. These are 2026 estimates for mid-to-good quality finishes, excluding land cost.
Is vastu really a problem for west facing houses?
No — not when the design is done correctly. Vastu Shastra does not prohibit west-facing homes. It provides specific guidelines for them: place the main door in the NW quadrant (Sugriva pada), kitchen in NW, master bedroom in SW, and pooja room in NE. Following these placements makes a west-facing home fully vastu-compliant. The "west is bad" belief is a misreading of vastu texts, not the texts themselves.
Can I add a second floor to my 40x60 single floor house later?
Yes, with planning. If your foundation and column sizes are designed for two floors from the start ("future provision"), adding a second floor later requires no demolition of the existing structure. This upfront provision costs ₹1.5–3L extra but saves ₹8–15L compared to retrofitting a new structural system after construction. Request this explicitly at the design brief stage — Ongrid's architects include it as a standard option on single-floor designs.
How do I get a vastu-compliant west facing 40x60 house plan designed?
Ongrid offers COA-certified architect-designed house plans with vastu compliance built in from the concept stage. Options include a ready-made customised plan, the online home design service, or hiring a top architect online for a fully bespoke design. You can also book a consultation to discuss your specific plot before committing to a service.
