20x40 House Plan | 4 Floor West Facing Design

Building on a west-facing 20x40 plot is an exercise in intelligent vertical design. Most homebuilders see west-facing as a challenge: afternoon sun, heat buildup, difficult vastu compliance. But the reality is more nuanced. This 4-floor (G+3) house plan transforms those constraints into opportunity. By stacking compact, efficiently designed floors, you maximize living space without sprawling into a large footprint. Smart architectural placement—deep overhangs, cross-ventilation, vertical shading—keeps your home cool even as the afternoon sun beats down. Add vastu-aligned room positioning, and you have a home that's both functionally brilliant and spiritually harmonious. At just 800 sq ft total, this 20x40 plan proves that you don't need land area to live well.

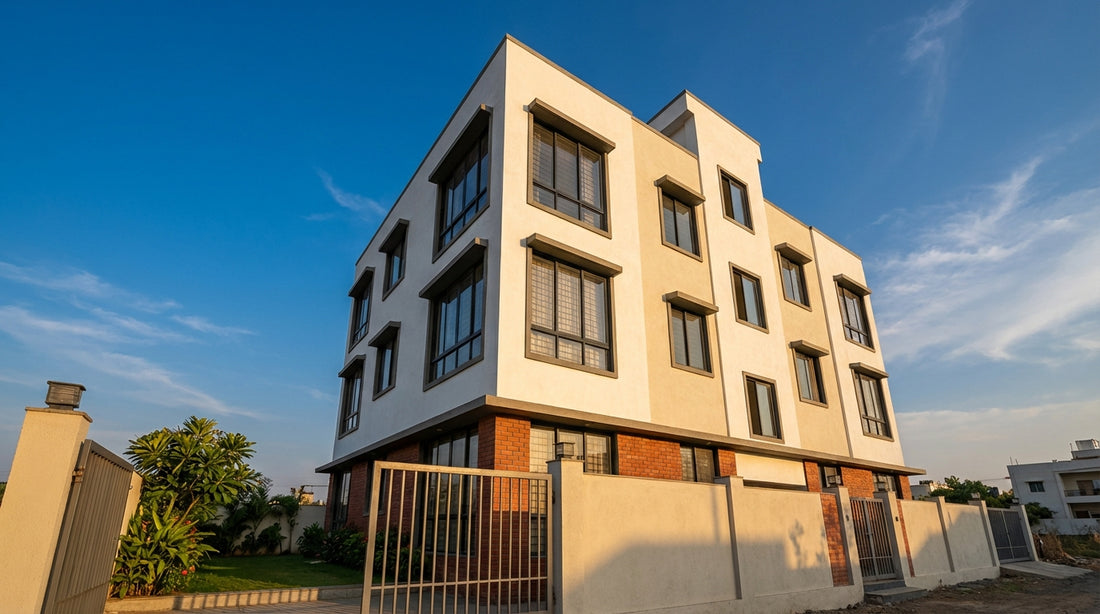

Photorealistic 3D elevation of a 20x40 west-facing 4-floor home with heat-mitigation overhangs and efficient vertical massing. Design by Ongrid.

What You'll Find in This Guide

• Why Choose West-Facing?
• Floor-by-Floor Breakdown
• Design Features
• Vastu Compliance
• Construction Costs
• FAQs

Why Choose a West-Facing 20x40 Plan?

West-facing properties have a reputation for being hot and difficult to vastu-comply. But the reality is more nuanced. Yes, afternoon sun is real—but you also gain consistent evening breeze, a naturally shaded garden during peak heat, and a layout that works beautifully with India's climate patterns. In cities like Pune and Indore, that evening breeze from May through October is invaluable for cooling.

The architectural solution is design discipline. This 4-floor plan places your primary living spaces (living room, kitchen) on the northeast, where they catch morning light and stay cool through the afternoon. Upper floors, where bedrooms dominate, benefit from stacked overhangs and vertical ventilation—the master bedroom on the upper floors gets evening breeze while staying shaded from afternoon glare. The ground floor, typically public-facing, includes guest rooms and utility spaces that tolerate less stringent cooling.

From a vastu perspective, west-facing isn't a limitation—it's a different energy. Your main entrance occupies the northwest or north corner, inviting prosperity (Vayu). Your kitchen, positioned in the southeast, aligns perfectly with Agni (fire element). Your garden slopes eastward toward morning light and afternoon shade. For a deeper understanding, review our guide on vastu tips for new homeowners.

West-facing sun path: morning light brightens living areas, afternoon protection shields upper bedrooms through overhangs. Design by Ongrid.

Floor-by-Floor Breakdown

This 800 sq ft home spreads across 4 compact stories, optimizing vertical living for a small family, young couple, or owner-occupied small business.

Ground Floor Layout (20 ft × 40 ft)

Living Room (10 ft × 12 ft): Northeast corner, full-height windows on north and east sides. Receives morning sun and north light all day. Open to kitchen, creating a spacious feel despite compact footprint.

Kitchen (8 ft × 10 ft): Southeast corner, following vastu Agni placement. Adjacent to living room with pass-through counter. Ventilation windows on east and south. Space for a small dining table.

Guest/Flex Room (8 ft × 8 ft): East-facing, can serve as guest bedroom, home office, or meditation space. Window on east captures morning light. Door opens to central staircase for easy access.

Bathroom 1 (5 ft × 6 ft): Ground floor, accessible from living areas. Ventilated through an east window for moisture escape.

Staircase & Landing (4 ft × 6 ft): Central circulation hub, efficient design minimizes wasted space.

Parking/Covered Portico (8 ft × 14 ft): West side under deep 2m overhang. Protects vehicles and creates shaded entry zone. Overflow garden space to the south.

Ground floor plan: 20×40 layout with northeast living spaces, southeast kitchen (vastu-aligned), and west-facing covered parking. Design by Ongrid.

First Floor Layout (20 ft × 40 ft)

Master Bedroom (12 ft × 14 ft): Southwest corner, positioned to catch evening light and cross-ventilation. Attached bathroom (5 ft × 7 ft) for privacy. North-facing window brings cool morning breeze. Balcony on east or north side opens to air circulation.

Secondary Bedroom/Den (8 ft × 10 ft): Northeast position, bright morning light, excellent for guest accommodation or office space.

Bathroom 2 (4 ft × 6 ft): Accessible from secondary bedroom.

Landing & Staircase (4 ft × 6 ft): Continues vertical circulation, well-lit through north and east windows.

Balcony/Open Terrace (5 ft × 12 ft): North-facing, shaded by upper floor overhang. Creates outdoor living area, perfect for morning tea.

First floor plan: Master suite positioned southwest for evening light, secondary bedroom northeast for morning brightness. Design by Ongrid.

Second Floor Layout (20 ft × 40 ft)

Bedroom 2 (10 ft × 12 ft): Central position with windows on two sides for maximum cross-ventilation. Cooler than ground floor due to height and air circulation.

Bedroom 3/Study (8 ft × 9 ft): Flexible space, east or northeast facing. Can serve as office, library, or guest room.

Bathroom 3 (4 ft × 6 ft): Shared facility.

Staircase & Landing (4 ft × 6 ft): Continues upward.

Balcony/Terrace (6 ft × 14 ft): North and east sides, semi-covered by upper overhang. Ideal for laundry drying and outdoor relaxation.

Second floor plan: Multiple bedrooms positioned for natural light, cross-ventilation maximizes cooling efficiency. Design by Ongrid.

Third Floor/Terrace (20 ft × 40 ft)

Utility/Storage (4 ft × 8 ft): Water tank room, equipment storage, accessible but out of sight.

Open Terrace/Roof Garden (12 ft × 32 ft): Primary outdoor living space. North and east sides fully open to breeze. South and west sides feature vertical shade structures (jali screens or pergolas) to block afternoon sun while maintaining ventilation. Perfect for growing plants, evening relaxation, or future conversion to covered livable space.

Staircase Access (4 ft × 4 ft): Final transition to terrace level.

Third floor/terrace plan: Open-air living with vertical shade for afternoon protection, utility room strategically placed. Design by Ongrid.

Design Highlights for West-Facing Homes

What sets this 20x40 G+3 design apart from generic 4-floor layouts is the strategic response to heat and light.

Deep Overhangs (1.5–2m): The west-facing facade features substantial overhangs extending from the second and third floors. In the Northern Hemisphere (India's position), a 1.5m overhang blocks approximately 90% of afternoon summer sun at ground level while allowing winter light to penetrate for warmth. This passive cooling strategy eliminates the need for extensive air-conditioning and saves ₹50,000–₹100,000 in electrical load.

Vertical Shading: Jali screens (perforated stone or wooden lattice) on the west elevation create decorative shadow patterns while allowing air to flow. These traditional Indian elements provide both functional and aesthetic value—your home looks beautiful while staying cool.

Cross-Ventilation: Windows are positioned on opposite sides of each floor to create natural airflow. Northeast-facing windows pull in cooler morning air; northwest and north windows capture the prevailing evening breeze. This strategy—combined with ceiling fans and proper placement—keeps even upper floors naturally cool through April-May, the hottest months.

Color & Materials: Light-colored exterior finishes (white, cream, light grey) reflect solar heat. Locally sourced materials reduce embodied carbon and adapt to local climate (red brick for thermal mass, white plaster for reflection).

Ventilated Roof Design: The terrace includes ventilation gaps beneath any future roofing structure, allowing hot air to escape rather than being trapped. This keeps upper floors 2–3°C cooler than poorly ventilated alternatives.

Design highlights: Deep overhangs block afternoon sun, jali screens add ventilation, windows positioned for cross-air flow. Design by Ongrid.

Vastu Compliance for 20x40 West-Facing Design

This plan follows classical vastu principles adapted for west-facing properties and vertical layouts:

Main Entrance (Northwest or North): Positioned on the north or northwest side of the ground floor, inviting Vayu (wind/prosperity). Enters directly into the living room, creating a flowing circulation pattern.

Kitchen (Southeast): Ground floor southeast corner aligns with Agni (fire element). The stove placement here is structurally efficient and vastu-correct. Window placement ensures morning light and steam ventilation.

Master Bedroom (Southwest): First floor southwest location aligns with Nairutya (southwest direction associated with power and stability). Elevated position away from ground-level traffic ensures privacy and rest quality. Attached bathroom adds luxury without compromising vastu principles.

Pooja Room/Sacred Space (Northeast): A small alcove on the first or second floor northeast corner serves as meditation or prayer space. Even a 4 ft × 4 ft niche with a small shrine works beautifully and aligns perfectly with vastu's northeast emphasis.

Open Center (Brahmasthana): While a 20×40 plot is compact, the staircase well and landing areas create an open, light-filled central passage—the modern equivalent of the traditional brahmasthana (center). This open circulation ensures prana (life force) flows through the home.

Staircase Placement (Southwest or Center): Positioned away from the main entrance (northwest), the staircase avoids creating a "downward flow" from entry. A centered or southwest staircase maintains proper energy circulation.

Vastu layout: NW entrance (Vayu), SE kitchen (Agni), SW master bedroom (power), NE pooja room (spirituality), center open staircase. Design by Ongrid.

Construction Cost Estimate

For a 20x40 west-facing 4-floor home (800 sq ft total), construction costs vary significantly by city and finish level.

Tier-1 Cities (Delhi, Bangalore, Mumbai)

• Total estimated cost: ₹16–24L
• Per sq ft: ₹2,000–3,000
• Breakdown:
  • Structure (RCC frame, brickwork, cement): ₹6.5–9L (40–45%)
  • Finishes (flooring, paint, doors, windows): ₹4–6L (25–30%)
  • Fittings (kitchen cabinets, bathroom fixtures, hardware): ₹2.5–4L (15–20%)
  • MEP (electrical, plumbing, AC ducting): ₹1.3–2L (8–10%)
  • Design & supervision: ₹0.8–1.2L (5%)

Tier-2 Cities (Pune, Jaipur, Indore, Lucknow)

• Total estimated cost: ₹12–18L
• Per sq ft: ₹1,500–2,250
• Breakdown: Same percentages, lower absolute figures due to lower labor and material costs

Tier-3 Cities (Nashik, Aurangabad, smaller metros)

• Total estimated cost: ₹10–14L
• Per sq ft: ₹1,250–1,750

Note on G+3 Premium: Multi-story construction adds 15–20% to baseline cost compared to a single-floor equivalent, due to:

• Additional staircase structural load
• Separate water supply/drain risers per floor
• Electrical distribution across 4 levels
• More complex waterproofing requirements

For detailed cost breakdown and customization, explore our construction cost calculator.

Construction cost breakdown for 20x40 4-floor west-facing home: Total ₹12–18L in Tier-2 cities. Design by Ongrid.

Frequently Asked Questions

How do you cool a west-facing home in India?

The key is passive design, not just air-conditioning. This plan uses (1) deep 1.5–2m overhangs to block 90% of afternoon sun, (2) cross-ventilation through strategically placed windows, (3) lightweight colors and materials that reflect heat, (4) jali screens that allow airflow while blocking direct sun. Combined, these reduce air-conditioning load by 30–40% compared to poorly designed west-facing homes, saving ₹500–₹1000/month on electricity.

Can you really fit 4 usable floors on a 20×40 plot without it feeling cramped?

Yes, with smart design. Each floor is 200 sq ft, which is compact but livable. Ground floor handles public spaces (living, kitchen, guest room), first floor has the master suite, second floor has 1–2 additional bedrooms, and the third floor is terrace/utility. The vertical stacking means you have as much usable space as a sprawling single-floor 2BHK but on a fraction of land. The constant access to stairs does require psychological adjustment, but most residents find 4-floor living surprisingly comfortable once they settle in.

Is west-facing really problematic from a vastu perspective?

No, it's simply different from east-facing. West-facing homes have their own energy signature. Your main entrance in the northwest invites Vayu (wind/movement/business prosperity). Your kitchen in the southeast aligns with Agni (transformation/wealth). The afternoon sun becomes a feature, not a bug, bringing energy in the evening when homes are most active. Many successful businesses and families thrive in west-facing homes—orientation is just one of many vastu factors.

How much space does a staircase take in a 20×40 plan?

In this design, the staircase occupies approximately 4 ft × 6 ft per floor, totaling about 96 sq ft across all flights. This is roughly 12% of total area—reasonable for efficient circulation. The staircase placement (central or southwest) is chosen to maintain vastu flow while minimizing dead space.

Can you fit a car in the parking area?

Yes. The design includes an 8 ft × 14 ft covered portico on the west side, sufficient for one small-to-mid-size car (most Indian vehicles are 4.5–4.8 m long and 1.8–2 m wide). The overhang protects the vehicle and creates a shaded entry zone. A second vehicle would need to park outside the compound or in a nearby public lot, which is typical for 20×40 plots in Indian cities.

What's the resale value of a 4-floor west-facing home?

Vertical homes have become increasingly popular in Indian cities due to land scarcity. A well-designed 4-floor home with proper vastu, cooling strategy, and modern finishes can achieve resale value equal to or exceeding a sprawling single-floor alternative on the same plot size. The key is perceived livability—if the home feels spacious and comfortable (which this design achieves through light, ventilation, and aesthetics), buyers will value it. West-facing orientation, once a stigma, is now neutral to slightly positive if cooling and sun management are visibly excellent.

Design Your Dream Home with Ongrid

This 20x40 west-facing 4-floor house plan is ready to build. You have two options:

Option 1: Ready Plan — Download the complete plan set (₹4,999) including floor plans, elevations, sections, material specifications, and a 3D rendering. Ready to show your builder and local authorities.

Option 2: Custom Design — Work with our COA-certified architects to adapt this plan to your exact needs (bedrooms, kitchen, parking, outdoor space). Pricing: ₹22/sqft (basic) to ₹25/sqft (advanced with rendering and 3D walkthrough). For this 800 sq ft home, expect ₹17,600–20,000 for full custom design.

Modern living spaces in a 4-floor west-facing home: bright northeast living room, open kitchen, natural cooling from cross-ventilation. Design by Ongrid.

Ongrid has spent 20+ years designing homes for Indian families. We're COA-certified, IGBC members, and IIID credentialed—we bring structural safety, green building practices, and spatial expertise to every plan. Whether you buy ready or go custom, your design is delivered online: CAD files, 3D renders, detailed specifications, and a cost estimate. No surprises, no delays.

Ready to start? Browse our complete collection of 20x40 house plans or explore all west-facing designs. Or book a free 30-minute consultation with one of our architects to discuss your plot, vision, and budget.

Your west-facing 20x40 plot is not a limitation—it's an opportunity to build smart, vertical, and beautiful.
