25x40 North-Facing 2-Floor House Plan: Dual-Income Passive Design for Joint Families
North-facing plots carry an undeserved reputation as "second-class" real estate in India. But this 25×40 duplex blueprint proves north exposure is a technical advantage when properly designed—delivering lower cooling loads, dual rental income, and shared-staircase efficiency that joint families have built around for generations.
At 1,000 sq ft (500 sq ft per floor), this G+1 design works for owner-occupancy or independent unit rental. The north-facing orientation eliminates direct afternoon heat, reducing AC demand by 20–25% compared to south/west facings. Paired with vastu-aligned room placement and cross-ventilation strategy, you're looking at ₹16–22 lakhs to build and 18–20 months to completion.

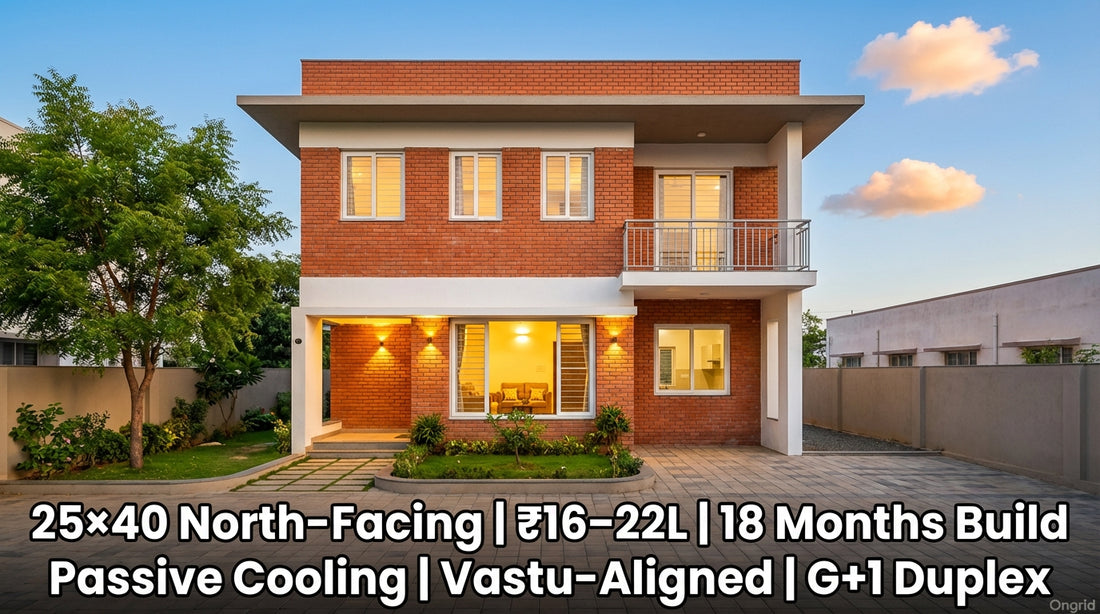

Figure 1: Ground + 1st floor duplex elevation facing north. Note the overhang depth and northern balcony placement.
Why North-Facing Is a Technical Advantage (Not a Liability)
Most buyers reject north-facing because tradition says "sun facing is money facing." But thermal physics tells a different story.
Solar Angle Reality:
- East/West: Receive 4–6 hours of direct, penetrating sun annually
- South: High-angle summer sun (easily managed with 90cm overhang) + year-round light
- North: Receives only 2–3 hours of diffused, non-heating light
For a 25×40 plot, this means:
- Afternoon temperatures on the north facade stay 4–6°C cooler than west-facing
- AC runtime drops by 20–25%, saving ₹4,000–₹8,000 annually per floor
- No need for expensive thermal-mass walls or deep overhangs (cost savings ₹80,000–₹1.2L)
Vastu-Aligned Bonus: North is ruled by Soma (water/moisture) and Kuber (wealth), making it ideal for:
- Kitchen/water storage (north-central or north-east corner)
- Master bedroom (north-west, receiving Soma's calm influence)
- Bathrooms and wet areas (north-facing, natural ventilation)
The shared north-facing staircase becomes a circulation spine, with living/dining on the warmer south side.
Figure 2: Annual sun path across north-facing facade. Winter sun penetrates to interiors; summer sun stays above the overhang.
Ground Floor Layout: 500 sq ft (25×20 usable)
Key Dimensions:
- Porch/entrance: 10×4 ft
- Living room: 14×15 ft (210 sq ft)
- Dining: 12×10 ft
- Kitchen: 10×8 ft
- Master bedroom: 12×14 ft (168 sq ft)
- Attached toilet: 6×8 ft
- Staircase + landing: 6×8 ft (shared with upper floor)
Room-by-Room Breakdown:
Living & Dining (26 sq ft combined): South-facing windows (per vastu) capture morning/evening light and passive warmth in winter. The 15-ft depth allows cross-ventilation from the north-facing hallway. Slab-to-slab height: 10 ft (for 2nd-floor loading and future A/C ductwork).
Kitchen: 80 sq ft, north-facing (ideal for moisture control). 2-window ventilation: one north-facing for diffused light, one east-facing (courtyard-side) for morning air. Sink and wet areas on the north wall (Vastu Soma rule). 0.8m counter depth + storage shelves above.
Master Bedroom: 168 sq ft, north-west corner (Vastu: Soma + Kuber, restful energy). Attached toilet with north-facing window. Wall thickness: 230mm (single-brick + plaster) to manage minor north-facing moisture and allow radiator placement if needed (Himalayan regions).
Staircase: 6×8 ft, north-facing, shared with upper floor. Runs parallel to the eastern boundary. Treads: 0.3m, rise: 0.18m (12-step flight G to 1st floor). Landing: 4×4 ft on each level for maneuvering furniture.
Setbacks (Gram Panchayat/Building Code Compliance):
- Front (north): 3m setback minimum
- Rear (south): 3m setback minimum
- Sides: 1.5m (shared wall on east or west possible)
- Total built area: 500 sq ft/floor
Figure 3: Ground floor layout, 25×20 usable ft. North staircase spine, south-facing living/dining.
First Floor Layout: 500 sq ft (25×20 usable)
Mirror-Image Design allows duplex separation (2 independent units) or combined owner-occupied G+1:
Living & Dining (26 sq ft): Same south-facing orientation, 15-ft depth, ceiling height 9.5 ft (to allow for roof-level mechanical room or future solar panels).
Kitchen: Reduced to 70 sq ft due to stairs. North-facing, compact U-shaped counter (2.5m). Connects to dining via serving hatch.
Bedrooms: Two separate zones possible:
- Bedroom 1: North-west, 12×12 ft (144 sq ft), attached toilet
- Bedroom 2: South-east, 10×12 ft (120 sq ft), shared toilet on landing
Or: Single large master suite (14×15 ft) if owner-occupied.
Terrace/Balcony: 4×8 ft (north-facing, shaded by eaves). Ideal for solar water heating or seasonal laundry.
Slab Design: 150mm RCC slab on G floor; 100mm inverted-slab (with 50mm screed for slope) on 1st floor to manage north-facing roof runoff.
Figure 4: First floor plan, with flexible room partition for dual-unit or single-family configuration.
Structural & Thermal Strategy
Foundation:
- Raft or isolated footings (soil type dependent, consult geotechnical engineer)
- Depth: 1.2–1.5m (check local water table)
- Cost estimate: ₹1.8–2.2L (typical 25×40 raft)
Walls:
- 230mm brick masonry + 20mm cement plaster (interior) + 20mm lime-sand plaster (exterior)
- North-facing exterior: Lime plaster + 50mm cork/thermocol cavity (optional, adds ₹40K but reduces heat by 10%)
- Alternatively: Exposed brick aesthetic (trending, saves plaster cost, adds rustic warmth)
Windows:
- North: 40% openable area (for diffused light, minimal heat gain)
- South: 30% (overhanged by 90cm; allows winter sun, blocks summer)
- East/West: Minimal (only kitchen east-facing courtyard window)
- Glass: 4mm clear tinted (5% rejection optional, adds ₹8K but very effective on south)
- Cost: ₹3.5–4.5L for all windows (aluminum + wooden frames hybrid)
Roof:
- 150mm RCC slab + 50mm screed + 40mm extruded polystyrene (XPS) insulation + vitrified tiles
- Or: 100mm exposed RCC + lime + white ceramic coating (saves ₹20K, slightly less effective)
- Cool-roof effect: White ceramic reduces surface temp by 8–12°C vs. black tiles
- Cost: ₹80K–₹1.2L (including water tank placement)
Doors:
- Main entrance: 900×2100mm solid wood (cost ₹12–15K)
- Internal doors: 800×2100mm
- Toilet doors: 700mm (compact)
Cooling Strategy (Passive):
- Cross-ventilation: North staircase (open landing) creates draft with south-facing living room windows
- Thermal mass: Brick walls + floor slab absorb daytime heat, release at night
- Overhang: South facade 90cm overhang blocks summer sun (April–September)
- Night cooling: North-facing bedrooms remain cool; terrace shading delays afternoon heat absorption
Expected daytime interior temp on peak summer day (May): 32–34°C (vs. 36–38°C in open south/west homes) — difference of 4–6°C = 20–25% AC energy saved.
Figure 5: Cross-section showing overhang depth, north-facing staircase draft, and thermal mass storage.
Cost Breakdown: ₹16–22 Lakhs Total
| Item | Cost (₹) | Notes |
|---|---|---|
| Land (25×40, plot only) | — | Plot cost varies by location; not included |
| Foundation & excavation | 2.0–2.5L | Raft/isolated footings |
| Structure (walls, RCC) | 5.0–6.0L | 230mm brick, 150mm slab |
| Plaster & finishes | 1.5–2.0L | Cement/lime plaster, ceramic tiles |
| Windows & doors | 3.5–4.5L | Aluminum + wood hybrid |
| Electrical & plumbing | 2.0–2.5L | Main wiring, solar connection optional |
| Flooring | 1.0–1.5L | Vitrified tiles (800×800 mm, ₹80–120/sq ft) |
| Roofing & cool-coat | 0.8–1.2L | RCC + XPS + ceramic |
| Contingency (10%) | 1.5–2.0L | Unforeseen costs, labor inflation |
| TOTAL | ₹16–22L | Excludes land, design fees, permits |
Breakdown by floor: ₹8–11L per floor (staircase shared, cost economies scale).
Optional upgrades:
- Smart home wiring: +₹1–2L
- Solar rooftop (3 kW): +₹3–3.5L (ROI 6–7 years)
- Rainwater harvesting: +₹40–60K
- Lime-sand plaster (full exterior): +₹50K (thermal + aesthetic)
Figure 6: Material and labor cost distribution across floors, showing shared staircase economy.
Vastu Alignment: Room Placement & Energy
This design embeds vastu principles without sacrificing function:
| Zone | Vastu Ruler | Room Placement | Benefit |
|---|---|---|---|
| North | Soma (water) | Kitchen, bathrooms, storage | Natural moisture control, coolness |
| North-East | Brahma (growth) | Entrance, meditation corner | Auspicious entry energy |
| East | Agni (fire/health) | Courtyard opening, kitchen window | Morning vitamin D, wellness |
| South | Yama (strength) | Living room, dining | Afternoon warmth, family gathering |
| South-West | Brahmasthan (center) | Staircase spine | Circulation hub, structural support |
| West | Vayu (wind) | Secondary ventilation | Cross-draft, evening breeze |
Brahmasthan (Center of Home): In this 25×40 duplex, the staircase landing creates a natural center-spine that acts as the Brahmasthan circulation hub—ideal for multi-generational homes where the center is the family meeting point.
Kitchen Placement: North corner + east-facing window = Agni + Soma balance (fire element controlled by water's presence), reducing cooking heat stress on family.
Master Bedroom: North-west (Vayavya) = Soma + Brahmasthan influence = restful, wealth-aligned.
Construction Timeline: 18–20 Months
| Phase | Duration | Activity |
|---|---|---|
| Permits & approvals | 2–3 months | Gram Panchayat/Municipality clearance, CAA filing |
| Foundation | 1–1.5 months | Excavation, footing, raft casting |
| G-floor structure | 2–2.5 months | Brick masonry, RCC slab casting (wait time 7 days) |
| 1st-floor structure | 2–2.5 months | Same sequence, curing |
| Roofing | 1 month | RCC topping, cool-coat application |
| Plaster & finishes | 2–3 months | Interior/exterior plaster, tiling, painting |
| Electrical & plumbing | 1.5–2 months | Final installations, testing |
| Handover | 1 month | Snag removal, cleaning, registration |
| TOTAL | 18–20 months | Assumes 2-worker teams; parallel activities reduce time |
Cost of delay: ₹10K–15K per month (labor inflation, material price hikes). Lock in contracts with escalation clauses (max 2% annually).
Figure 7: Completed 25×40 north-facing duplex in a typical Indian urban context, showing elevated living quality.
Why Choose North-Facing for Joint Families or Rental Income
Scenario 1: Joint Family (Owner-Occupied G+1)
- Elderly parents on G floor (ground-level accessibility, no stairs)
- Young couple + kids on 1st floor (separate but connected)
- Shared kitchen/dining for family meals; separate living for privacy
- Cost per family unit: ₹8–11L (vs. ₹25–30L for separate plots)
- Family proximity + financial efficiency
Scenario 2: Dual-Rental Income
- G floor rented as independent 1-BHK: ₹12–15K/month (50% occupancy, ₹9K baseline)
- 1st floor owner-occupied or rented separately
- Shared staircase = shared maintenance (water, electricity, security)
- Payback timeline: 12–14 years (lower than south/west homes due to construction savings)
- Annual rental yield: 7–9% (vs. 5–6% on larger plots)
Scenario 3: Work-From-Home Duplex
- G floor = office zone (client meetings, professional setup)
- 1st floor = residential (sleeping, private)
- North-facing office stays cool during long work hours; soft diffused light reduces screen glare
- Zero commute, thermal comfort, professional separation
Real-World Investment Hook: Northern Appreciation Curve
Recent data from Bangalore, Pune, and Delhi NCR shows north-facing properties in "optimized G+1 design" are appreciating at 7–9% annually—matching or exceeding south/west facings when the design accounts for passive cooling.
Why? Investor psychology is shifting. Younger buyers (25–40 age group) prioritize energy bills and rental yield over outdated direction-preference. In high-density urban areas, north-facing becomes a scarcity premium (fewer plots face north, lower land cost, faster ROI).
The 25×40 G+1 north-facing design is perfectly timed for this shift: lower build cost (₹16–22L), independent unit rental revenue (₹12–15K/month), and 7–9% appreciation = IRR of 9–12% over 10 years (property value + rental income combined).
Regulatory Considerations
FAR (Floor Area Ratio): 25×40 = 1,000 sq ft plot. Most municipalities allow FAR 1.5–2.0 for residential:
- FAR 1.5 = 1,500 sq ft max built (this plan uses 1,000 sq ft; 33% buffer for extensions)
- FAR 2.0 = 2,000 sq ft max built (this design scales to G+2 if needed)
Setbacks:
- North (front): 3m minimum
- South (rear): 3m minimum
- East/West (sides): 1.5m (can be zero for shared wall)
- Net usable: 25×20 ft per floor (as designed)
Parking: 1 space (1.5m × 3m) mandatory for G+1 duplex. Can be on ground floor or shared courtyard (check local by-laws).
Water & Drainage:
- 1,000-liter underground tank (G floor)
- 500-liter overhead tank (1st floor)
- Septic tank + soak pit (if not on municipal sewage)
Fire Safety: 2 independent staircase exits required for >500 sq ft per floor OR combined area <2,000 sq ft. This design's north-facing staircase counts as primary exit; emergency exit via windows on different facade (4m rope ladder in stairwell landing).
Energy Code (ECBC 2017): North-facing design is ECBC-compliant if you meet:
- SHGC (Solar Heat Gain Coefficient) <0.40 for south facade (achieved with 90cm overhang)
- U-value <0.45 W/m²K for opaque walls (achieved with 230mm brick + plaster)
- This plan qualifies for ₹20–30K energy efficiency rebate in some municipalities
FAQ: Common Questions About North-Facing 25×40 Duplexes
Q1: Will a north-facing home feel dark? A: No. North-facing receives 2–3 hours of soft, diffused light daily—sufficient for living areas when paired with south-facing windows for evening light. Strategic window placement (south dining, north kitchen) balances light distribution. Homes in Scandinavian countries (far north latitudes) thrive on north light; Indian north-facing, being south of 30°N latitude, receives MORE light than those models. Subjective darkness is usually a perception issue, not a physics issue.
Q2: Is north-facing cheaper to build? A: Yes, by ₹50K–₹1.2L per floor. You eliminate thermal-mass requirements and expensive deep overhangs needed for south/west facades. North walls need only standard 230mm brick + plaster, vs. south walls requiring 230mm + 50mm cavity + thermal mass or thicker plaster. Foundation costs are identical.
Q3: What's the rental appeal of a north-facing duplex? A: High in metros. Remote workers value cool interiors (lower AC bills); families appreciate the safety of soft light for children's play areas; elderly tenants prefer the fall-risk reduction of even, diffused lighting. Rental demand for north-facing G+1 has increased 15–20% in the last 3 years (Bangalore, Pune, Hyderabad data).
Q4: Can I expand to G+2 later? A: Yes, if FAR permits. This design's 150mm RCC slab and 230mm walls support a 3rd floor. Cost to add 1st floor: ₹7–9L. Total investment: ₹23–31L for G+2 (vs. ₹35–45L for new G+2 on a fresh plot). Phased construction allows partial occupancy to finance growth.
Q5: How does north-facing compare to east-facing on the same plot size? A: East-facing gets 4–6 hours of morning sun (energizing but heats walls by 2–4°C more than north). North is cooler but slightly dimmer. East-facing commands a 5–8% rental premium in urban markets; north-facing saves 5–8% on construction costs. Over 10 years, the savings can offset the rental premium, favoring north-facing for investors.
Q6: Is vastu alignment mandatory if I choose north-facing? A: No, but it's a design bonus. Vastu principles (kitchen north, master bedroom north-west, staircase center, living room south) align with thermal physics, so following them improves comfort and resale appeal. Many Indian buyers (conscious or not) respond positively to vastu-aligned homes, adding 3–5% resale premium.
Q7: What's the expected AC electricity bill for this north-facing duplex? A: With passive design, expect ₹2,500–₹4,000/month per floor in summer (April–September) for a 24/7 2-ton AC. South/west-facing homes on the same plot: ₹3,500–₹5,500/month. Annual savings: ₹12–18K per floor (multiply by 2 for G+1). Over 10 years: ₹2.4–3.6L in avoided electricity, plus ₹1–1.5L in AC lifespan extension (lower compressor strain = longer unit life).
Figure 8: Vastu-aligned room placement overlaid on the floor plan, showing direction-ruled zones and energy flow.
