Simple Design Style House Plan
- Official Full Measurement Drawing Set
- Essential Drawings for your House
- Access to all your files in .PDF
- Free Home Delivery of Drawing Set

- In stock, ready to ship
- Inventory on the way
- Live Support: Call/Whatsapp on -91-8280-268-000
ย Pack Details |
Essential | Advanced | |
Floor Plan | ![]() |
![]() |
Interior Furnitureย | ![]() |
![]() |
Dimension | ![]() |
![]() |
Exterior 3D View | ![]() |
Yes, 2 Realistic View |
2D Exterior View | ![]() |
Yes, 4- Sides |
Dimension for View | ![]() |
Yes |
ย
ย Package Contains |
Essential | Advanced | |
Soft Copy | .PDF filesย ![]() |
.PDF filesย ![]() |
Hard Copy | 2 Sheets, A3 ISO | 8 Sheets, A3 ISO |
ย
Boxย Dimensions |
![]() |
Free Postal Delivery |
ย
Get all Essential Drawings to get started on your dream home.
Essential Package Includes :
1. Floor Plans in 2D -ย Soft-copyย andย Hard-copy
2. Floor Plans with Internal Furniture, Doors and Windows -Soft copyย andย Hard copy
Advanced Package Includes :
1. Everything in Basic Pack -Soft copyย andย Hard copy
2. 2D Exterior Views of all 4 Sides -Soft copyย andย Hard copy
3. 3D Exterior Realistic Views with Material -Soft copyย andย Hard copy
ย

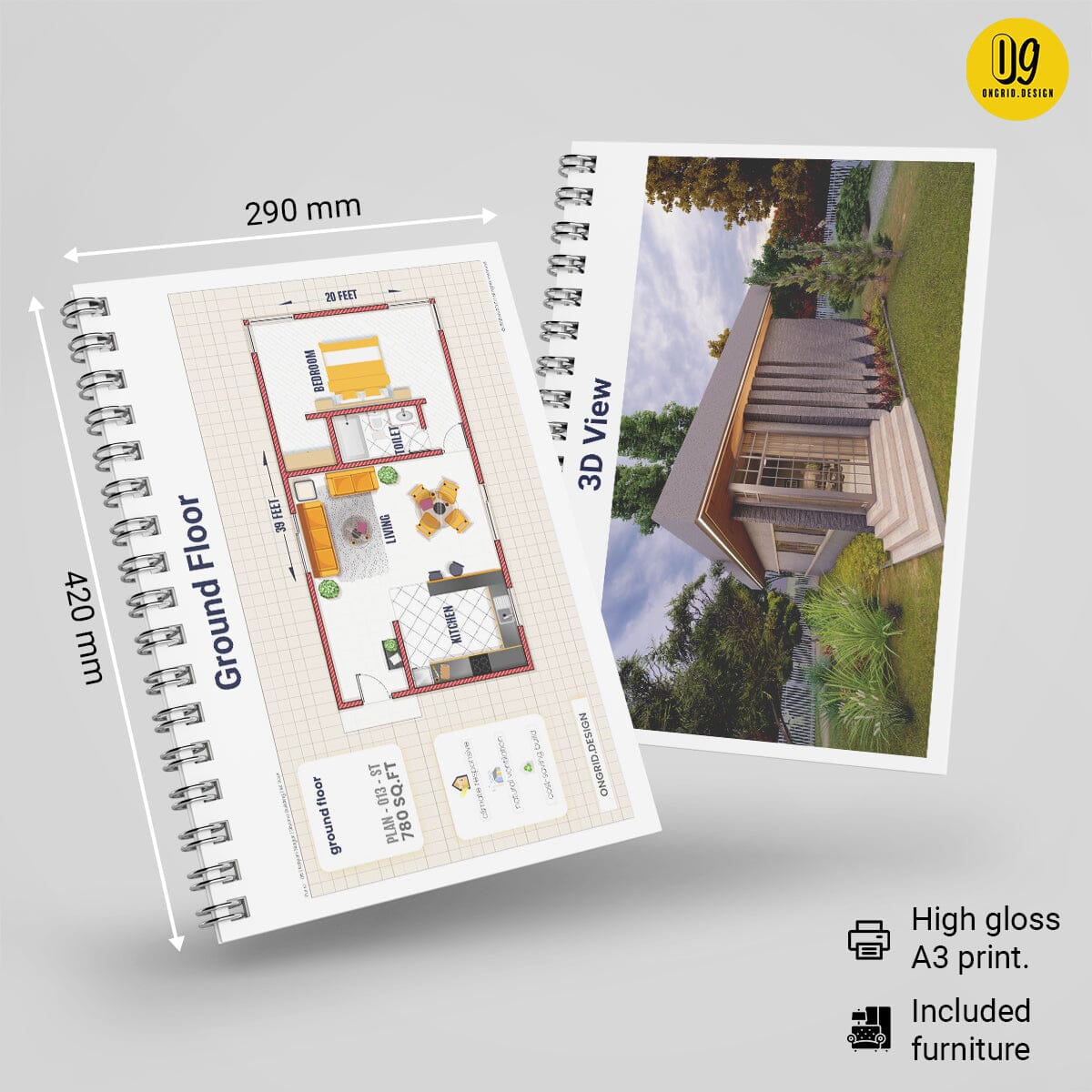

NOTE:ย All Packages are available for Instant download asย .PDFย and Physicalย A3 High Gloss Print
Are you looking for an easy and affordable way to built your future home ? Ongrid Design Home Packs are just the answer you need. From figuring out the optimum size of house to deciding budget. This Drawing set from certified Architects and Designers will keep you covered.
![]() |
Land Type | Flat Terrain | Semi-Wet Climate |
Plot Size |
45 feet X 26 feet ( minimum ) 49 feet X 30 feet ( recommended ) |
Design for |
Family of 2 or 3 |
Construction Cost |
Rs.900 - Rs.1100 per sqft.* |

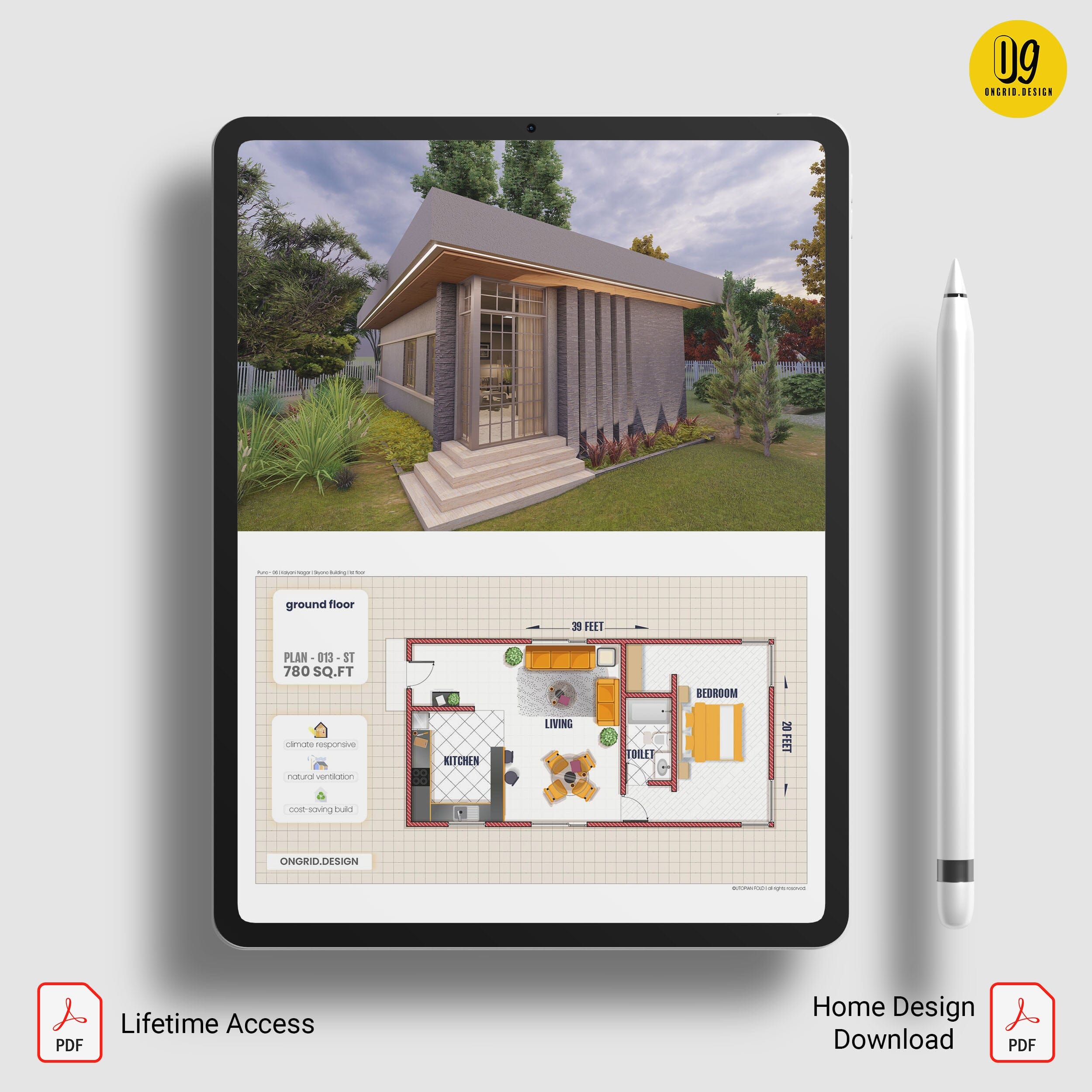

A simplex design style prefered in Indian family homes that want to build their home in a rural setting with a relaxing lifestyle. This home plan is a 780 sq.ft. in area with a single bedroom. The layout allows natural ventilation and ample daylight.
Design Attributes |
Brick and Concrete Construction |
Country |
Farm House |
Home & Ceiling Height |
First Slab Height | 10 ft. |
Lintel Height | 2 ft. 6 inch |
Framing Information |
Wall Framing | Brickwork |
Roof Framing | Concrete M20 grade |
