30x40 House Plan | 1 Floor South Facing Design

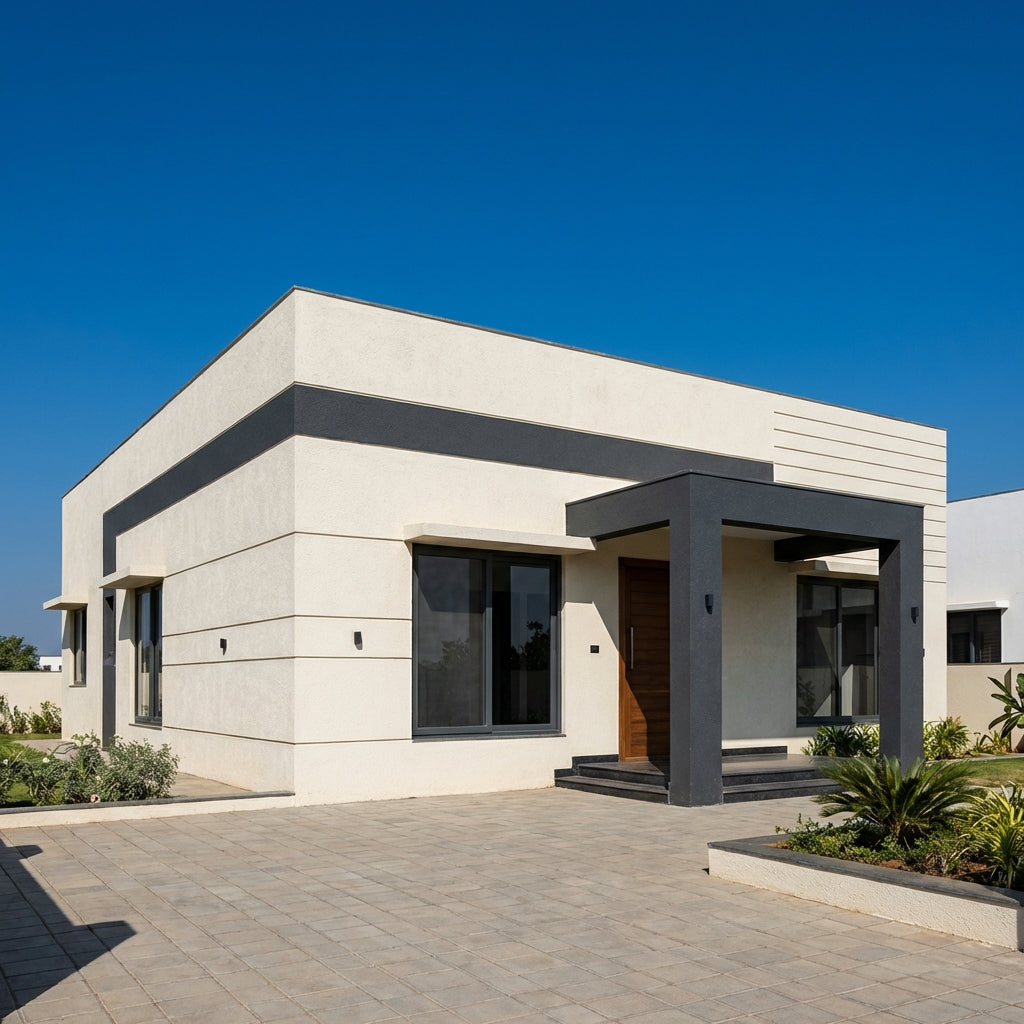

A completed Ongrid 30×40 south-facing ground-floor design — contemporary flat-roof elevation with SE-positioned entrance canopy
If you own a south-facing 30×40 plot, someone has almost certainly warned you about it. Vastu consultants, relatives, and property gossip treat south-facing sites as second-tier. The result? South-facing 30×40 plots in most Indian cities sell for 8–15% below equivalent east or north-facing sites in the same layout. That discount is your opportunity.
A well-designed 30x40 house plan 1 floor south facing, with its entrance shifted to the south-east, correct room zoning, and a deep front overhang, delivers the same family comfort and resale appeal as any "preferred" direction — at a lower land cost. This guide walks you through the floor plan layout, Vastu corrections, construction costs across three tiers, and how to get your own design commissioned through Ongrid's COA-certified architects.
Why South Facing Is Not the Problem You Think
The Vastu objection to south-facing homes is specifically about one configuration: a main door placed dead-centre on the south wall — the so-called "Yama dwara." That is the placement to avoid. It is not a rule against south-facing plots.
On a 30×40 plot, the south wall is your 30-ft frontage. Shifting the main door 6–8 ft east of centre places it firmly in the south-east zone — governed by Agni in Vastu, which is an auspicious location for entrances. This single correction resolves the primary objection. Every other room in the layout then follows standard, functional Vastu zoning without compromise.
There is also a practical benefit unique to south-facing ground-floor homes. Your north wall — the rear of the house — receives soft, consistent, indirect light all day. Rooms along the north side stay cooler in summer and evenly lit year-round. This makes the north zone ideal for a study, elderly parent bedroom, or children's room.
Read more about plot orientation and light planning in our home building guide.
Floor Plan Layout: 30×40 Ground Floor South Facing
Ground floor plan — 30×40 south facing. SE entrance, SW master bedroom, NE pooja room, SE kitchen. All rooms to scale.
With a 30-ft south frontage and 40-ft depth, standard setbacks carve approximately 4–5 ft off the front, 3 ft off each side, and 3 ft off the rear. This yields a usable footprint of roughly 22×33 ft (726 sq ft interior). Including the covered entrance porch and rear utility zone, total built-up area reaches approximately 900 sq ft.
Entrance Porch and Foyer — SE Zone
A 6×5 ft covered porch sits on the south-east quadrant of the south wall. It steps into a 6×7 ft foyer. Keeping the door here resolves the Vastu concern completely. The porch overhang also shades the entrance from the harsh afternoon sun of April to September.
Living and Dining — Central-East, 16×13 ft
The combined living and dining zone (208 sq ft) occupies the central-east portion of the plan. South-facing windows bring in bright afternoon light, filtered by the porch overhang. There is comfortable room for a 3-seater sofa arrangement and a 4-seat dining table without crowding.
Kitchen — SE Inner Zone, 10×9 ft
The 90 sq ft kitchen sits in the south-east inner zone — the Agni corner prescribed by Vastu for cooking spaces. An east-facing window provides cross-ventilation and morning light. A 3-ft service passage at the rear connects to the utility zone.
Pooja Room — NE Corner, 5×4 ft
The north-east Ishan corner is Vastu's ideal placement for worship. A 20 sq ft dedicated pooja room with a high-set north window creates a calm, naturally lit space that does not intrude on living or sleeping areas.
Master Bedroom — SW Corner, 13×12 ft
At 156 sq ft, the south-west master bedroom occupies Vastu's Nairutya zone — associated with stability, grounding, and restful sleep. An attached 5×7 ft bathroom and a west-facing window with a 2-ft external overhang complete the room. The overhang cuts afternoon glare without blocking cross-ventilation.
Bedroom 2 — NW Zone, 11×11 ft
The 121 sq ft north-west bedroom is the coolest room in summer. It functions equally well as a guest room, elderly parent bedroom, or children's room. A shared 5×7 ft bathroom serves this room from the north side.
Rear Utility — North, 8×5 ft
A 40 sq ft rear utility strip along the north wall handles the washing machine, drying space, and rear service access. Placing wet utility on the north keeps the activity away from the living core and benefits from cool ambient air.
Sun Path and Ventilation Strategy
Annual sun path at Bengaluru/Pune latitude — summer 70°+ altitude angle cuts off at the overhang; winter 50° angle allows 5–6 ft sun penetration into the living room
South-facing facades receive direct sun on the front from mid-morning to mid-afternoon. In summer this is intense; in winter it is welcome. Two design decisions manage both seasons.
Deep front overhang (3–4 ft): At the 70–75° summer sun angle above Bengaluru and Pune latitudes, a 3-ft overhang fully shades the south wall from April to September. In December and January, the lower 50–55° angle lets sun reach 5–6 ft inside the living room — free passive heating at no cost.
North-wall openings: Rear windows and the utility door on the north wall create a clear north–south ventilation path. Prevailing south-west monsoon winds push through the living room and exit north. In Deccan plateau cities, this keeps the home comfortable without air conditioning for 8–9 months of the year.
For passive cooling and sustainable design techniques, visit our sustainable home building blog.
Vastu Compliance: South Facing Done Right
Vastu grid compliance map — every major room aligns with its prescribed zone. The only "red" placement is the dead-centre south door — which this plan deliberately avoids.
Many families believe a south-facing plot cannot be made fully Vastu-compliant. The zone-by-zone reality for this 30×40 ground-floor plan:
| Zone | Vastu Requirement | This Plan |
|---|---|---|
| Main Door | SE or SW sub-zone of south wall | SE porch ✓ |
| Kitchen | SE (Agni) | SE inner zone ✓ |
| Master Bedroom | SW (Nairutya) | SW corner ✓ |
| Pooja Room | NE (Ishan) | NE corner ✓ |
| Living Room | North or East zone | Central-East ✓ |
| Bathrooms | NW or SE | NW + SE ✓ |
| Utility | NW or North | North rear ✓ |
Every major room aligns with its Vastu prescription. This plan requires no remedial yantras or structural compromises. The single decisive correction — placing the main door 6–8 ft east of the south wall's centre — is all it takes.
Explore more about planning your home with Vastu in our beginners guide.
Construction Cost: 30×40 Single Floor South Facing
Three-tier construction cost breakdown for 900 sq ft built-up area — materials, finishes, electrical, plumbing, and fittings
Built-up area for this design is approximately 900 sq ft, which includes the covered porch, all interior rooms, and the rear utility zone.
| Specification Tier | Rate (₹/sq ft) | Total Estimate |
|---|---|---|
| Tier 3 — Economy | ₹1,200–2,000 | ₹10.8L – ₹18L |
| Tier 2 — Standard | ₹1,500–2,500 | ₹13.5L – ₹22.5L |
| Tier 1 — Premium | ₹2,000–3,500 | ₹18L – ₹31.5L |
Tier 3 (Economy): AAC block walls, MS grille windows, standard ceramic or equivalent tiles, basic sanitary fittings. Works well for a rental-first investment strategy.
Tier 2 (Standard): Red brick construction with plastering, powder-coated aluminium windows, vitrified tile flooring, CP-brand bathroom fittings, 2-coat exterior texture paint.
Tier 1 (Premium): Cavity brick walls for added insulation, uPVC double-glazed windows, marble or Italian tile flooring, modular kitchen, premium sanitary ware, acrylic exterior finish.
The Land Saving Arithmetic: If your south-facing 30×40 plot cost you ₹6–10L less than a north-facing equivalent in the same layout, that saving covers the upgrade from Tier-2 to Tier-1 finishes. The better-specced home ends at the same all-in cost. This is the investment case that makes south-facing plots attractive for first-time builders.
Use the Ongrid home construction cost calculator to input your city and specification tier for a customised estimate.
Elevation Design Options
Three elevation directions for the 30×40 south-facing ground floor — contemporary flat-roof canopy, box modern with sun fins, and traditional sloped tile roof
The south facade is your public face. It receives afternoon sun, so the elevation must balance aesthetics with shade. Three approaches work well for this configuration.
Contemporary Flat Roof with Projected Canopy
A projecting concrete canopy 3–4 ft deep over the main entrance doubles as shade and an architectural statement. Clean horizontal lines, textured cladding panels in grey or warm beige, and recessed LED strip lighting produce a modern street elevation. This is the most popular choice in urban BDA and HMDA layouts.
Box Modern with Vertical Sun Fins
Vertical RCC or MS fins on the south facade interrupt direct sun while adding visual depth and shadow play. This works especially well on corner plots where the south elevation is prominent from two directions. Use alternating white and charcoal grey tones for maximum contrast.
Traditional Sloped Roof
For plots in Bengaluru, coastal Karnataka, or Kerala, a Mangalore terracotta tile sloped roof handles heavy monsoon rainfall, provides natural attic insulation, and carries strong regional identity. A carved wooden entrance door in the SE anchors the traditional look.
Browse 200+ modern house elevation designs or 50 simplex elevation ideas for style references.
Lifestyle Fit: Who Is This Home For?
South-facing living room at 3 PM — the 3-ft overhang cuts direct glare; diffuse light fills the 16×13 ft space evenly all afternoon
This single-floor 30×40 south-facing layout suits four distinct household types.
Retired couple or elderly parents: Single-floor living means zero stair risk. The 13×12 ft SW master bedroom is quiet, Vastu-stable, and well-proportioned. The NE pooja room is a daily anchor point. The rear utility zone keeps household noise away from resting areas.
Young family, first home: Two full bedrooms, a dedicated kitchen with morning light, and a covered outdoor porch for children's play. The flat RCC roof is future-proof — structural G+1 capacity can be built in from day one, allowing a second floor when the family grows.
Nuclear family with WFH needs: The 11×11 ft NW bedroom is the coolest room in the house. With north-facing, glare-free light, it functions as a dedicated home office with clear acoustic separation from the living zone.
Rental investment: A well-finished 2BHK on a south-facing 30×40 in a Tier-2 city commands ₹12,000–18,000/month rent. At Tier-2 construction cost and a land premium saving of ₹6–10L, the gross rental yield can comfortably exceed 6% — competitive with urban residential benchmarks.
Getting Your 30×40 South Facing Plan Designed
Ongrid's online architecture service — COA-certified architects, design delivered in 7–10 working days with full drawing sets
Ongrid offers three routes depending on your stage and budget.
Ready-to-customise plans: Start from a matched complete set home plan. Ideal if you want a plan in hand within 48 hours to share with a contractor or municipal office.
HomeBluePrints Advance Plus: Full working drawing set — structural, electrical, and plumbing — via HomeBluePrints Advance Plus. Designed for permit submissions and contractor tendering.
Custom Home Plans: Bespoke design from brief to final drawing with a dedicated Ongrid architect. See custom home plans for scope, inclusions, and timelines.
Not sure which route fits your stage? Book a 30-minute consultation with an Ongrid architect before committing to any service.
Frequently Asked Questions
Is a south facing 30×40 house plan Vastu-compliant?
Yes — with one key correction. Place the main entrance in the south-east sub-zone of the south wall, not dead-centre. This moves the door out of the Yama dwara position and into the Agni zone, which is auspicious for entrances. Every other room follows standard Vastu zoning: kitchen SE, master bedroom SW, pooja NE, living room east. The plan needs no remedial yantras or structural concessions.
What is the built-up area for a 30×40 single floor home?
On a 30×40 plot (1,200 sq ft), standard setbacks leave an interior footprint of approximately 720–800 sq ft. Adding the covered entrance porch, rear utility zone, and wall thicknesses brings total built-up area to roughly 850–950 sq ft. The exact figure depends on your local municipal bylaw setback requirements, which vary by city, zone classification, and road width.
How much does it cost to build a 30×40 south facing single floor home?
Construction cost ranges from ₹10.8L at economy spec (₹1,200/sq ft × 900 sq ft) to ₹31.5L at premium spec (₹3,500/sq ft × 900 sq ft). A standard Tier-2 build at ₹2,000/sq ft totals approximately ₹18L, excluding land, geotechnical extras, and interior furnishing. Use the Ongrid cost calculator for a city-specific breakdown.
Can I add a second floor to this ground-floor plan later?
Yes, provided the structural design is built for it from day one. An RCC frame designed for G+1 loads requires larger column sections, deeper beam sizes, and wider footings than a terminal single-storey structure. The additional structural cost at the ground-floor stage is typically ₹1.5L–2.5L. Specify this requirement clearly to your structural engineer or Ongrid architect before drawings are finalised.
What rooms should face south in a south-facing single-floor home?
The south side is best suited to semi-public spaces: the living room, dining area, and entrance porch. These rooms benefit from bright afternoon engagement and strong street connection. Bedrooms belong in the quieter SW (master) and NW (secondary) corners — further from the south facade, more private, and acoustically shielded from street activity.
What is the minimum front setback for a 30×40 south facing plot?
Most Indian municipal bylaws require 3–5 ft front setbacks for plots under 1,500 sq ft. Urban layouts under BBMP, CDMA, or DTCP jurisdictions commonly enforce 4–4.5 ft. Always verify against your specific layout approval documents before freezing the floor plan. A 4-ft front setback on a 40-ft depth leaves 33 ft of effective build depth after the rear setback — sufficient for generous room sizes.
Which elevation style works best for a south facing single floor home?
A contemporary flat-roof design with a 3–4 ft projecting canopy gives the best balance of aesthetics and sun control — the canopy shades the south facade in summer while allowing winter sun to enter the living room. In high-rainfall regions like coastal Karnataka or Kerala, a sloped Mangalore tile roof manages runoff better. On corner plots with high visual exposure, vertical sun fins add depth and identity. Browse simplex elevation styles for references.
