40x50 House Plan | 4 Floor East Facing Design

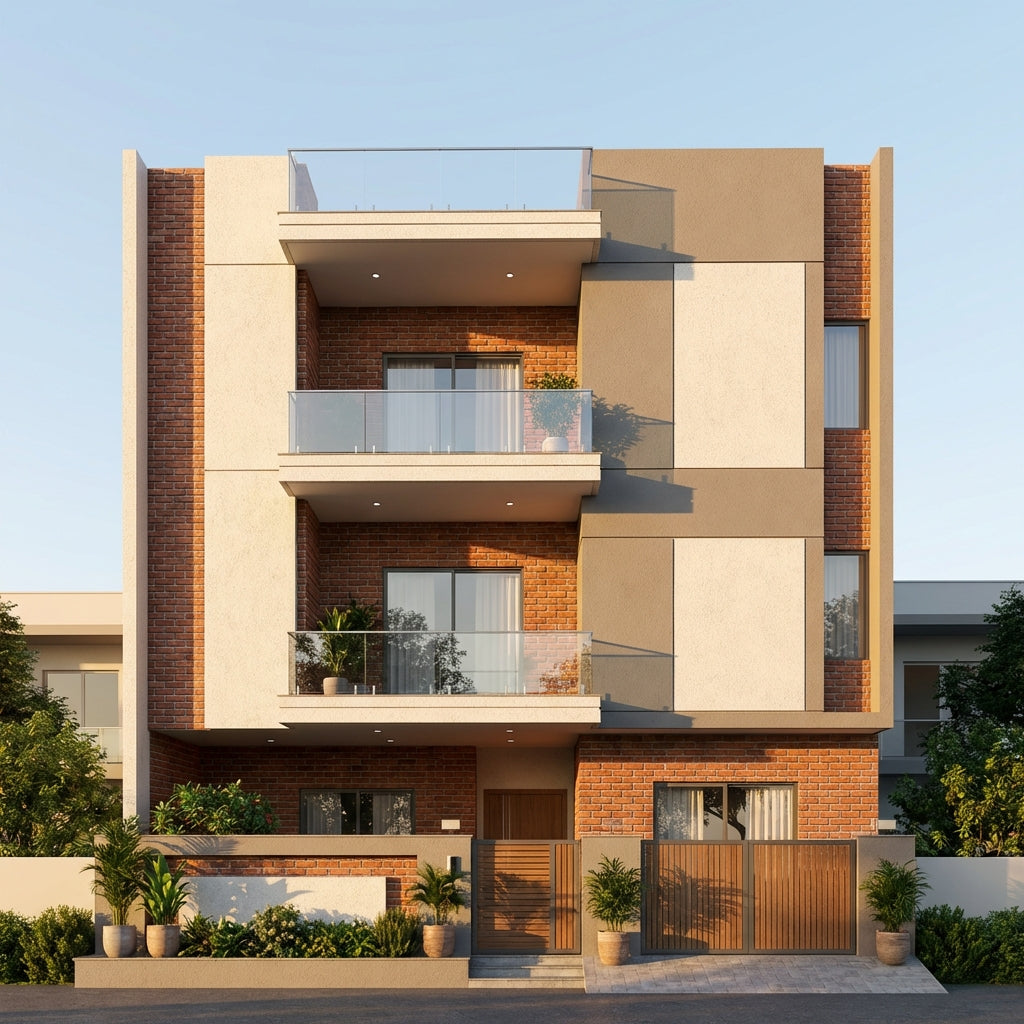

A contemporary G+3 elevation design for a 40x50 east facing plot — 40-foot wide east frontage, stacked balconies, sunrise-ready facade
If you own a 40x50 east facing plot and are planning a G+3 home, you are sitting on one of the most capable residential configurations in urban India. The 40x50 house plan 4 floor east facing format combines a generous 40-foot frontage with the Vastu-preferred east direction and four complete floors of living space. Ongrid's design team calls this the "East Vertical Family Compound" — a layout that naturally supports joint family living, with each floor functioning as a near-independent family unit while sharing a single structural core and, crucially, equal morning light on every floor.
This guide walks you through the floor-by-floor layout with real room dimensions, Vastu placements specific to east-facing G+3 homes, 3D elevation design options, and a tier-wise construction cost breakdown. Whether you are building for three generations or planning a mix of owner-occupation and rental income, this article gives you what you need to start your project with clarity.
Why Your 40x50 House Plan 4 Floor East Facing Works for Joint Families
The 40x50 plot gives you 2,000 sq ft of land. With a G+3 structure, you unlock approximately 5,400–5,800 sq ft of built-up area across four floors, after accounting for mandatory setbacks. That is enough for two to three nuclear families to live comfortably, with space remaining for covered parking, a small east garden, and a rooftop terrace.
The east facing orientation delivers an advantage that compounds across floors:
Every floor gets equal morning sun. On a north or south plot, upper floors often receive better light than lower ones. On an east-facing plot, the 40-foot wide facade is exposed equally from ground to roofline. Each family unit on each floor wakes up to the same morning light — there is no "dark floor."
The 40-foot east frontage supports a rich facade. Four balconies stacked vertically, each spanning 40 feet, create a welcoming street presence. This is why east-facing 40x50 plots often command a ₹8–15 lakh premium over south-facing equivalents in the same layout in cities like Bengaluru and Hyderabad.
East facing is Vastu-preferred for the main entrance. This means your entire building earns Vastu compliance from the front door outward, making the design holistically sound — not just locally Vastu-compliant for one room.
For joint families in Bengaluru, Hyderabad, Chennai, and Pune, the G+3 on a 40x50 east plot is among the most-requested configurations at Ongrid. Parents live on the ground floor with private garden access. Adult children occupy the first and second floors as independent units. The third floor becomes a guest suite, home office, or rental unit depending on the family's needs.
Morning Light and the East-Facing Sun Path
Sun path analysis for a 40x50 east facing plot — morning light enters all four floors simultaneously from 6:30 AM to 11:00 AM
East-facing homes in India receive direct sunlight from approximately 6:30 AM to 11:00 AM. On a 40x50 plot, this light hits the widest face of your home. If you place living rooms and master bedrooms facing east, every floor's primary spaces get morning warmth and natural brightness.
By afternoon, when the west sun becomes harsh, east-facing rooms are naturally shaded. This noticeably reduces cooling costs — particularly in south Indian cities where afternoon temperatures regularly exceed 34°C. Ongrid's design team places a buffer zone on the west side of each floor: staircases, toilets, and storage absorb the afternoon heat before it reaches the main rooms.
The 40-foot wide east face also allows for three balconies per floor — one each for the living room, master bedroom, and secondary bedroom — giving every family unit its own outdoor morning space without competition.
Floor-by-Floor Layout: Your 40x50 4-Floor East Facing Plan
The layouts below use realistic post-setback dimensions. On a 40x50 plot with typical urban setbacks (8 ft front, 5 ft rear, 2.5 ft on each side), the buildable footprint per floor is approximately 35×37 ft = 1,295 sq ft. Actual built-up area including stairwell and corridor is 1,350–1,450 sq ft per floor.
Ground Floor Plan (G)
Ground floor plan — two-car covered parking, east-facing garden entry, and a complete parents' suite with direct outdoor access
The ground floor is designed for parents or the eldest household members. The priority is ground-level convenience, garden access, and privacy from the upper floors.
| Space | Dimensions |
|---|---|
| Covered Parking (2 cars) | 18×18 ft |
| Garden / Sit-out | 12×10 ft |
| Foyer / Entry | 5×7 ft |
| Living + Dining | 14×16 ft |
| Kitchen | 9×11 ft |
| Bedroom (ground) | 11×13 ft |
| Attached Toilet / Bath | 5×8 ft |
| Common Toilet | 4×6 ft |
| Staircase + Passage | ~120 sq ft |
The main entrance door faces east — Vastu-compliant and standard in Ongrid's east-facing designs. A compact foyer steps into the living-dining area, which opens toward the east garden through a large window or sliding door. The ground kitchen sits in the southeast corner per Vastu. The bedroom with its attached bath occupies the southwest corner — the Vastu-ideal position for the head of household at this level.
A covered two-car parking bay runs along the north side, keeping noise and traffic away from the garden entry on the south frontage.
First Floor Plan (1st Floor)
First floor plan — complete independent family unit with master suite, three bedrooms, and a 12-foot east-facing balcony
The first floor is the primary floor for the homeowner's nuclear family. It is fully self-contained.
| Space | Dimensions |
|---|---|
| Living + Dining | 14×17 ft |
| East-Facing Balcony | 12×5 ft |
| Kitchen | 9×11 ft |
| Master Bedroom | 13×14 ft |
| Master Attached Bath | 5×9 ft |
| Bedroom 2 | 11×12 ft |
| Bedroom 3 | 10×11 ft |
| Common Bath | 5×8 ft |
| Staircase + Passage | ~120 sq ft |
The living room opens to a 12-foot east-facing balcony — the natural gathering spot for morning chai and early conversations. The 13×14 ft master bedroom sits in the southwest corner with a generous attached bathroom. Bedrooms 2 and 3 can serve as children's rooms, a guest room, or a dedicated home office. The southeast kitchen connects to a small utility balcony on the south side for a washing area, keeping the main east balcony uncluttered.
Second Floor Plan (2nd Floor)
Second floor plan — mirrored first floor layout with a home-office study, configured for the second family unit
The second floor mirrors the first floor in structure, with minor adjustments based on the occupants' profile. A common variant replaces the third bedroom with a dedicated study or home office.
| Space | Dimensions |
|---|---|
| Living + Dining | 14×17 ft |
| East-Facing Balcony | 12×5 ft |
| Kitchen | 9×10 ft |
| Master Bedroom | 13×14 ft |
| Master Attached Bath | 5×9 ft |
| Bedroom 2 | 11×12 ft |
| Study / Work Room | 9×10 ft |
| Common Bath | 5×8 ft |
| Staircase + Passage | ~120 sq ft |
An east-facing study with morning light is a highly practical workspace. In post-2020 Indian households, the dedicated work room is now a standard request from families planning an upper floor for younger adults.
Third Floor / Terrace Floor (G+3)
Third floor plan — guest suite, pooja room at northeast, and a generous east-facing terrace garden for private outdoor living
The third floor is the most flexible level. Configure it as a full rental unit, a guest suite with terrace access, or a mix of spiritual space and recreation.
| Space | Dimensions |
|---|---|
| Guest Bedroom / Studio | 13×14 ft |
| Attached Bath | 5×8 ft |
| Pooja Room | 6×8 ft |
| Open Terrace (east-facing) | 20×12 ft |
| Terrace Garden / Utility | 15×10 ft |
| Overhead Water Tank (SW) | — |
The northeast corner of the third floor holds the pooja room — the most Vastu-auspicious position for a place of worship in the home. The east-facing terrace functions as a private morning garden, particularly valuable in dense urban areas where ground-level outdoor space is shared or minimal.
If you rent this floor as an independent unit, the studio layout with attached bath and a small kitchenette works strongly. In metros like Bengaluru and Hyderabad, a well-finished third-floor studio on an east-facing plot typically generates ₹12,000–₹22,000 per month in rental income.
Vastu Guidelines for Your 40x50 East Facing G+3 Home
Vastu zone map for a 40x50 east facing G+3 plot — placement of entrance, kitchen, master bedroom, and pooja room by direction
East-facing plots are inherently Vastu-favorable. Here are the specific guidelines Ongrid's architects apply across all four floors of this configuration:
Main Entrance: East or northeast side. Morning sun energizes the entry throughout the year. This is the defining advantage of east-facing plots — the front door always faces the correct Vastu direction without any compromise.
Kitchen: Southeast quadrant (Agni direction) on every floor. In a multi-floor home, the kitchen stacks vertically — all four kitchens align on the southeast corner. This maintains structural column alignment and Vastu compliance simultaneously.
Master Bedroom: Southwest corner on every floor. The southwest zone governs stability. Placing the master bedroom here on all floors is both structurally efficient (columns align from foundation to terrace) and Vastu-sound.
Pooja Room: Northeast corner, preferably on one shared floor (ground or third). Multiple pooja rooms in a joint family home dilute the Vastu energy of the space. One well-designed northeast pooja room serves the entire building better.
Staircase: South or southwest interior zone. Keep the north and east zones light and open — these are the zones that should receive maximum air and energy.
Overhead Water Tank: Southwest side of the terrace. Underground sump in the northeast. These placements are standard in Ongrid's G+3 east-facing projects.
Balconies: East and north only. South and west balconies should be kept minimal or enclosed to reduce afternoon heat gain and maintain Vastu balance.
For a full Vastu review specific to your 40x50 east facing plot, Ongrid's architecture services team includes direction-specific Vastu analysis in every design package.
Construction Cost for a 40x50 4-Floor East Facing Home
Construction cost breakdown for a G+3 on a 40x50 east facing plot — three quality tiers based on ~5,400 sq ft built-up area
Your 40x50 house plan 4 floor east facing project will generate approximately 5,400–5,800 sq ft of built-up area across four floors. Here is a realistic tier-wise cost estimate:
| Tier | Quality Level | Cost per sq ft | Total Estimate |
|---|---|---|---|
| Tier 1 — Premium | RCC frame, premium finishes, branded fittings | ₹2,000–₹3,500 | ₹1.08–₹2.03 Cr |
| Tier 2 — Standard | RCC frame, good-quality finishes, standard fittings | ₹1,500–₹2,500 | ₹81 L–₹1.45 Cr |
| Tier 3 — Economy | Minimal RCC, basic finishes | ₹1,200–₹2,000 | ₹65 L–₹1.16 Cr |
Based on 5,400 sq ft built-up area. Excludes land cost, municipal approvals, and interior design.
Key cost factors specific to a G+3 home:
- Foundation: A 4-floor RCC frame requires a deeper pile or raft foundation. Budget ₹8–₹15 lakh above what a 2-floor home foundation costs, depending on soil conditions.
- Lift provision: Many urban families include a lift shaft during G+3 construction for future installation. The shaft costs ₹3–₹5 lakh; the lift unit itself, ₹4–₹8 lakh.
- Waterproofing: Each floor slab and the terrace need professional waterproofing. Budget ₹1.5–₹2.5 lakh per slab for quality treatment.
- Municipal approvals: BBMP (Bengaluru), GHMC (Hyderabad), and CMDA (Chennai) all require structural sanction drawings for G+3 construction. Plan ₹2–₹5 lakh for drawings, approval fees, and liaison charges.
Use Ongrid's home construction cost calculator to get a city-specific estimate for your plot before finalizing your budget.
3D Elevation Design for a 40x50 East Facing 4-Floor Home
Facade detail — stepped east-facing balconies, exposed brick and plaster panel mix, recessed ground floor entry with a vertical planter element
The 40-foot east-facing frontage is the best canvas for architectural expression on this plot. Because 40 feet is significantly wider than a typical 30-foot plot, you have room for a genuinely layered facade — not just a flat wall with windows.
Stepped balconies with alternating depth work particularly well here. A 5-foot balcony on the first floor, stepping to 4 feet on the second and 3 feet on the third creates visual movement up the facade and ensures upper balconies do not cast excessive shade on lower ones.
Textured facade panels bring depth to the 40-foot wide face. A combination of exposed brick finish, textured plaster, and cladding panels in light tones on the east face reduces heat absorption and keeps the facade looking fresh for years. Avoid dark stone cladding on the east face — it absorbs morning heat unnecessarily.
A recessed main entrance — set 2–3 feet back from the facade line — creates a transitional zone between street and home. It reads as architecturally considered and also provides a practical weather shelter at the entry.
Vertical green elements on the south edge of the east facade — a narrow planter column growing a climbing plant — soften the facade's mass and reduce the visual weight of the party wall, especially if the southern neighbour's structure is close.
Browse 200+ modern house elevation designs and 50 stunning three-storey home designs for visual references before writing your design brief.
Who Should Build a 40x50 G+3 East Facing Home?
Three generations, four floors — the east vertical family compound at its most liveable
A G+3 on a 40x50 east facing plot is a significant construction commitment. It suits you best if:
- You have a joint family — parents plus two or more adult children — and want everyone under one roof with independent floor layouts and separate entrances.
- You want rental income — a standalone top-floor unit in a G+3 generates consistent rental yield in most metros while the family occupies the lower floors.
- You are building for the long term — a well-constructed 4-floor RCC home on an east-facing plot appreciates reliably and carries strong resale value due to the combination of Vastu compliance, floor area, and frontage.
- You have the budget for proper structural engineering — G+3 is not a structure to build informally. Your design must come from a COA-registered architect with a full structural drawing set.
If you are deciding between 3 floors and 4 floors, Ongrid's home building guide breaks down what each additional floor adds in cost, utility, and long-term value.
For complete drawing packages, Ongrid offers complete set home plans, customised design drawing sets, and a HomeBlueprints Advance Plus service for full architectural coordination. You can also book a consultation with an architect to discuss your specific requirements before committing to a package.
FAQs: 40x50 House Plan 4 Floor East Facing
What is the total built-up area for a 40x50 4-floor east facing home?
On a 40x50 plot (2,000 sq ft land area), after typical urban setbacks — 8 ft front, 5 ft rear, 2.5 ft on each side — the buildable footprint per floor is approximately 1,295–1,350 sq ft. Across four floors (G+3), total built-up area ranges from 5,200 to 5,800 sq ft. Your city's FAR rules and specific BBMP, GHMC, or CMDA regulations will determine the exact permitted built-up area.
How many bedrooms can I fit in a 40x50 4-floor east facing plan?
A well-designed 40x50 G+3 east facing home typically accommodates 7–9 bedrooms across four floors. A common split is: 1 bedroom on the ground floor (parents' suite), 3 bedrooms on the first floor, 3 on the second, and 1–2 on the third. Individual bedroom sizes range from 10×11 ft for secondary rooms to 13×14 ft for master bedrooms, depending on how many rooms are packed into each floor.
Is east facing the best direction for a G+3 home in India?
East facing is one of the two most Vastu-preferred directions in India, along with north. For a multi-floor home specifically, east facing is advantageous because the wide east facade delivers morning light equally to every floor at the same time. On north or south-facing plots, upper floors sometimes receive better direct light than lower ones due to the sun's angle. East-facing G+3 homes avoid this imbalance entirely, making every floor equally desirable for occupants.
What is the construction cost for a 40x50 G+3 east facing home?
Construction cost varies by city and quality tier. For Tier 1 premium construction (branded fittings, premium finishes, quality RCC frame), plan ₹1.08–₹2.03 crore. For Tier 2 standard quality, budget ₹81 lakh–₹1.45 crore. For Tier 3 economy construction, ₹65 lakh–₹1.16 crore. These figures cover approximately 5,400 sq ft of built-up area and exclude land cost, municipal approvals, and interior design. G+3 homes also carry additional costs for foundation depth, waterproofing per slab, and lift provision if applicable.
Do I need a structural engineer for a 40x50 4-floor home?
Yes, without exception. A structural engineer is legally mandatory for a G+3 RCC home and is required by BBMP, GHMC, CMDA, and equivalent municipal bodies as part of the building plan sanction process. The structural design covers column sizing, beam layout, slab thickness, foundation type (typically pile or raft for 4 floors), and reinforcement schedules. Never proceed with a G+3 without a certified structural drawing set — it is both a legal requirement and a direct safety necessity for your family.
Can I include a lift in my 40x50 G+3 east facing plan?
Yes, and it is increasingly standard in new G+3 construction. A 2-person residential lift fits within a 4.5×5 ft shaft. If you plan to install the lift later, include the shaft during construction to avoid breaking finished walls and slabs. The shaft typically takes space from the staircase landing area on each floor. Budget ₹3–₹5 lakh for the shaft during construction and ₹4–₹8 lakh for the lift unit when you install it.
What are the Vastu rules for a 40x50 east facing 4-floor home?
The key placements for an east-facing G+3 are: main entrance on the east or northeast side, kitchen in the southeast corner of each floor, master bedroom in the southwest corner, pooja room in the northeast (one shared room, ideally on the ground or top floor), staircase in the south or southwest interior zone, and overhead water tank on the southwest side of the terrace. Avoid placing bathrooms in the northeast quadrant or placing a kitchen in the northwest. These placements apply on every floor, not just the ground level.
