60x60 House Plan | 3 Floor West Facing Design
A 60x60 house plan with three floors and a west facing orientation is one of the most capable residential configurations you can build in India. On a 3600 sq ft plot, this G+2 layout delivers approximately 5,800–6,200 sq ft of total built-up area — enough for a complete joint family home, with room to breathe on every level.
This guide covers everything: how each floor is best laid out, what the west facing direction means for your design, Vastu placements that work, realistic 2026 construction costs, and how Ongrid's COA-certified architects can get your drawings ready without delays.

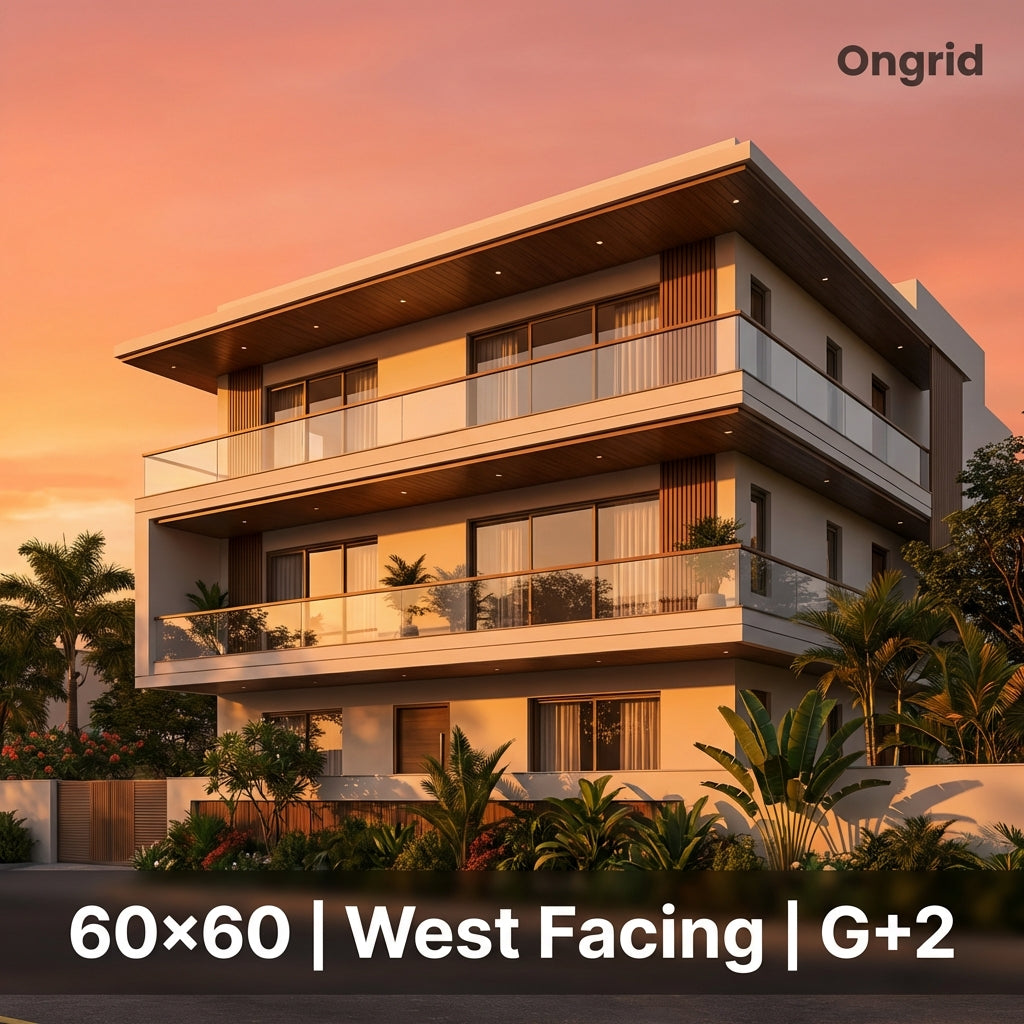

A contemporary G+2 elevation on a 60x60 west facing plot — designed for multi-generational family living
The Three-Generation Case for This Design
Three floors on a 60x60 plot is not just a height decision — it is a family decision.
Most families who pursue this configuration share a common story. Parents own the plot. A son or daughter has returned from a metro city. Grandchildren need space to grow. A 3-floor layout solves this cleanly. Each floor serves one generation while the home stays connected as a single structure.
Think of it this way:
- Ground floor — the grandparents' domain: easy street access, no daily stair climbing, garden view
- First floor — the core nuclear family unit: master bedroom, children's rooms, family lounge
- Second floor — grown children's quarters, a work-from-home suite, or a rental unit that funds EMIs
This "one address, three lives" structure is what makes the 60x60 G+2 west facing plan so enduring. The west facing facade — wide, prominent, catching golden afternoon light — becomes the family's public face for the next generation.
What 3600 Sq Ft Really Means: Plot vs Built-Up Area
Your plot is 3600 sq ft. Your home is not.
On a 60×60 plot, mandatory setbacks apply. Typically: 10 ft in front, 5 ft on each side, 3–5 ft at the rear. After applying these and accounting for ground coverage ratios (usually 60–70% in Indian municipalities), your actual built footprint per floor is around 1,800–2,100 sq ft.
Across three floors, that gives you 5,400–6,300 sq ft of total built-up area.
That is significantly more than a 2-floor design delivers. The third floor is structurally the most efficient space you can add: your plot cost, foundation, and ground floor are already absorbed. The marginal cost per sq ft on the second floor is the lowest of any additional space on this property.
60x60 House Plan: Floor-by-Floor Breakdown
Ground Floor — Grandparents, Guests & Shared Spaces
The ground floor handles all shared family functions and accommodates elderly members without requiring stairs.
Recommended layout (approx. 2,000 sq ft built-up):
| Room | Dimensions |
|---|---|
| Drawing/Living Room | 18 × 16 ft |
| Formal Dining | 14 × 12 ft |
| Kitchen | 14 × 12 ft |
| Utility/Wash Area | 8 × 10 ft |
| Grandparents' Bedroom | 14 × 14 ft with attached bath |
| Pooja Room | 8 × 8 ft |
| Guest Bathroom | 6 × 8 ft |
| Car Parking/Garage | 20 × 12 ft |
| Entrance Lobby | 10 × 8 ft |
The living and dining areas face north or northeast — keeping them bright without afternoon west sun exposure. The grandparents' bedroom sits in the southwest, which is both Vastu-correct and the structurally quietest corner of the floor.
Ground floor layout — designed for shared family use with a dedicated grandparents' suite in the SW corner
First Floor — The Core Family Unit
The first floor is where the primary nuclear family lives. It needs privacy, cross-ventilation, and enough bedrooms for a couple and two children.
Recommended layout (approx. 2,000 sq ft built-up):
| Room | Dimensions |
|---|---|
| Master Bedroom (SW) | 16 × 14 ft with attached bath + walk-in wardrobe |
| Bedroom 2 | 14 × 12 ft with attached bath |
| Bedroom 3 (children) | 12 × 12 ft |
| Family Lounge/TV Room | 14 × 16 ft |
| West-Facing Balcony | 14 × 6 ft |
| Common Bathroom | 6 × 8 ft |
| Study/Reading Nook | 10 × 10 ft |
The west-facing balcony on the first floor is a signature feature. In the evenings, this becomes the family's primary gathering spot — capturing the sunset while being shielded from direct afternoon glare by a deep overhang or pergola element above.
First floor — private family quarters with a sunset balcony as the centrepiece
Second Floor — Flexibility, Privacy, or Rental Income
The second floor gives you options no other configuration can match on a 60x60 plot.
Option A — Joint family extension: Two bedrooms (14×13 ft each) for grown children or visiting relatives, a shared bathroom, and a large open terrace of 600+ sq ft.
Option B — Rental unit: A self-contained 2BHK with a separate staircase access, kitchenette, living area, and two bedrooms. In most Tier-2 cities, this generates ₹18,000–₹25,000/month — enough to service a significant portion of your home loan.
Option C — Work-from-home suite: A private study (14×12 ft), a video-call-ready office (12×12 ft), a bedroom, and direct terrace access.
Most Ongrid clients on this plot size choose Option A initially and leave plumbing and electrical roughed in for Option B — a practical way to keep current costs down while preserving future flexibility.
Second floor — shown in joint family mode with two private suites and a 600+ sq ft terrace
West Facing Design: Managing Afternoon Sun the Smart Way
West facing plots receive direct afternoon sun — roughly 1 PM to sunset. On a 3-floor building, this creates a tall west-facing wall that absorbs significant heat. The solution is not to fight it, but to design with it.
Here is how skilled architects handle west facing on a G+2:
1. Deep chajjas and overhangs On each floor, a 2.5–3 ft horizontal projection above west-facing windows blocks high-angle afternoon sun while allowing diffused light through. This single element reduces west-wall heat gain by 40–50%.
2. Strategic room positioning Rooms you use most in the morning go on the west side. They are shaded in the AM when you occupy them, and warm by evening when you have moved to other areas.
3. Textured or double-skin facade A textured stone or brick cladding on the west face acts as a thermal buffer. The outer layer absorbs heat; the interior wall stays cooler.
4. Boundary planting A row of medium-height trees or a trellis with climbing plants along the west boundary cuts solar gain by 30–40% without blocking ventilation.
5. Balconies as solar buffers The west-facing balconies on floors one and two prevent direct sun from hitting interior glazing behind them — functioning as shaded outdoor rooms between 2 PM and sunset.
Sun path analysis for west facing orientation — chajjas and balconies create shade during peak afternoon heat
For more on passive cooling in Indian homes, visit the Ongrid sustainable design blog.
Vastu Shastra for a West Facing 60x60 Home
A west facing plot is Vastu-acceptable — particularly for people in business, trade, or those with a strong Mercury placement. The key is correct room positioning within the plot.
Here are Vastu guidelines specific to a west facing 60x60 G+2:
| Zone | Recommended Placement | Reason |
|---|---|---|
| Main Entrance | West (centre) or NW | Vastu-correct entry for west plots |
| Pooja Room | NE corner (any floor) | Maximum positive energy |
| Kitchen | SE corner | Fire element faces correct direction |
| Master Bedroom | SW corner | Stability and grounding for the head of family |
| Children's Bedroom | NW or West | Growth-oriented direction |
| Grandparents' Bedroom | SW (ground floor) | Stability for elders |
| Living Room | North or NE | Welcoming and naturally bright |
| Parking/Garage | NW | Movement-oriented zone |
| Staircase | South or SW | Avoids disrupting positive energy zones |
| Overhead Water Tank | SW (terrace) | Weight in the correct direction |
| Toilets | NW or SE only | Strictly avoid NE and SW |
Keep the north side of the plot open or with lower elements. This allows natural light and positive energy to enter from the north even on a west facing plot — a key Vastu principle that also improves ventilation.
Vastu zone layout for a 60x60 west facing G+2 — colour-coded by recommended room use
Read more in the Ongrid beginners' guide to home planning.
Construction Cost for a 60x60 3-Floor Home
Your built-up area across three floors will be approximately 5,800–6,200 sq ft after setbacks, wall thickness, and stairwell area are accounted for.
Here are realistic 2026 cost ranges based on finish level:
Tier-1 Finish — Premium (Marble, branded fittings, modular kitchen)
₹2,000–₹3,500 per sq ft
| Component | Approx. Cost |
|---|---|
| Structure (RCC, brickwork) | ₹55–70 lakh |
| Finishes (flooring, paint, false ceiling) | ₹30–45 lakh |
| Electrical & Plumbing | ₹18–25 lakh |
| Kitchen & Bathrooms | ₹20–30 lakh |
| Total Estimate | ₹1.2–2.0 Cr |
Tier-2 Finish — Mid-Range (Vitrified tiles, semi-modular kitchen)
₹1,500–₹2,500 per sq ft
| Component | Approx. Cost |
|---|---|
| Structure | ₹45–55 lakh |
| Finishes | ₹20–30 lakh |
| Electrical & Plumbing | ₹14–20 lakh |
| Kitchen & Bathrooms | ₹12–18 lakh |
| Total Estimate | ₹85 lakh–₹1.4 Cr |
Tier-3 Finish — Basic (Ceramic tiles, standard fittings)
₹1,200–₹2,000 per sq ft
| Component | Approx. Cost |
|---|---|
| Structure | ₹38–48 lakh |
| Finishes | ₹14–20 lakh |
| Electrical & Plumbing | ₹10–15 lakh |
| Kitchen & Bathrooms | ₹8–12 lakh |
| Total Estimate | ₹70 lakh–₹1.1 Cr |
These figures cover structure, finishes, electrical, plumbing, and standard kitchen and bathroom fittings. External development, landscaping, and interiors are separate. Use the Ongrid home construction cost calculator to get a city-specific estimate for your project.
Cost breakdown by component for a 60x60 G+2 — across three finish tiers (2026 estimates)
3D Elevation and Design Highlights
The west facing facade of a 3-floor home is your most prominent canvas. It is 60 ft wide and 35+ ft tall — the first thing visitors see. Getting the elevation right matters.
Three design directions that work well for this configuration:
Contemporary flat-roof Clean horizontal lines, large windows on every floor, a recessed top-floor parapet, and light-coloured cladding. The horizontal emphasis plays up the full width of the 60 ft plot and reads as modern without being cold.
Neo-classical with pilasters Columns framing the entrance, arched windows on the ground floor, ornate balcony railings. This aesthetic is particularly valued in cities like Indore, Nagpur, and Hyderabad and reads as both grand and traditional.
Contemporary with textured stone A split-face stone or exposed brick panel on the west face doubles as both a design feature and a thermal buffer. Combined with clean aluminium windows and a flat-top parapet, this is the current go-to for clients who want character without visual clutter.
Explore 50 three-storey home designs and 200 modern house elevation designs on the Ongrid platform.
Design highlight: deep-set west balconies, horizontal banding, and a textured stone facade — the defining elements of this G+2
Multi-Generational Living: The Real Financial Logic
In Indian cities, land is finite and construction costs rise every year. The joint family home on a shared plot is not nostalgia — it is financial strategy.
A 60x60 G+2 shared by two families saves the younger family from buying a second plot. In most Tier-2 cities, a 60x60 plot now costs ₹60 lakh–₹1.5 Cr. Even if the second family contributes ₹25–30 lakh toward their floor's construction, both parties come out significantly ahead compared to separate plots and separate homes.
The second floor rental option adds another layer: at ₹18,000–₹25,000/month in rental income, you recover ₹2–3 lakh annually — enough to service a meaningful portion of a construction loan.
More than finances: children grow up with grandparents. Elderly parents have daily support. This is not just architecture. It is a social compact built in concrete and steel, with a west-facing facade that becomes a family landmark for decades.
Ongrid has designed hundreds of joint family and custom home plans on this plot size. The team understands the shared infrastructure decisions — single kitchen vs. dual kitchens, shared vs. separate entrance staircases, legal questions around single title vs. family settlement deeds.
Three generations, one address — the 60x60 G+2 built for the way Indian families actually live
How Ongrid Helps You Get This Built
Getting from a plot to a built home requires more than floor plans. You need approved drawings, a structural design, elevation drawings, plumbing and electrical layouts — and a team that understands Indian construction and authority submission.
Ongrid offers:
- Home Design Lite — Starter package with floor plans and basic elevation
- HomeBluePrints Advance Plus — Full construction drawing set: structural, MEP, and interior layouts
- Architecture Services — End-to-end design with COA-certified lead architects
- Custom Home Plans — Fully tailored to your plot, requirements, and budget
- Book a Consultation — 45-minute session with a senior architect to discuss your specific plot
All plans are COA-certified, authority-submission ready, and designed for actual Indian construction workflows. See the Ongrid pricing page for full package details.
Frequently Asked Questions
Is a 60x60 plot large enough for a complete joint family G+2 home?
Yes, comfortably. A 60x60 plot gives you 3600 sq ft of land. Across three floors with standard setbacks, you get approximately 5,800–6,200 sq ft of total built-up area. That is enough for 5–6 bedrooms, multiple living areas, dedicated parking, and a terrace — more than sufficient for two families living under one roof with genuine privacy for each.
What are the setback requirements for a 60x60 G+2 building?
Setbacks vary by city and local development authority. A typical requirement is: 10 ft front setback, 5 ft on each side, and 3–5 ft at the rear. After applying these, your actual ground floor coverage is typically 1,800–2,200 sq ft. Your architect will confirm exact norms for your municipality before drawing up the plan.
How much does it cost to build a 60x60 3-floor house in 2026?
At a mid-range Tier-2 finish, expect ₹85 lakh to ₹1.4 Cr for full construction. At a premium Tier-1 finish, budget ₹1.2–2.0 Cr. Basic Tier-3 construction starts from ₹70 lakh. These figures include structure, finishes, electrical, plumbing, and standard kitchen and bathroom fittings. Use the Ongrid cost calculator for a city-specific number.
Is a west facing plot Vastu-compliant for a 3-floor home?
Yes. West facing is Vastu-acceptable, particularly for people in business, trade, or with Mercury in a strong horoscope position. Correct room placement is the key: main entrance at centre-west or northwest, kitchen in the southeast, master bedroom in the southwest, and pooja room in the northeast. Ongrid's designs incorporate standard Vastu guidelines as a baseline.
Can I add a self-contained rental unit on the second floor of this design?
Absolutely. The second floor of a 60x60 G+2 is the most popular configuration for a rental unit in India. With a separate staircase access and independent metered electrical and plumbing connections, you can create a self-contained 2BHK. In most Tier-2 cities, this generates ₹15,000–₹25,000 per month. Plan the infrastructure as a separate connection during construction — retrofitting it later costs significantly more.
How long does it take Ongrid to prepare a complete drawing set for this plan?
With Ongrid, a full drawing set for a G+2 home on a 60x60 plot takes 3–6 weeks depending on the service package. This covers floor plans, elevations, sections, structural drawings, and MEP layouts. The HomeBluePrints Advance Plus service delivers everything needed for authority submission and site execution.
What elevation style works best for a west facing 60x60 home?
Contemporary flat-roof designs with horizontal banding are the most popular choice. They emphasise the full 60 ft width of the plot and handle the west sun well with clean overhangs. Neo-classical and traditional styles also work well in cities like Nagpur and Indore where that aesthetic is valued. Browse 200 modern house elevation designs for ideas before your first design call.
