60x60 House Plan | 4 Floor West Facing Design
A west-facing plot has one reputation problem: afternoon heat. But the real story is more interesting. When you plan a 60x60 house plan across four floors, the west orientation becomes a climate design challenge — and a dramatic architectural opportunity.
This G+3 (Ground + 3 upper floors) layout solves that challenge with precision. Afternoon sun is managed through shading devices, strategic room placement, and cross-ventilation corridors. Meanwhile, every upper floor celebrates the west view with balconies, picture windows, and sunset-oriented living spaces.
The result is a 3,600 sq ft plot supporting approximately 10,800 sq ft of built-up area across four floors. That is enough for a large multi-generational family, an owner-plus-rental combination, or a home-and-business setup.

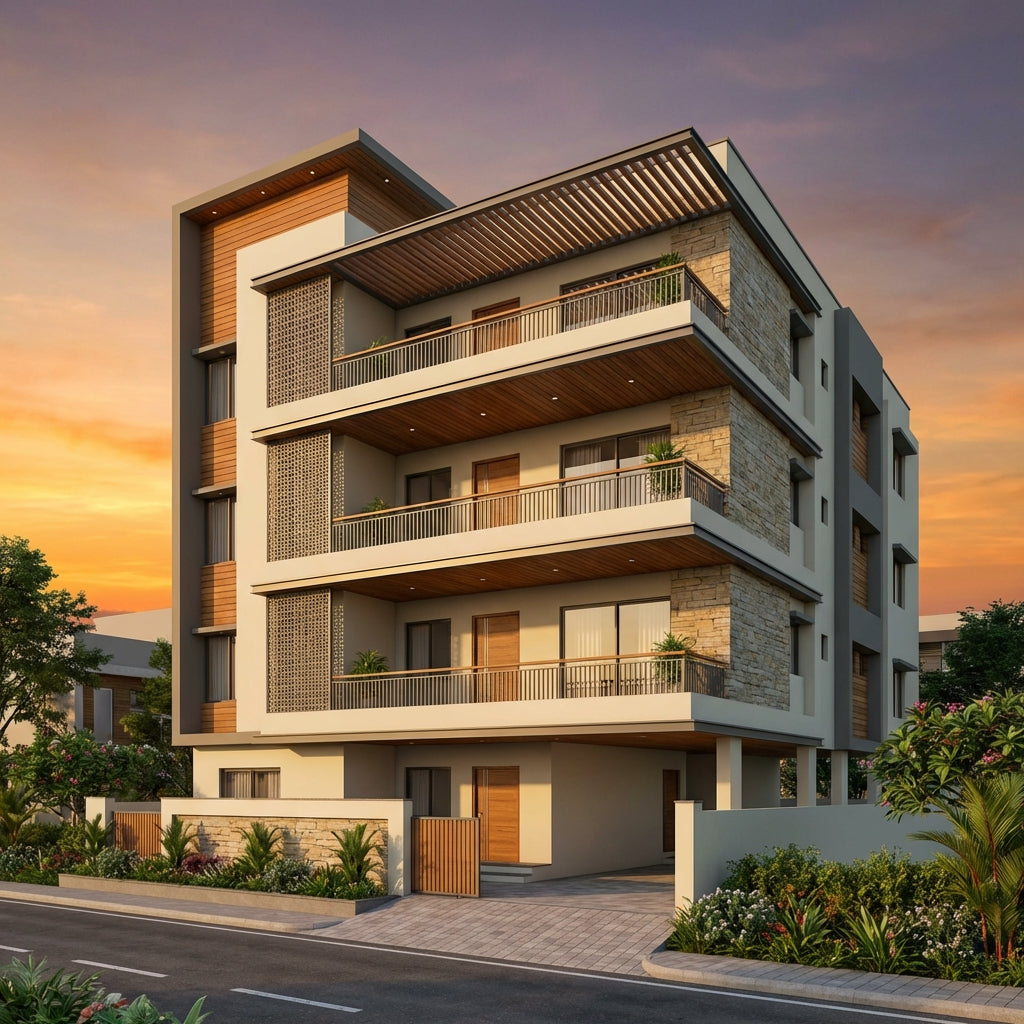

A four-floor west-facing home designed to make the sunset your daily ritual
Why West-Facing 60x60 House Plans Are a Climate Opportunity
Most homeowners approach west-facing plots defensively — trying to block the afternoon sun. A better approach is to design with the sun's movement.
The sun's east-to-west path and how it interacts with your G+3 elevation across seasons
On a west-facing plot, the morning sun enters from the rear (east side). Bedrooms and study rooms placed on the east side receive calm, cool morning light without glare. The front facade faces west and receives direct afternoon sun from roughly 12 PM until sunset.
For a 4-floor home, this creates useful vertical differentiation. The ground floor stays shaded by the boundary wall and neighbours. Upper floors get increasing exposure — but that exposure, managed correctly, becomes the home's greatest asset: panoramic sunset views, golden-hour light filtered through deep balconies, and a west elevation that commands the street.
The design strategies used here include:
- Deep west-facing balconies (6 ft projection) that shade the floor below while framing the view above
- Horizontal chajjas over every west-facing window on all floors
- Thermally massed west wall — 230mm brick with external plaster reduces peak heat transfer
- Heat-tolerant rooms (kitchen, toilets, garage) placed on south and southeast, not west
- East-to-west cross ventilation that draws cooler morning air through the home
This is not passive solar design by accident. It is a deliberate climate strategy for Indian conditions — and it works.
Understanding Your 60x60 House Plan: What Four Floors Actually Gives You
Before walking through each floor, it helps to understand the numbers.
Your plot is 3,600 sq ft. After standard setbacks — typically 3 m front, 2 m rear, 1.5 m each side — your buildable footprint is approximately 48×48 ft, or roughly 2,304 sq ft. With staircases and common areas, each floor provides about 2,100–2,200 sq ft of usable living space.
Across four floors, that is approximately 8,400–8,800 sq ft of usable area, with total built-up area reaching 10,500–11,000 sq ft. This is a proper large-family home — or a mixed-use building where one or two floors can be rented out.
The G+3 configuration is also the sweet spot for Indian urban zoning. In most municipal limits, Ground + 3 is the maximum residential FAR without special permissions. Book a consultation with an Ongrid architect to confirm FAR rules for your specific municipality before you begin.
Ground Floor Plan: Parking, Service and the West Entrance
The ground floor of a west-facing home has two jobs: receive guests well (the entrance faces the street) and buffer the afternoon heat (the west wall takes maximum solar exposure at this level).
Ground floor layout showing parking, living, kitchen, pooja room and service areas
Parking and Entry Zone (West/NW)
- Double car parking: 22×16 ft — accommodates two SUVs side by side
- Covered entrance porch: 12×8 ft with a weather canopy
- Entrance lobby: 10×8 ft leading to the staircase and living room
Living and Social Zone (West/Center)
- Drawing/Living room: 20×16 ft — positioned along the west wall with filtered afternoon light through deep chajjas and a shaded bay window
- Dining area: 14×12 ft — adjacent to the kitchen, connected to the living room through an open archway
Kitchen and Service Zone (SE Corner)
- Modular kitchen: 16×12 ft — placed in the southeast corner per Vastu, away from direct west exposure
- Utility/dry area: 10×8 ft with washing point and overhead storage
- Service toilet: 5×4 ft
Pooja and Guest Zone (NE Corner)
- Pooja room: 8×6 ft — anchored in the northeast corner, receiving gentle morning light from the east
- Guest bedroom: 14×12 ft — north side, stays cooler through the day
The ground floor is deliberately service-heavy. Parking, kitchen, and utilities occupy spaces that would otherwise suffer from thermal gain. The staircase runs along the south wall — a strategic thermal buffer. The living room is positioned to receive pleasant filtered light rather than harsh direct sun.
First Floor Plan: The Core Family Floor
The first floor is where the family actually lives. This is the heart of the 60x60 house plan.
First floor layout showing master suite, family lounge, secondary bedrooms and the west balcony
Master Suite (SW Corner)
- Master bedroom: 18×14 ft — southwest corner per Vastu, with attached bathroom (10×8 ft) and walk-in wardrobe zone (8×6 ft)
- The SW placement means thick, shaded walls on two sides — the most comfortable sleeping position in the home
- Sleeping orientation: head pointing south, as recommended in Vastu for SW bedrooms
Family Lounge (West/Center)
- Family TV lounge: 18×14 ft — opens directly onto the west-facing balcony
- West balcony: 14×6 ft — the 6-foot depth creates a shading overhang for the ground floor entrance below while giving your family a private sunset seating area
- This balcony becomes the home's daily social hub: morning newspapers, evening tea, sunset watching
Secondary Bedrooms (North and East Side)
- Bedroom 2: 14×12 ft — north side, quiet and thermally comfortable
- Bedroom 3: 14×12 ft — east side, morning light, ideal for elderly parents or older children
- East balcony: 10×5 ft — morning air and plant space
Bathrooms
- 2 shared bathrooms: 8×5 ft each — north and NW side placement
The first floor logic is simple: put bedrooms where the sun will not disturb sleep, put the lounge where the view is best.
Second Floor Plan: Teenagers, Guests and the Home Office
The second floor serves three distinct groups: growing children who want privacy, guests who stay longer than a weekend, and working adults who need a proper home office.
Second floor layout — three bedrooms, a dedicated home office, and separate balconies on both sides
Children's Zone (East/NE)
- Bedroom 4: 16×14 ft — east-facing windows for morning energy, space for two children or a teenager with a study nook
- Bedroom 5: 14×12 ft — north-facing, quiet study environment
Guest and Multipurpose Zone (South/SW)
- Bedroom 6: 14×12 ft — guest room with attached bath (8×5 ft), SW side for privacy
Home Office (NE Corner)
- Study/office: 14×12 ft — northeast corner receives consistent, glare-free natural light
- Ideal for video calls, focused work, or a quiet reading room
- Built-in bookshelf wall (12×1 ft) assumed in the design
Balconies and Bathrooms
- West balcony: 14×6 ft — repeats the first floor configuration, shades the level below
- East balcony: 10×5 ft — plants, fresh air, morning light
- 1 additional shared bathroom: 8×5 ft
The home office placement in the NE corner is deliberate. The northeast is the coolest, most stable zone of a west-facing home. If you work from home, this is the room you will use most.
Third Floor Plan: Sky-Level Entertainment and the Sunset Terrace
The third floor is where this design earns its climate-smart reputation. At this height, western exposure is maximum. But so is the reward.
Third floor layout — rental suite, entertainment hall, gym and the expansive sunset terrace
Rental or Senior Suite (SW Corner)
- Suite bedroom: 18×14 ft — can function as an independent unit for elderly parents or as a premium rental
- Attached bathroom: 10×8 ft
- Independent kitchenette: 12×8 ft — makes the suite self-sufficient
- Private west balcony: 14×6 ft — the suite's own sunset view
Entertainment Zone (Center/West)
- Entertainment hall: 24×18 ft — large enough for family gatherings, movie nights, or a home theatre setup
- Opens directly onto the main west terrace
- The high ceiling (10 ft minimum) and west opening make this the most dramatic room in the house
Wellness Zone (East/NE)
- Home gym or yoga studio: 14×12 ft — east-facing windows bring morning light into your workout
- Bathroom: 8×5 ft adjacent to gym
The Sunset Terrace (West)
- Open terrace: 22×10 ft — a dedicated outdoor living space with pergola structure
- Access to mumty (staircase head room) for maintenance
- Planters, seating zone, and a small water feature designed into the terrace edge
- At this height you are above most surrounding buildings — the terrace is usable 200+ days a year in most Indian cities
West-Facing Elevation: Where Architecture Meets the Afternoon Sun
A 60-foot-wide frontage is rare in Indian urban contexts. Having 60 feet of west-facing facade means you can create an elevation that reads as a genuine architectural statement.
The west elevation: deep balconies, horizontal fins, and a bold layered facade
Horizontal fins and chajjas: Every west-facing window carries a 2-ft chajja above it. First floor and above also get vertical aluminium fins on the sides. These reduce direct solar gain in summer (when the sun is high) while allowing winter afternoon warmth in.
Staggered balconies: The balconies do not stack directly above each other. Each 6-ft projection means the first floor balcony shades the ground floor entrance, the second shades the first, and so on. The entire west facade becomes self-shading — an architectural system, not just a visual feature.
Material and colour: The west wall uses light external plaster colours — ivory, off-white, or pale grey — to reflect rather than absorb solar radiation. Balcony railings use glass and steel, keeping the facade visually open without adding thermal mass.
Vertical green wall: One section of the west facade (approximately 10×15 ft) is designed as a trellis for climbing plants. The vegetation creates a living insulation layer and transforms the facade's visual character across seasons.
Explore more ideas in the 200 modern house elevation designs collection.
Vastu Guidelines for Your West-Facing 60x60 Home
Vastu for a west-facing home follows direction-specific rules. The following guidance is precise, not generic.
Vastu zone grid for a west-facing plot — each room placement mapped to its ideal zone
Main Entrance: Place the main door in the Varuna (WNW) or Pitra (W) pada of the west wall. Avoid the exact southwest corner. A door in the NW quadrant (Vayu zone) also works well and is associated with movement and positive energy flow.
Kitchen: Southeast corner is the most Vastu-compliant position — the Agni (fire) zone. The cook should face east while working. If SE is not possible, NW is the second choice. Never place the kitchen in the northeast or southwest.
Master Bedroom: Southwest corner, first floor — the Nairutya zone, associated with stability and head-of-household energy. Sleep with your head pointing south in this configuration.
Pooja Room: Northeast corner (Ishanya zone), ground floor. Keep no heavy storage above the pooja room. The northeast should remain light and open.
Staircase: South or southwest side. Steps should rise from east to west or north to south. Clockwise rotation when ascending. Never place a staircase in the NE corner — it blocks beneficial energies.
Toilets and Bathrooms: Northwest or southeast are acceptable placements. Avoid northeast and southwest for wet areas.
Children's Rooms: Northeast, north, or east side. These zones support study, learning, and creativity. The second floor NE placement in this plan directly supports this logic.
For a Vastu consultation specific to your plot, connect with an Ongrid architect through the consultation booking page.
Construction Cost Estimate for a 60x60 G+3 Home
A four-floor construction is a significant long-term investment. Here is a realistic cost breakdown for this 60x60 house plan with approximately 10,800 sq ft of built-up area.
Cost breakdown across structure, finishes, MEP services, and design fees
Construction Cost by Finish Tier
| Tier | Rate per Sq Ft | Total Estimated Cost |
|---|---|---|
| Tier 1 (Premium) | ₹2,000–₹3,500 | ₹2.16 Cr – ₹3.78 Cr |
| Tier 2 (Standard) | ₹1,500–₹2,500 | ₹1.62 Cr – ₹2.70 Cr |
| Tier 3 (Economy) | ₹1,200–₹2,000 | ₹1.30 Cr – ₹2.16 Cr |
Tier 1 includes: Marble or large-format vitrified flooring, modular kitchen with granite countertops, designer bathrooms, UPVC windows, concealed wiring, POP false ceilings, elevator provision, and premium external elevation finish.
Tier 2 includes: Good vitrified tile flooring, semi-modular kitchen, standard sanitary fittings, aluminium windows, concealed wiring, POP in living areas, textured external paint.
Tier 3 includes: Basic vitrified tiles, open kitchen with platform, standard bathroom fittings, powder-coated steel windows, surface wiring, cement paint on exteriors.
Additional Cost Items for West-Facing G+3 Homes
- Sunshade elements (chajjas and fins): ₹3–₹5 lakh for full facade shading
- Green wall or trellis structure: ₹2–₹4 lakh for a 150 sq ft vertical garden
- Home elevator (4-stop): ₹8–₹15 lakh
- Rainwater harvesting (5,000-litre sump): ₹1.5–₹2.5 lakh
- 3 kW rooftop solar panels: ₹2.5–₹3.5 lakh
Use the Ongrid home construction cost calculator for a location-specific estimate. Rates in Bangalore and Mumbai differ significantly from Lucknow or Indore.
Climate-Smart Features That Set This Design Apart
The climate angle of this design is not just about comfort. It is about long-term savings and daily livability.
The third-floor sunset terrace — designed for Indian evenings and multi-generational gatherings
1. Thermally Zoned Floor Plan Heat-tolerant spaces — garage, utility, stairs, toilets — take west and south exposure at ground level. Bedrooms and offices are placed on the east and north. This alone reduces your cooling load by 20–25%.
2. Deep Balcony Cascade Each 6-ft balcony shades the floor below it. By the third floor, the stacked shading means west-facing rooms on floors 1 and 2 receive no direct sun between 10 AM and 4 PM during summer peak months.
3. Natural Ventilation Stack The staircase acts as a thermal chimney. Warm air rises through the stairwell and exits through the ventilated mumty at roof level. This creates passive air movement throughout the home — especially effective on upper floors in the evenings.
4. East-to-West Cross Ventilation With balconies on both east and west faces, every floor has through-ventilation. Open the east balcony in the morning for cool fresh air. Open the west balcony in the evening for the breeze that follows sunset.
5. Roof Terrace Thermal Insulation The third floor terrace — planted with grass, ground cover, or a garden — reduces the thermal load on the entertainment hall ceiling below by up to 6°C. Even a planted pergola makes a measurable difference.
These are passive strategies. They require no electricity to function. In a home you will live in for 30+ years, they repay their design cost many times over.
Browse sustainable home design ideas for further reading on passive cooling and energy efficiency.
Frequently Asked Questions
Is a west-facing plot good for a home as per Vastu?
Yes, a west-facing plot is perfectly acceptable in Vastu Shastra. The main door should be placed in the Varuna (WNW) or Vayu (NW) pada of the west wall, not the southwest corner. The kitchen belongs in the southeast, master bedroom in the southwest, and pooja room in the northeast. West-facing homes are associated with Varuna, the deity of water — considered auspicious for prosperity and abundance when correctly designed.
How many bedrooms can a 60x60 4-floor house plan have?
This G+3 design comfortably accommodates 8 bedrooms — one guest bedroom on the ground floor, two bedrooms (including the master suite) on the first floor, three bedrooms on the second floor, and one full suite on the third floor. The third floor gym or the entertainment hall can also be converted into a ninth bedroom depending on your family's needs.
What is the construction cost for a G+3 house on a 60x60 plot?
With approximately 10,800 sq ft of built-up area, construction costs range from ₹1.30 Cr at economy finish to ₹3.78 Cr at premium finish. A standard Tier-2 finish — good tiles, semi-modular kitchen, aluminium windows, concealed wiring — comes to roughly ₹1.62 Cr to ₹2.70 Cr. These figures cover construction only and exclude plot cost, approval fees, and interior furnishing.
How do you manage afternoon heat in a west-facing G+3 home?
This design uses five passive strategies: deep 6-ft west balconies that shade the floor below, horizontal chajjas over every west-facing window, heat-tolerant spaces placed on the west ground level, east-to-west cross ventilation on every floor, and a roof terrace garden that insulates the slab below. Together these reduce peak summer indoor temperatures by 4–7°C without active cooling systems.
Can the third floor of this 60x60 G+3 design generate rental income?
Absolutely. The third floor is specifically designed for independent use. It has an 18×14 ft suite bedroom, an attached bathroom, a 12×8 ft kitchenette, its own west balcony, and direct staircase access. Depending on your city and neighbourhood, renting this floor as a 2-bedroom flat or premium studio can generate ₹25,000–₹60,000 per month — enough to service a significant portion of your home loan.
What approvals are needed for G+3 construction on a 60x60 plot?
You will need a building plan sanction from your local body (BBMP, GHMC, BDA, PCMC, or equivalent), structural drawings signed by a licensed structural engineer, a soil test report, and in most cities a fire NOC for buildings above 15 metres. Some municipalities also require environmental clearance for buildings above a certain FAR. Ongrid architects prepare building sanction drawings as part of the full design package. See the legal paperwork guide for step-by-step guidance.
How wide should the staircase be in a 60x60 4-floor house?
For comfortable daily use and Vastu compliance, a G+3 staircase should be at least 4 ft (1.2 m) wide. This design uses a 5-ft staircase placed along the south wall — step width of 10–11 inches, rise of 6.5–7 inches — which is usable for elderly family members and allows furniture to be moved between floors. The south placement also serves as a passive thermal buffer between the south wall and the interior living areas.
