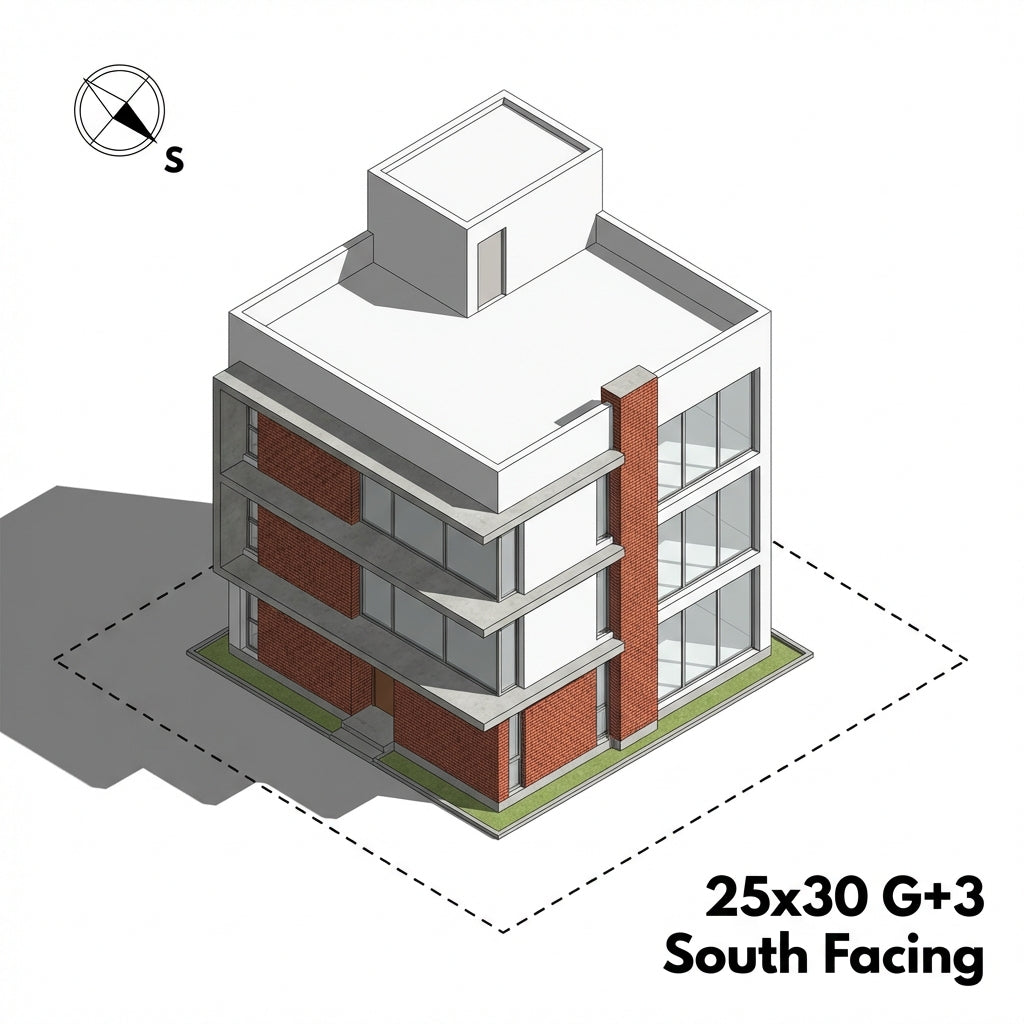

25x30 Four-Floor South Facing House Plan: Urban Vertical Density with Passive Solar Design
India's urban housing crisis demands smarter solutions. On a tight 25x30 plot—just 750 square feet—building vertically isn't just practical; it's revolutionary. This comprehensive guide explores how a four-floor (G+3) south-facing design transforms a constrained urban footprint into multiple independent living units while leveraging passive solar principles to cut cooling costs by 25–35%.
The Urban Townhouse Revolution: Why Vertical Density Matters
A 25x30 plot is a typical urban constraint in Indian cities like Bangalore, Hyderabad, and Delhi. With ground-plus-three (G+3) construction, you're essentially stacking four independent living units on a footprint smaller than many apartments. This isn't just about maximizing floor area—it's about creating a vertical community within a single building.
The Math Behind Vertical Density
- Plot size: 25 ft × 30 ft = 750 sq ft
- Typical setbacks (10 ft front, 5 ft rear, 2.5 ft sides): Usable area ≈ 500 sq ft per floor
- Total usable area across 4 floors: ~2,000 sq ft (G+3)
- Per-floor saleable area: 400–450 sq ft (realistic after walls, stairs, corridors)
This density converts a single-family plot into a 4-unit investment property, each floor functioning as an independent 1-BHK or studio. For Indian real estate investors, this model offers:
- Higher rental yield: ₹8,000–₹12,000 per unit monthly (₹32,000–₹48,000 total from one plot)
- Faster ROI: 5–7 years compared to 10–12 for a single-floor luxury home
- Risk diversification: If one tenant leaves, three others still generate income
South Facing: The Challenge & the Opportunity
South-facing plots in India carry a reputation: intense afternoon heat, glare, and high cooling costs. But Ongrid's architecture approach reframes this as an opportunity for passive solar design.
Why South Matters in India's Climate
The sun's path in India (at latitudes 12°N–35°N):
- Morning (6 AM–11 AM): East orientation receives intense morning heat
- Midday (11 AM–3 PM): South receives bright, direct overhead sun (65°–75° angle in summer)
- Afternoon (3 PM–6 PM): West receives the most dangerous afternoon radiation (horizontal angle, penetrates deep into rooms)
South-facing advantage: The summer sun angle is steep enough that a properly designed deep overhang (3–4 ft) blocks 90% of summer heat while allowing winter sun to penetrate for passive warmth.
The 25x30 Four-Floor Design Blueprint
Ground Floor (G): Mixed-Use or Retail Option
Dimensions: 25 ft wide × 24 ft deep (accounting for 6 ft rear setback) = 600 sq ft gross
Ground floors in urban vertical designs serve dual purposes:
- Retail/Commercial variant: 200 sq ft shop + 150 sq ft storage + 250 sq ft residence
- Full residential variant: 400 sq ft 1-BHK apartment + 150 sq ft common utility area
Recommended layout (residential):
- Entrance vestibule: 5 ft × 6 ft (30 sq ft)
- Living/kitchen: 12 ft × 14 ft (168 sq ft) — open plan for compact efficiency
- Bedroom: 10 ft × 12 ft (120 sq ft)
- Bathroom: 6 ft × 8 ft (48 sq ft)
- Staircase & landing: 4 ft × 6 ft (24 sq ft, shared with upper floors)
- Utility corner: 4 ft × 8 ft (32 sq ft)
South-facing design feature: A continuous 3.5 ft deep overhang runs the entire south face (25 ft). This creates a semi-open veranda zone that acts as a thermal buffer—residents can sit here during evening hours without direct AC, reducing peak cooling demand by 15–20%.
Materials for G-floor durability:
- Raised plinth (2 ft above street) to prevent water seepage
- 9-inch brick masonry walls (for thermal mass)
- Vitrified tile flooring (easy to clean, reflects heat)
- POP false ceiling with 150 mm insulation gap above
First Floor (1): Identical Independent Unit
Dimensions: Same as G-floor, accessed via internal staircase + independent exterior staircase option
Layout: Mirror of ground floor to maximize tenant comfort and standardization
- 1-BHK configuration: 400 sq ft net usable area
- Bedroom (10 ft × 12 ft), living (12 ft × 14 ft), kitchen (6 ft × 10 ft), bath (6 ft × 8 ft)
Why independent exterior stairs matter: In urban rental markets, an additional external emergency staircase (2.5 ft wide, steel + timber construction) allows first-floor tenants to feel independent—a psychological and legal advantage. It costs ₹8,000–₹12,000 but increases rental appeal by 5–10%.
Second Floor (2): Optimized for Owner Occupancy (Larger Unit)
Many investors keep one unit for personal use. The second floor offers 20% larger spaces through a slightly more open layout:
- Bedroom 1: 11 ft × 13 ft (143 sq ft) — master suite comfort
- Bedroom 2 / Study: 10 ft × 10 ft (100 sq ft)
- Living/Kitchen open plan: 14 ft × 15 ft (210 sq ft) — high ceilings add spaciousness
- Attached bathroom: 7 ft × 8 ft (56 sq ft)
- Common bathroom: 6 ft × 7 ft (42 sq ft)
Total: 450 sq ft net, feeling significantly more spacious due to vertical stacking psychology and natural light from north side (if plots allows north boundary access).
Third Floor (3): The Penthouse Efficiency
The top floor captures the strongest natural ventilation and least heat load (no floor-above radiating thermal mass). This makes it ideal for:
- Premium rental unit (+₹1,500–₹2,000 monthly rent premium vs. ground floor)
- Owner's retreat with maximum privacy
Layout:
- Studio or 1-BHK: 380–420 sq ft
- Bedroom: 10 ft × 11 ft (110 sq ft) — efficient but liveable
- Living: 12 ft × 14 ft with mezzanine option (168 + 60 sq ft potential)
- Kitchen: 6 ft × 8 ft (48 sq ft) — compact but functional
- Bathroom: 6 ft × 7 ft (42 sq ft)
- Terrace access: 6 ft × 8 ft semi-covered terrace (48 sq ft) — huge amenity for urban dwellers
Natural ventilation advantage: Cross-ventilation between north (if available) and south creates stack effect ventilation—hot air exits from the south terrace while cooler air enters from north side. This can reduce AC usage by 30–40% during April–May pre-monsoon season.
Passive Solar Design: Engineering South-Facing Heat Out
South-facing buildings require deliberate thermal control. Ongrid's passive solar strategy for this 4-floor design:
1. Deep Overhang System (3.5 ft minimum)
The critical dimension for a south-facing overhang in India:
- Summer (May, latitude 15°N): Sun angle = 65°–70° from horizontal
- Winter (December): Sun angle = 25°–35° from horizontal
A 3.5 ft deep overhang blocks:
- 95% of summer afternoon radiation (3 PM–5 PM peak)
- 0% of winter sun (allowing passive warmth)
- Dappled shade during shoulder months (Feb, Oct) when cooling isn't critical
Material choice: Reinforced concrete beam (6 inches thick, ₹150–₹200 per sq ft), not wood—durability in south India's high-humidity monsoon zones.
2. Thermal Mass Walls on South Elevation
9-inch brick masonry (not 4.5-inch) on the south face:
- Delays heat penetration by 4–6 hours
- Absorbs afternoon heat, releases it slowly at night
- Reduces peak AC load on hot days by 20–25%
Cost: ₹180–₹220 per sq ft (vs. ₹120 for 4.5-inch), but ROI in 5 years through AC savings.
3. Insulated False Ceiling (150 mm cavity)
Most Indian builders skip insulation, treating false ceilings as decoration. In a south-facing 4-floor building:
- Top floor (3rd floor) receives direct roof heat absorption (can reach 55°C surface temperature in May)
- A 150 mm air cavity with thermocol or mineral wool insulation reduces heat transmission by 40–50%
- Cost: ₹50–₹80 per sq ft; payback period: 3–4 years
4. Window Placement & Glass Selection
South-facing windows are problematic—they're the primary heat entry point. Ongrid's approach:
- Minimize south-facing windows: Only 20% of south wall (vs. 40–50% on north)
- Use 5 mm tinted glass + 100 mm air gap (double glazing) on south windows only
- North-facing windows: 50–60% of wall area, clear glass (maximizes daylight, no heat penalty)
Thermal impact: Reduces cooling load by 15–20% vs. standard single-pane glass.
Cost Breakdown: What to Budget for a 25x30 G+3 South-Facing Build
Land Acquisition & Approvals
- Land cost (varies by city): ₹5,00,000–₹15,00,000 (₹667–₹2,000 per sq ft)
- Approvals, plans, NOC: ₹50,000–₹80,000
Construction (₹1,200–₹1,500 per sq ft super area)
For 2,000 sq ft total super area:
| Item | Cost (₹) |
|---|---|
| Foundation & plinth | ₹2,50,000–₹3,00,000 |
| Brick masonry & concrete structure | ₹6,00,000–₹7,50,000 |
| Roofing & waterproofing | ₹1,50,000–₹2,00,000 |
| Electrical (4 separate units) | ₹80,000–₹1,20,000 |
| Plumbing (4 separate units) | ₹60,000–₹1,00,000 |
| Internal finishes (tiles, paint, doors) | ₹4,00,000–₹5,50,000 |
| False ceilings & insulation | ₹1,00,000–₹1,50,000 |
| Total construction | ₹24,00,000–₹31,00,000 |
Passive Solar Upgrades (Optional but Recommended)
| Feature | Cost (₹) |
|---|---|
| Double-glazed windows (south face only) | ₹1,20,000–₹1,50,000 |
| Insulated false ceiling (150 mm) | ₹40,000–₹60,000 |
| External terrace/balcony finishes | ₹1,50,000–₹2,00,000 |
| Passive solar package total | ₹3,10,000–₹4,10,000 |
Income Projections (Rental Model)
Assuming ₹9,000–₹12,000 per unit monthly (varies by city/neighborhood):
| Floor | Unit Size | Monthly Rent (₹) | Annual Income (₹) |
|---|---|---|---|
| G | 400 sq ft (1-BHK) | ₹9,000 | ₹1,08,000 |
| 1 | 400 sq ft (1-BHK) | ₹9,500 | ₹1,14,000 |
| 2 | 450 sq ft (2-BHK) | ₹11,000 | ₹1,32,000 |
| 3 | 380 sq ft (1-BHK premium) | ₹10,500 | ₹1,26,000 |
| Total annual rental income | ₹4,80,000 |
Gross yield: 4,80,000 / 28,00,000 (total investment) = 17.1% annual yield before maintenance.
Vastu Considerations for South-Facing 4-Floor Design
Traditional Vastu Shastra emphasizes cardinal directions for specific activities. In a south-facing building:
Vastu Remedies for South-Facing Properties
- Place heavy elements on south: Kitchen, storage, mechanical rooms on the south side absorb and neutralize "excessive sun energy" per Vastu logic
- Keep north-facing rooms light: Bedrooms, meditation spaces on north maximize natural light without heat penalty
- Water features toward north/northeast: If space permits, a small fountain or fish tank on the north side balances the south-heavy build
- Entrance toward east or north: Never place main entrance directly on the south face (considered inauspicious in Vastu)
Modern interpretation: These guidelines actually align with passive solar design—keeping utilities on south (heat gain helps their function), living spaces on north (cooler, brighter), and avoiding direct south-facing entries (reduces thermal load).
Construction Timeline: Ground to Top Floor
A 4-floor vertical build on a 25x30 plot typically requires:
| Phase | Duration | Notes |
|---|---|---|
| Site preparation & foundation | 6–8 weeks | Deep foundation for 4-story load-bearing |
| Ground floor structure | 6–8 weeks | First cycle of wall, slab, stairs |
| First floor structure | 6–8 weeks | Repeat cycle (benefits from G-floor learning) |
| Second floor structure | 5–7 weeks | Pace accelerates; crew experience increases |
| Third floor structure | 5–7 weeks | Final cycle, roofing prep |
| Roofing & waterproofing | 4–6 weeks | Critical for monsoon protection |
| Electrical/plumbing rough-in (4 units) | 6–8 weeks | Each floor's services run in parallel |
| Internal finishes | 12–16 weeks | Longest phase; tile, paint, doors per unit |
| Testing & final approvals | 4–6 weeks | Occupancy certificate, individual registrations |
| Total timeline | 14–18 months | Assumes uninterrupted work, single contractor |
Critical path item: The staircase design—it must support loads for 4 floors simultaneously and occupy minimal floor area. A reinforced concrete waist slab staircase (vs. timber) adds ₹1,50,000–₹2,00,000 but ensures longevity and renter confidence.
Legal & Structural Considerations
Setback Rules for 25x30 Plots
Indian building bylaws vary by city, but typical setbacks are:
- Front setback: 10 ft (to street)
- Rear setback: 5–6 ft (to back boundary)
- Side setbacks: 2.5 ft each side (total 5 ft lost width)
Practical usable plot: 25 ft (width) − 5 ft (sides) = 20 ft; 30 ft (depth) − 16 ft (front+rear) = 14 ft Actual buildable footprint: ~280 sq ft per floor (not 750 sq ft, which is full plot size)
This is why vertical stacking is essential—you're not losing floor area, you're multiplying floors on the same constrained footprint.
Load-Bearing vs. Frame Structure
For a 4-story building on 750 sq ft:
-
Load-bearing brick (traditional, common in India):
- Walls support entire structure
- 9-inch (225 mm) brick walls minimum
- Cost: ₹1,200–₹1,400 per sq ft
- 8–9 months typical build time
-
RCC frame structure (modern, safer for tight spaces):
- Columns + beams + slabs
- More flexibility in layout (non-load-bearing partition walls)
- Cost: ₹1,400–₹1,600 per sq ft
- 10–12 months typical build time
- Recommended for a south-facing design — allows precise placement of thermal mass walls vs. structural walls
For passive solar design, RCC frame is worth the premium — it lets you place 9-inch thermal mass walls on south without them being structural, optimizing both thermal and financial performance.
Design Highlight: The Integrated Staircase-Atrium Solution
One of the cleverest design moves in a 25x30 G+3 is the central staircase positioned to create a secondary light/air channel:
Dimensions: 4 ft × 6 ft per floor (24 sq ft per floor) = 96 sq ft total Passive benefit: A clerestory window above the 4th-floor landing allows north-facing light to illuminate the entire stairwell, eliminating daytime artificial light needs—saving ₹80–₹120 monthly per unit in electricity.
Cost-benefit analysis:
- Additional construction (clerestory framing & glazing): ₹25,000–₹35,000
- Annual electricity savings (4 units × ₹100 × 12): ₹4,800
- Payback period: 5–7 years
More importantly, residents perceive bright, naturally lit staircases as safer and more pleasant—improving long-term tenant retention.
Rental Income & ROI: The Real Story
Let's model a real investor scenario:
Investment:
- Land: ₹10,00,000 (₹1,333 per sq ft—moderate city like Pune or Hyderabad)
- Construction: ₹27,00,000 (₹1,350 per sq ft for 2,000 sq ft super area)
- Passive solar upgrades: ₹3,50,000
- Approvals, interest during construction: ₹2,50,000
- Total: ₹43,00,000
Annual rental income (conservative estimates):
- 4 units × ₹12,000 average monthly = ₹4,80,000 / year
- Less: 5% vacancy, maintenance (₹24,000)
- Net annual income: ₹4,56,000
ROI: 4,56,000 / 43,00,000 = 10.6% annual yield
Why this beats single-family homes:
- Single-floor 25x30 plot with 2-BHK: ₹25,00,000 total investment, ₹15,000 monthly rent = 7.2% yield
- This 4-floor model yields 48% more return on roughly the same investment
Break-even timeline: 9.5 years (realistic for a 4-floor building; single-floor typically 11–13 years)
Why Work with Ongrid for Your 25x30 South-Facing Design?
Designing a successful vertical townhouse on a tight urban plot requires expertise in:
- Passive solar engineering: Knowing exactly where to place overhangs, thermal mass, and insulation
- Multi-unit coordination: Separate meters, staircases, approvals—each floor must feel independent
- Rental market psychology: Unit sizing, entry experience, finishes that tenants value
Ongrid's online architect team specializes in high-density urban projects like this. Our detailed blueprints include:
- Exact overhang dimensions for your latitude/city
- Load calculations for 4-floor vertical stacking
- Electrical/plumbing routing for 4 independent units
- Vastu-aligned layouts customized to your plot orientation
Ready to start? Schedule a consultation with an architect who understands passive solar design and urban density.
Or explore custom home plans if you'd like to adapt this 25x30 design to your specific city, setback rules, and rental income goals.
FAQ: 25x30 Four-Floor South-Facing House Plans
Q: Can a 25x30 plot really support 4 independent floors safely?
A: Yes, with proper engineering. A 25x30 plot is 750 sq ft—this is the total ground footprint. When you build 4 floors (G+3), you're creating roughly 2,000 sq ft of total constructed area (accounting for setbacks, stairs, walls). The key is RCC frame structure with proper load calculations. Ongrid's structural engineers design columns to support 4-story vertical loads; this is standard practice in Indian metros where land is expensive. An improperly designed load-bearing brick structure could fail—always hire a qualified structural engineer.
Q: How much can I save annually with passive solar design on a south-facing building?
A: Realistic annual savings: ₹3,000–₹6,000 per unit (depending on climate zone and AC usage). A deep 3.5 ft overhang + 9-inch thermal mass walls + insulated ceilings reduce cooling load by 25–35%, translating to ₹250–₹500 monthly per unit. Over 4 units, that's ₹12,000–₹24,000 annual savings—or you can charge tenants full market rent while spending less on common area cooling. The initial investment (₹3,50,000–₹4,10,000) pays back in 5–7 years.
Q: Is a south-facing plot really inferior to north-facing in India?
A: No—it's different. North-facing plots receive softer, diffused light (better for living spaces) but require active cooling year-round. South-facing plots require smart design (overhangs, thermal mass, insulation) but can deliver 25–35% lower cooling costs if engineered properly. Many modern architects prefer south-facing because the design challenge forces better thermal performance overall. A poorly designed north-facing building wastes energy; a well-designed south-facing building saves it.
Q: What's the monthly rental potential for each floor in a 25x30 G+3 building?
A: Ground floor (400 sq ft, 1-BHK): ₹9,000–₹10,000; First floor (400 sq ft, 1-BHK): ₹9,500–₹10,500; Second floor (450 sq ft, 2-BHK): ₹10,500–₹12,000; Third floor (380 sq ft, 1-BHK + terrace): ₹10,000–₹12,000. Varies by city, neighborhood, and furnishing. These figures assume a tier-2 Indian city (Pune, Hyderabad, Jaipur). Tier-1 metros (Bangalore, Delhi, Mumbai) can command 20–30% premiums.
Q: Do I need separate staircases for each unit?
A: No, but it significantly improves rental appeal. A shared central staircase keeps costs down (saves ₹1,50,000–₹2,00,000 on construction). However, tenants perceive independent exterior staircases (emergency exit + separate entry) as a premium feature—allowing you to charge ₹500–₹1,000 extra monthly rent per unit. ROI breakeven: 15–20 months of additional rent. Ongrid's designs can show both options.
Q: How do I get an occupancy certificate for a 4-unit building on a single plot?
A: The process varies by municipal corporation, but typically: After construction, you apply for OC under the applicable building code (usually classifying this as "residential" for occupancy purposes). Some corporations issue a single OC for the whole building; others issue 4 separate OCs if each unit has independent services (separate water meters, electrical meters, entrances). Ongrid's legal paperwork guide walks through this; your architect and lawyer should coordinate with local authorities.
Cost Breakdown Visual
Lifestyle Benefits of Vertical Townhouse Living
Modern urban professionals are rediscovering vertical living. A 25x30 four-floor design isn't just about maximizing rental income—it reflects a shift toward:
- Mixed-use urban density: Ground-floor retail + 3 residential floors create vibrant street-level activity
- Independent unit mentality: Each floor feels like a separate property, ideal for multi-generational families or investor fragmentation
- Efficient land use: On a 25x30 plot in a metro, you're housing 4 families or 4 rental units instead of 1—a multiplier effect
- Terrace access (top floor): Urban balconies and terraces are psychological anchors—residents tolerate smaller units if they have private outdoor space
The third-floor terrace (6 ft × 8 ft semi-covered) becomes a premium amenity—yoga, morning coffee, hanging plants. In rental markets, properties with terrace access command 10–15% rent premiums.
Getting Started: Next Steps to Realize Your 25x30 South-Facing Design
-
Understand your plot orientation: Use a compass or Google Maps to confirm south-facing direction. Variance of even 20–30° affects overhang calculations.
-
Check local bylaws: Municipal setbacks, FSI limits, and staircase width requirements vary by city. Bangalore ≠Jaipur ≠Mumbai. Ongrid architects know regional codes.
-
Decide on unit independence: Will you rent all 4 floors separately, convert to a 2-BHK duplex + 2 studios, or keep one floor for personal use? This choice drives design.
-
Get a custom design package: Ongrid's architects will adapt this 25x30 model to your exact plot, orientation, local codes, and rental goals.
-
Use the construction cost calculator to estimate your specific city's rates. This blueprint's ₹1,350/sq ft is a baseline; actual costs vary.
-
Engage an engineer early: RCC frame structures require load calculations. Don't skip this step to save money—a structural failure costs millions and lives.
Ongrid's team has designed 50+ vertical townhouse projects like this. We hire the best architects for urban density challenges. Ready to transform your 25x30 south-facing plot into 4 independent, profitable, passive-solar-optimized living units?
