40x50 House Plan | 4 Floor North Facing Design
A 40×50 north-facing G+3 — four-floor vertical living with solar arbitrage built in
Here is something most homeowners misunderstand about north-facing plots: "north-facing" does not mean less sunlight. It means your entry door faces north while every room behind it faces south. In Indian latitudes, south-facing rooms receive direct sun from 9 AM to 4 PM through winter — and filtered, non-glaring light all year. This 40×50 house plan 4 floor north facing design converts that orientation geometry into a structural advantage stacked across all four levels. You get a Vastu-compliant entry, sun-filled interiors, and naturally cooler north-side rooms — in the same plan.
Ongrid's COA-certified architects designed this G+3 for a 2,000 sq ft north-facing plot. Total built-up area: approximately 5,500 sq ft across four floors. The layout supports joint family living, owner-plus-rental use, or a full investment configuration with three independent rental units.
Why a North-Facing Plot Works Harder on a G+3
North-facing plots are the most sought-after in urban India — not just because of Vastu, but because of practical solar geometry.
South-facing rooms on every floor receive direct winter sun 9 AM–4 PM — the north-entry, south-light advantage
When you stack G+3 on a north-facing plot, every primary room on each floor orients south. In India, the sun tracks east to west through the southern sky. South-facing windows catch direct light in winter when the sun angle is low — that light penetrates deep into rooms. In summer, the sun climbs higher. The slab overhang above each window naturally blocks excess heat gain.
On a four-floor build specifically, three advantages compound:
- No inter-floor shadowing. Each floor's south face is clear of the slab above — every level gets equal light access.
- Upper-floor balconies shade lower floors in summer while allowing low-angle winter sun underneath the overhang.
- North-side rooms stay inherently cooler — the rear rooms that face south get light; the front rooms that face north get ventilation without heat load.
This is what Ongrid calls the north-entry solar arbitrage: a north-facing 40×50 plot gives you Vastu-compliant orientation and passive solar comfort in the same unmodified layout, without trading one off against the other. For context on Indian house plan orientations, see the 10 styles of Indian house plan guide.
Plot Configuration and Key Numbers
| Parameter | Detail |
|---|---|
| Plot dimensions | 40 ft × 50 ft |
| Plot area | 2,000 sq ft |
| Floors | Ground + 3 upper (G+3) |
| Facing | North |
| Typical setbacks | Front 5 ft, rear 3 ft, sides 2.5 ft each |
| Usable footprint per floor | ~1,380–1,400 sq ft |
| Total built-up area | ~5,400–5,600 sq ft |
| Parking | 1 car + 2 bikes (ground level) |
| Staircase | 1 central RCC dog-leg, 3 ft tread width |
With a 40-foot frontage, the north face presents a clean, proportioned facade. The 50-foot depth allows a double-loaded layout — rooms on both the north and south sides of a central passage — without either side feeling narrow or lacking light.
Check your local FAR/FSI entitlement before finalising floor count. Most Tier-1 cities permit 2.0–2.5 FAR on residential plots, which supports this G+3 build comfortably. The beginners' guide to legal paperwork on Ongrid walks through FAR verification and approval requirements.
Ground Floor Plan — Entry, Parking, and the Anchor Unit
The ground floor carries two responsibilities: it is the main entry for the entire building, and it functions as a self-contained living unit for elderly family or as a rentable 1BHK.
Ground floor: north entry porch, covered parking NW, pooja NE, kitchen SE — Vastu alignment without compromise
Ground floor room schedule:
- Entry porch / verandah: 6×9 ft — covered, recessed from north boundary
- Car parking: 9×18 ft — single car with full manoeuvring clearance
- Pooja room: 6×7 ft — northeast corner, the Ishanya zone
- Living room: 14×16 ft — south-facing, direct light from morning to afternoon
- Dining area: 10×12 ft — between kitchen and living, natural circulation path
- Kitchen: 10×12 ft — southeast corner (Agneya zone, Vastu's fire element)
- Bedroom 1: 12×12 ft — ground-floor bedroom for parents or live-in guests
- Attached bathroom: 8×9 ft
- Common toilet: 5×7 ft — near entry for visitors
- Staircase: central placement, 3 ft tread width
The ground-floor bedroom at 12×12 ft fits a queen bed, wardrobe, and a side table without crowding. Senior family members who find stair climbing difficult live on this level independently. If you are a pure investor, the ground floor rents as a compact 1BHK.
Vastu Placement on a North-Facing G+3
North-facing plots are governed by Kuber — Vastu's deity of wealth and prosperity — making them the most auspicious starting orientation for any residential build. Here's how each Vastu zone maps across this plan:
Vastu zones on a 40×50 north-facing plot — north-northeast entry, NE pooja, SE kitchen, SW master, NW parking
- Main door: North or NNE — the plot's natural front face, zero compromise
- Pooja room: NE (Ishanya zone) — highest spiritual purity in Vastu
- Kitchen: SE (Agneya zone) — fire element placement, correct for cooking
- Master bedroom: SW (Nairrutya zone) — stability and grounding on each floor
- Parking: NW (Vayavya zone) — movement and vehicles belong here
- Staircase: South or SW quadrant — keeps the sacred NE zone clear
On a north-facing plot, every one of these placements falls from the geometry naturally. You do not need to rearrange rooms or make unusual compromises to satisfy Vastu — the orientation does the alignment work for you.
First Floor Plan — Primary Family Living
The first floor is the main family level: master suite, two secondary bedrooms, and a family lounge that shapes the home's day-to-day character.
First floor: master suite SW, family lounge north with street view, south-facing bedrooms with direct light
First floor room schedule:
- Master bedroom: 14×16 ft — SW position per Vastu, with attached 9×9 ft bathroom and wardrobe alcove
- Bedroom 2: 12×13 ft — attached bathroom, suitable for older child or in-law
- Bedroom 3: 11×12 ft — south-facing, shared bathroom access
- Common bathroom: 6×8 ft
- Family lounge: 12×14 ft — north-facing, overlooking the street with morning light
- North balcony: 6×12 ft — covered, usable as a morning sit-out or morning tea spot
- Landing and passage: 4×8 ft
The 14×16 ft master bedroom fits a king bed, two side tables, a full wardrobe, and a small reading chair comfortably. The attached bathroom at 9×9 ft accommodates a double vanity, a separate shower cubicle, and a western WC — a genuine luxury at this plot size.
Light and Ventilation on Floor 1
South-facing rooms — the master bedroom and Bedroom 3 — receive direct winter sunlight from around 9 AM to 4 PM. The slab overhang from the floor above limits summer heat penetration to early morning hours when the sun angle is still low.
The north-facing balcony creates a cross-ventilation path. In summer, southwest monsoon winds enter through south-facing windows and exit through the north opening. In winter, north-northeast breezes ventilate rooms without mechanical assistance. This is passive comfort that requires no running cost.
Second Floor Plan — Flexible Family or Rental 3BHK
The second floor mirrors the first in footprint but is configured for independence: it works as an extended family floor or as a standalone 3BHK rental unit with its own kitchen and entrance.
Second floor: independent 3BHK with south balcony, SE kitchen, and staircase-landing door for full privacy
Second floor room schedule:
- Master bedroom: 14×16 ft — attached 9×9 ft bathroom
- Bedroom 2: 12×13 ft — attached bathroom
- Bedroom 3: 11×12 ft — south-facing with natural light
- Kitchen: 10×12 ft — SE zone, fully independent from the ground unit
- Living and dining: 14×18 ft combined — south-facing with balcony access
- South balcony: 5×10 ft — afternoon sun, usable for informal outdoor dining
- Common bathroom: 6×8 ft
- Lockable door at staircase landing — complete privacy from other floors
On rental yield: A second-floor 3BHK with independent kitchen and living in a Tier-1 city — Bengaluru, Hyderabad, or Pune — commands ₹35,000–₹55,000 per month. At a Tier-2 construction cost of approximately ₹80–₹90 lakh for this floor alone, the gross annual yield reaches 4.5–6.5%. That outperforms most residential fixed deposits.
The lockable staircase landing door is an important detail. It allows the second floor to function as a fully private unit without a separate external staircase — simplifying construction and keeping the building looking like a single family home from the street.
Third Floor Plan — Penthouse Suite or Premium Studio
The third floor is this 40×50 house plan 4 floor north facing design's headline space. With direct terrace access, it can become the home's most aspirational and highest-yielding level.
Third floor: 16×18 ft studio with south-facing terrace access — rooftop garden faces south for full sun
Third floor room schedule:
- Studio/master suite: 16×18 ft — the largest room in the building, with corner views east and south
- Kitchenette: 8×10 ft — open to the living area
- Bathroom: 8×9 ft — premium fittings, large-format tiles
- Work-from-home room: 10×11 ft — north-facing with glare-free diffused light, ideal for screens
- Open terrace: ~380–420 sq ft — south-facing inner edge, full sun from morning to afternoon
- Utility room: 8×10 ft — washing machine space, water tank access, drying area
The 10×11 ft work-from-home room deserves particular attention. It faces north — which, on a north-facing plot, means it gets bright, consistent, indirect light all day. No screen glare, no afternoon heat, no curtains needed. For anyone who spends long hours at a computer, this is the best room in the house for productivity.
The South-Facing Rooftop Is a Hidden Asset
On a north-facing plot, the rooftop terrace's inner edge faces south. This means your open terrace receives full sun — the opposite of what most people expect.
South-facing rooftop terrace: full sun for a kitchen garden, solar panels, or a pergola entertaining deck
You can grow vegetables, install a 2–3 kW rooftop solar array, or create a pergola deck for outdoor entertaining — all with afternoon sunlight and without west-facing glare. In urban markets, a third-floor studio with private terrace access rents for ₹20,000–₹40,000 per month. Young professionals and couples pay a significant premium for private outdoor space. It is nearly impossible to find in apartment complexes, which makes standalone-plot terrace studios a rare and high-demand rental product.
Construction Cost — What a 40×50 G+3 Costs in 2026
Total built-up area for this plan: approximately 5,500 sq ft across all four floors, including walls, staircase, utility areas, and balconies. Construction cost varies significantly by specification level.
Three-tier cost breakdown for a 40×50 G+3 build — structure, finishing, plumbing, and electrical
Tier 1 — Premium Specification (₹2,000–₹3,500/sq ft)
Includes: RCC framed structure, anti-skid vitrified tiles (60×120 cm), modular kitchen with soft-close fittings, designer bathrooms, concealed electrical with MCB distribution board, and home automation rough-in.
Estimated total: ₹1.10–₹1.93 crore
Best for: owner-occupied premium homes, Tier-1 city rentals targeting high-income professionals.
Tier 2 — Mid-Range Specification (₹1,500–₹2,500/sq ft)
Includes: Good-quality vitrified tiles (60×60 cm), semi-modular kitchen, branded sanitary fittings (Cera or Hindware), and standard concealed electrical.
Estimated total: ₹82 lakh–₹1.37 crore
Best for: joint family homes, owner-plus-rental configurations, and most urban self-construction projects.
Tier 3 — Functional Specification (₹1,200–₹2,000/sq ft)
Includes: Ceramic floor tiles, basic granite kitchen slab, economy-range sanitary fittings, and standard surface wiring with conduit.
Estimated total: ₹66 lakh–₹1.10 crore
Best for: pure rental investment, phased construction where upper floors are finished over time.
Use Ongrid's home construction cost calculator to input your city, floor count, and finish level for a more precise project estimate. All figures cover structure, finishing, plumbing, and electrical. They exclude land cost, architect and structural engineer fees, local authority approval charges, and compound wall.

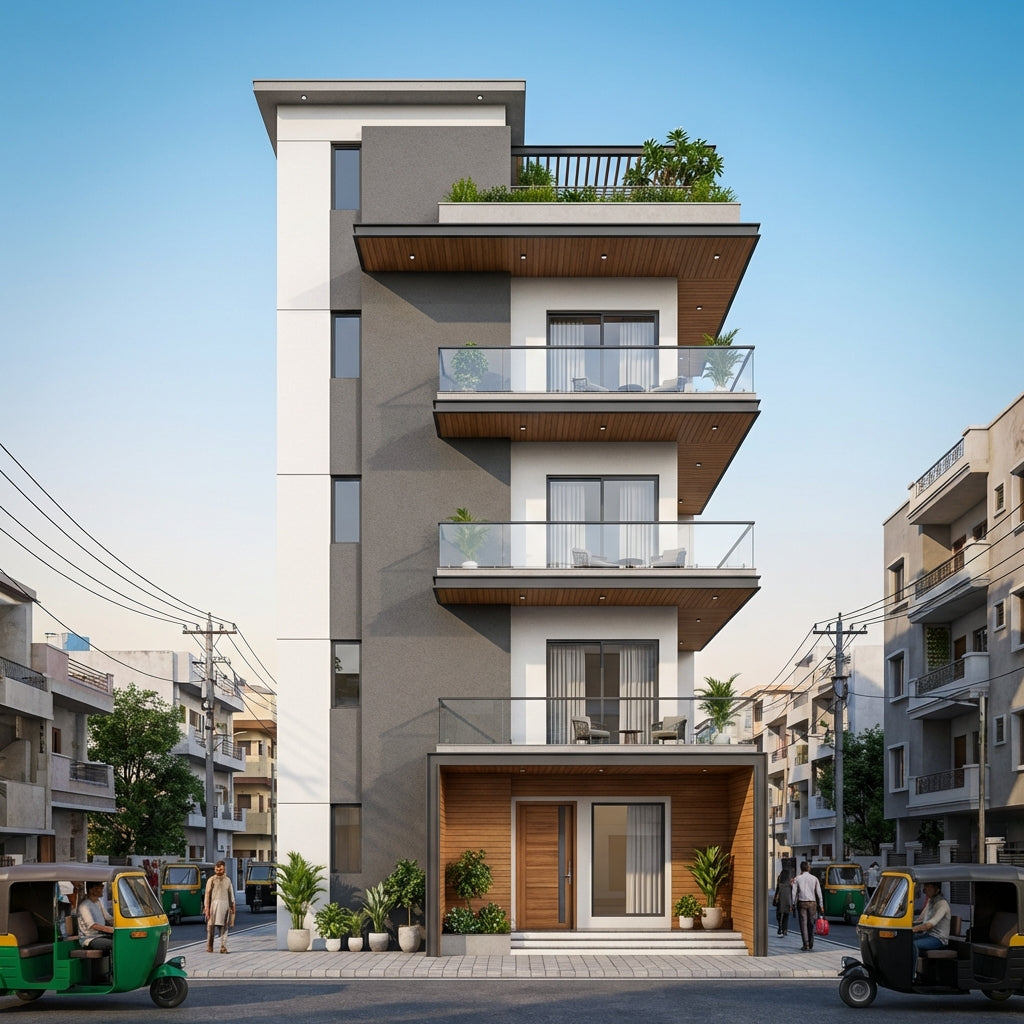

Elevation Design — Making a G+3 Look Proportionate
A four-floor building on a 40-foot north-facing frontage presents a specific design challenge: the street face is roughly 40 ft wide and 42–46 ft tall. Without careful composition, it reads as tall and narrow.
Contemporary elevation for a 40×50 north-facing G+3 — vertical fins, recessed entry, staggered balconies create depth and rhythm
Ongrid's approach for this configuration:
- Vertical fins or louvred screens on the north face break the monotony of a flat 40-foot facade and give the building visual texture
- Recessed entry porch creates depth at ground level and frames the main door as a focal point
- Staggered north-facing balconies — each floor's balcony offset slightly from the one below — give the facade rhythm without crowding
- Terrace parapet with a clean horizontal cap line finishes the vertical composition and makes the roofline look intentional
Style options include: contemporary flat-roof with exposed concrete and glass railing, Indo-modern with stone cladding accents on the lower floors, or transitional with a combination of smooth render and exposed brick panels. For visual reference, browse Ongrid's three-storey home designs and 200 modern house elevation designs — many of these translate directly to four-floor configurations on 40-foot frontages.
Structural Requirements for a 4-Floor RCC Build
A G+3 on a 40×50 plot needs deliberate structural engineering. Here are the key specifications Ongrid's structural team applies:
- Foundation: Isolated RCC footings with tie beams, sized for combined four-floor dead and live loads
- Column grid: 4×4 metre centres across the footprint — avoids columns landing in awkward mid-room positions
- Slab thickness: 150 mm for all intermediate floors, 125 mm for the terrace slab
- Beam depth: 450–550 mm for main spans, 300 mm for secondary beams
- Shear walls: Strongly recommended in seismic zones III and IV — adds approximately 8–10% to structural cost but is critical for safety
- Staircase: RCC dog-leg, 1 metre tread width, 190 mm rise — comfortable for elderly family members climbing multiple floors
If your plot is in Bengaluru, Hyderabad, Delhi NCR, Mumbai, Pune, or any other seismic zone III/IV location, IS:1893-compliant earthquake-resistant detailing is non-negotiable on a four-floor building. Raise this explicitly with your structural engineer before the foundation is laid. The home building guide on Ongrid covers structural design, contractor selection, and stage-by-stage construction supervision in detail.
Planning Your 40×50 G+3 with Ongrid
Ongrid provides COA-certified architecture services for residential projects online across India. For a 40×50 G+3, the engagement typically covers:
- Site and orientation analysis — Vastu review, setback verification, local FAR/FSI confirmation
- Floor plan design — all four floors with room dimensions, area statements, and staircase placement
- 3D elevation design — two concept options for the north-facing front elevation
- Structural drawings — column layout, foundation plan, RCC slab and beam detailing
- MEP drawings — plumbing, electrical, and sanitation layouts for all floors
- Municipal approval drawings — formatted to local authority requirements
For this 40×50 house plan 4 floor north facing project, start with an architect consultation to confirm your plot's FAR entitlement and municipal approval requirements. If you are ready to move into design, the HomeBluprints Advance Plus service is built specifically for G+3 homes on urban plots and includes all drawing sets.
You can also explore custom home plans, browse the complete plan set collection, or check Ongrid's pricing page to understand service options and costs before you begin.
Frequently Asked Questions
Is a north-facing plot actually better for a 4-floor house?
Yes, for two distinct reasons. First, Vastu classifies north-facing as the most auspicious orientation — governed by Kuber, deity of wealth. Second, and more practically, a north-facing entry means every primary room behind it faces south. In Indian latitudes, south-facing rooms receive direct winter sunlight from morning to mid-afternoon, giving you well-lit, thermally comfortable interiors across all four floors without any west-afternoon glare.
How much built-up area can I get from a 40×50 G+3?
A 40×50 plot with standard urban setbacks leaves approximately 1,380–1,400 sq ft of usable footprint per floor. Across four floors, that adds up to roughly 5,400–5,600 sq ft of total built-up area — enough for a full 3BHK or 4BHK unit on each level. Check your local FAR/FSI: most Tier-1 cities permit 2.0–2.5 FAR on residential plots, which supports this G+3 build.
What does it cost to build a 4-floor house on a 40×50 plot in 2026?
Construction costs range from approximately ₹66 lakh at basic Tier-3 specification to ₹1.93 crore at premium Tier-1 specification. Mid-range Tier-2 construction typically costs ₹82 lakh–₹1.37 crore for 5,500 sq ft built-up area. These figures cover structure, finishing, plumbing, and electrical — not land, architect fees, or approval charges. Use Ongrid's construction cost calculator for a city-specific number.
How many independent rental units can I create in a 40×50 G+3?
Realistically, three to four units: a ground-floor 1BHK or 2BHK for elderly parents or rental, a first-floor 3BHK for owner occupation, a second-floor 3BHK as a separate rental, and a third-floor studio with private terrace access as a premium rental. Each floor gets its own kitchen, bathroom set, and a lockable door at the staircase landing. In Tier-1 cities, combined rental income from non-owner floors can reach ₹70,000–₹1,20,000 per month.
What are the Vastu rules specific to a north-facing 4-floor house?
For a north-facing plan: main door on the north or NNE face, pooja room in the NE corner, kitchen in the SE zone on every floor where cooking happens, master bedrooms in the SW quadrant, and the staircase in the south or SW area. These placements align naturally with north-facing geometry — the plot orientation does the Vastu alignment work without requiring any unusual room compromises.
Can I phase construction on a 40×50 G+3 to spread the cost?
Yes, and many homeowners do. Build the complete RCC structural frame for all four floors in one phase — this is structurally sound and avoids retrofitting columns later. Finish the ground and first floors for occupation first. Complete upper floors in subsequent phases as funds allow. The critical step is ensuring the structural drawings account for all four floors from the start, so the foundation and columns are sized correctly before the first pour.
What is the best use for each floor in a 40×50 north-facing G+3?
A practical and common configuration: Ground floor — car parking plus 1BHK for elderly parents or as a rentable unit. First floor — main family living with a master suite, two bedrooms, and family lounge. Second floor — independent 3BHK configured for rental or extended family with a separate kitchen. Third floor — premium studio apartment with private terrace access, either rented at a premium or used as a home office or penthouse suite.
